The Buddy Holly Hall of Performing Arts and Science in Lubbock, Texas is a 220,000 square foot state-of-the-art campus featuring two theaters, event space, a full-service bistro and a ballet academy under one roof. Albina bent various materials for the signature spiral staircase in the Christine DeVitt Lobby. See LINK IN OUR BIO to get a sneak peek inside!
TS 16" X 8" X .625" WALL A500 GR C 16 pcs: Spiral bend the easy way Bent down to a 7 ft plan view radius.
TS 10" X 6" X .625" WALL A500 GR C 10 pcs: Spiral bend the hard way Bend down to a 14' 11" plan view radius.
Photo Credit: Univeristy of Oregon Track and Field.
Two major construction projects are just wrapping up at the University of Oregon and curved steel is at the forefront of both projects!
The Phil and Penny Knight Campus for Accelerating Scientific Impact Sky Bridge.
Photo Credit: Campus Planning & Facilities Management University of Oregon
Albina Co., Inc. bent 22″ OD x 1″ Wall Carbon Steel Pipe to a 105 foot center-line radius for a signature sky bridge that spans Franklin Boulevard and serves as a connector between campus and other U of O research facilities. The $225 million, 160,000-square-foot first phase opened in the Spring of 2020. Click on the link in my BIO to take a virtual tour of the building. Photo Credit: Campus Planning & Facilities Management U of O.
“The Front Runner in Steel Bending. We Tower Above the Rest” We were thrilled to be an integral part of reconstructing Hayward Field at the University of Oregon. Hayward Field is the world-class home to @OregonTF.
Albina created the curved steel diaphragm used to support the roof structure and provided various bent materials to help construct the landmark tower at the northeast corner of the facility. Designers wanted to create a structure that was open and airy, allowing spectators to enjoy great views and natural daylight, in an intimate environment.
For the roof, we rolled 600 lengths, varying from 28’-0” to 75’-6” long, of 14" OD X .375" / .500 WALL A500-18 GRADE B&C. That is 1,500,000# lot weight (750 tons) of rolled steel, 32 inbound trucks and 90 outbound trucks. The 14” OD material was laid over the top of the plate that we bent for this project. We bent 300 lengths, varying from 3’-0” to 37’-0” long, of PLATE 1½" THICK X 16¾" WIDE A572 GR. 50 and PLATE 1½" THICK X 10" WIDE A572 GR. 50.

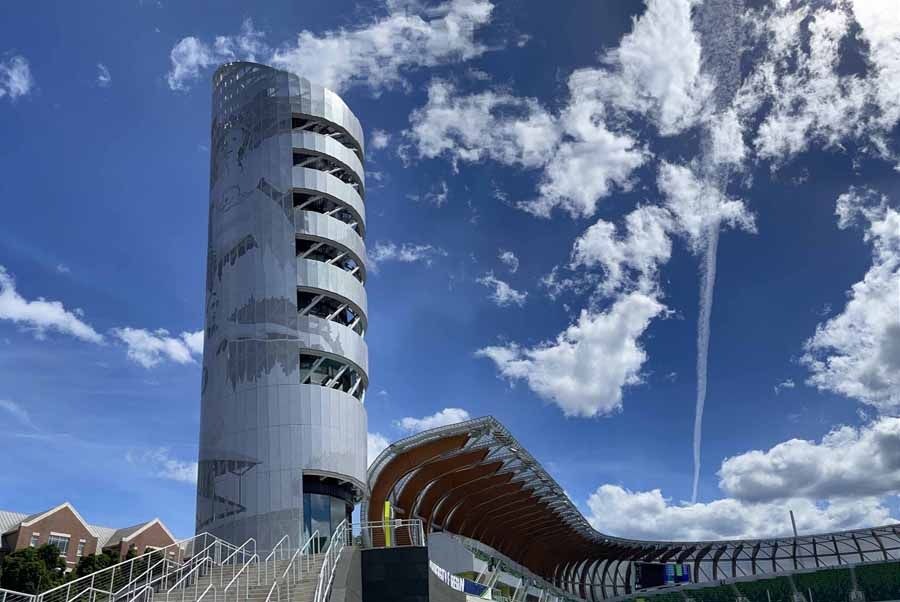

In addition to the iconic roof, the tower at Hayward (187 feet tall) creates a community landmark honoring the first 100 years of track and field at Oregon. We rolled 400 lengths, varying from 20’-0” to 60’-0” long, of Tube Steel 8" X 4" X .500" WALL A500 GR B, 8-5/8" OD X .625" WALL A500C WHEELED, 8-5/8" OD X .375" WALL A500C WHEELED, 8-5/8" OD X .250" WALL A500C WHEELED, and Flat Bar 3/8" X 4½" A36. That is 330,000# lot weight (165 tons) of rolled steel, 10 inbound trucks and 16 outbound trucks! Photo Credit: Oregon Track & Field.
Our work was extremely precise, and we had zero rejected parts by the fabricator, Fought & Co., Inc. When measuring the work points during fabrication, they never once had to heat up or adjust the bending. To make the erection process go smoothly, we marked every 3-4 feet on the centerline back of the pipe to assist in the layout process for the diagrid “fish-mouth” stubs, and up-stands for the roofing system.
The Barbara Walker Crossing Footbridge, along the Wildwood Trail in Portland, Oregon, is the official winner of two prestigious CODA awards, organized by CODAworx, an online global design platform which celebrates the worlds best in public art. The footbridge won a People's Choice Award as voted on by the public, as well as an award in the transportation category. . Click to watch the YouTube Video featuring the bridge. The bridge, designed by local artist, Ed Carpenter, is 178’ long measured at the center of its curving deck. Its basic structure is a tri-chord truss of rusting and painted steel. Carpenter’s design evokes imagery of the sword ferns and vine maples lining the entire length of the Wildwood Trail. This project is a collaborative effort of the Portland Parks Foundation in partnership with Portland Parks & Recreation (PP&R), the Portland Bureau of Transportation (PBOT), and Metro. Albina Co., Inc. bent 3½" SCH80 A847 and 5" SCH40 A847 all rolled to various radii, as well as 1" SCH40 A53B, 1½" SCH40 A53B, 1½" SCH80 A53B all rolled to various radii. For more examples of curved steel pedestrian bridges that we have been a part of check out the Architectural & Structural Section of our website. (Photo Credit: Ed Carpenter).
Take a journey in, above and around our production shop and office with this high resolution virtual and aerial tour of Albina Co, Inc. See our state of the art roll bending machines in action from a plan view, soar through our bays, watch our certified welders in action, and take a peek into our office and newly renovated lunch and conference rooms.
Albina recently supplied 40,000# of bent steel for Kelli McGregor Square Mixed Use Development located outside Coors Field in Denver, Colorado. We bent the following materials.
TS 12" X 8" X .500" WALL A500 GR C 11 pcs bent the easy way Various radii: 73 ft – 90 ft
TS 12" X 6" X .500" WALL A500 GR C 12 pcs bent the easy way Various radii: 62 ft – 73 ft
To read more about the project and see renderings of what the final area will look like please read the article in Denver's Mile High Magazine.
Rotary draw bending is a cold bending method where the member is clamped to a rotating bend die and drawn around the bend die. The tailing tangent is held against the bend die by a pressure die, and the bend die rotates until the desired geometry is formed. A mandrel is often placed inside the member to restrain cross-sectional distortion during the bending process. Bends can also be formed with special draw-bending equipment where deformations are controlled by tensioning along the member axis. Rotary draw bending is commonly used to form small radius bends in smaller-size round, square and rectangular HSS members. Specific tooling is required for each member size, shape and bend radius; therefore, this method is best suited for projects requiring many identical bends. This bending method is primarily used in the machine and parts industry (Weisenberger, 2016) and for piping (Riviezzi,1984). The maximum degree of bend is 180°, but the minimum bend radii of round HSS is approximately 50% smaller than that of other cold-bending methods (Riviezzi, 1984). Have a need for consistent, accurate, and repeatable bent steel parts, hit us up today! We are standing by ready to assist!
Our bent steel can be seen on various applications in the auto, marine, aviation, locomotive, agricultural and food processing sectors. Our bends are used on locomotive frames, boat frames, agricultural equipment, automobiles, aircraft, deck rails and we even bend components for homeland security helping to protect our docks and ports.
The Barbara Walker Crossing Footbridge, along the Wildwood Trail in Portland, Oregon, is up for the International CODA Award for commissioned art around the world. Click to watch the YouTube Video featuring the bridge. The bridge, designed by local artist, Ed Carpenter, is 178’ long measured at the center of its curving deck. Its basic structure is a tri-chord truss of rusting and painted steel. Carpenter’s design evokes imagery of the sword ferns and vine maples lining the entire length of the Wildwood Trail. This project is a collaborative effort of the Portland Parks Foundation in partnership with Portland Parks & Recreation (PP&R), the Portland Bureau of Transportation (PBOT), and Metro. Albina Co., Inc. bent 3½" SCH80 A847 and 5" SCH40 A847 all rolled to various radii, as well as 1" SCH40 A53B, 1½" SCH40 A53B, 1½" SCH80 A53B all rolled to various radii. For more examples of curved steel pedestrian bridges that we have been a part of check out the Architectural & Structural Section of our website. (Photo Credit: Ed Carpenter).
One of Southern California's iconic, flagship waterfront restaurant sites - 1360 North Harbor Drive along the North Embarcadero, is getting a facelift! The Port of San Diego and The Brigantine, Inc. began construction in July 2018 to redevelop Portside Pier including introducing four new dining concepts and enhancing the panoramic views of San Diego Bay for daily visitors. Albina Co., Inc. provided 60,000 pounds of various bent materials for the unique curved roof structure as well as for a signature spiral staircase that leads from the dock to the second floor public walkway and viewing deck. Materials bent by Albina Co., Inc. included: TS 14" X 6" X .500" WALL A500 GR B (6 pieces spiral bent the easy way as tight as a 17 ft plan view radius, 4 pieces bent the easy way as tight as a 17 ft inside radius.) TS 12" X 6" X .500" WALL A500 GR B (8 pieces bent the easy way as tight as a 2’ 7” outside radius, 8 pieces spiral bent the easy way as tight as a 2’ 7” plan view radius.) TS 8" X 8" X .500" WALL A500 GR B (84 pieces bent to various radii and configurations.) TS 18" X 6" X .375" WALL A500 GR B (4 pcs bent the hard way.) W10 X 12# A992 (9 pcs bent the hard way.) W18 X 35# A992 (15 pcs bent the hard way.) W16 X 26# A992 (2 pcs bent the hard way.) W14 X 22# A992 (13 pcs bent the hard way.) Photo Credit: Encore Steel
Albina recently bent 37,000# of HSS for the Living Waters Express Car Wash in Aurora, Colorado. The concept for the Living Water Express Car Wash was to design a building that resembled flowing water. For more info on the project go to https://linktr.ee/AlbinaCoInc . To help our customer achieve their goals, we bent various materials including:TS 10" X 2" X .250" WALL A500 GR B- 10 pcs bent the hard way TS 10" X 8" X .250" WALL A500 GR B- 6 pcs bent the hard way TS 10" X 8" X .375" WALL A500 GR B- 6 pcs bent the hard way TS 10" X 8" X .313" WALL A500 GR B- 4 pcs bent the hard way TS 8" X 8" X .250" WALL A500 GR B- 4 pcs bent 3" X 3" X ¼" ANGLE A36- 36 pcs bent leg in TS 8" X 2" X .250" WALL A500 GR B- 2 pcs bent the easy way
