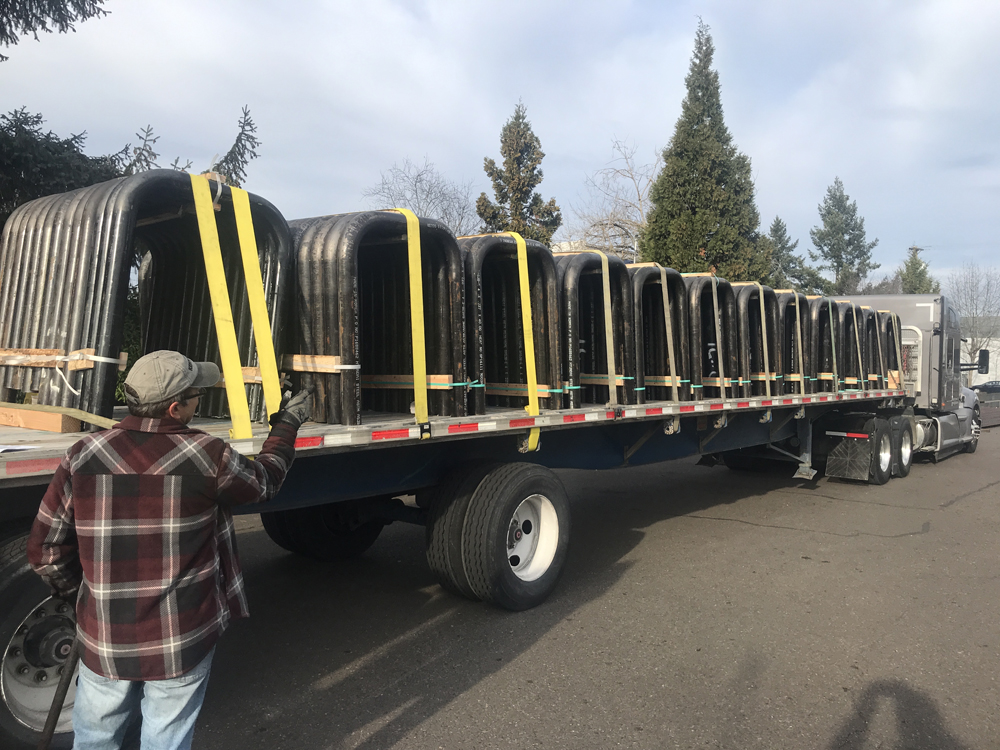

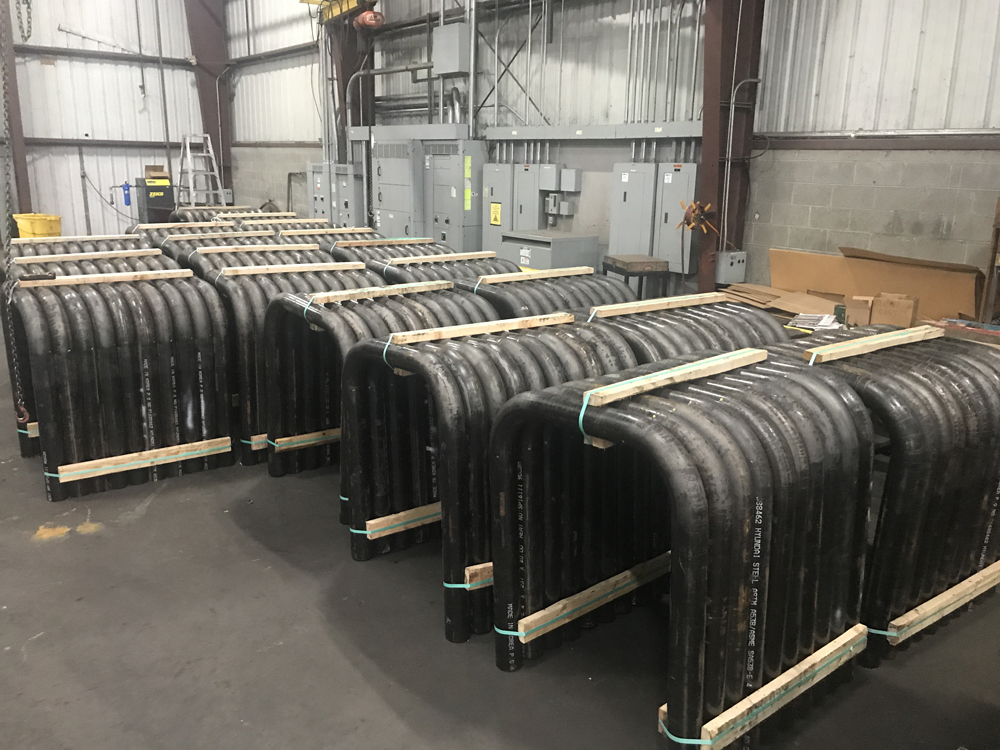

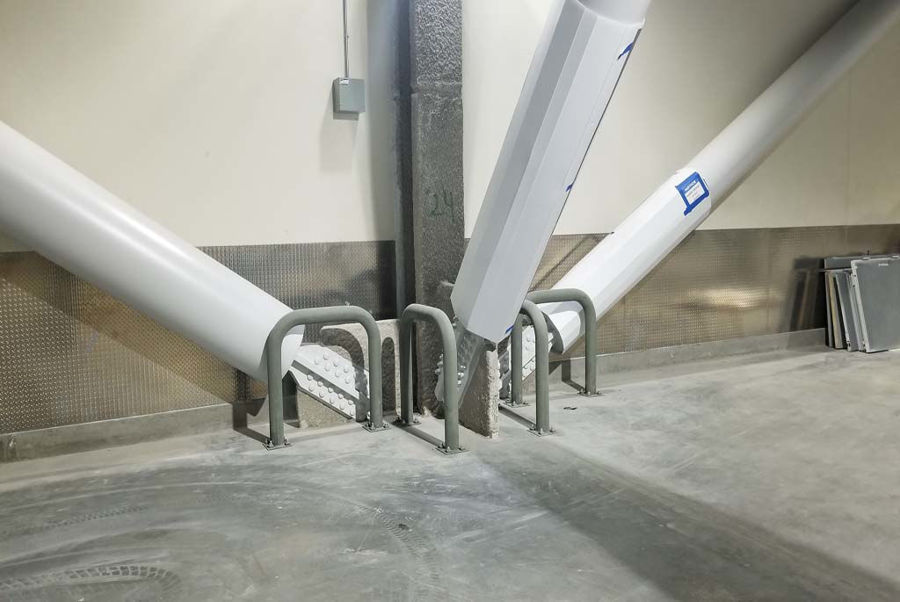

Albina recently completed 233 pieces of 4" SCH40 A53B ERW bent in a Double 90° configuration on a 9" centerline radius for bollards for the back area of the new SoFi Stadium-Home of the Los Angeles Rams and the Los Angeles Chargers (loading dock, VIP parking, etc.) The bollards will be used for protection of the main structural columns at the stadium.

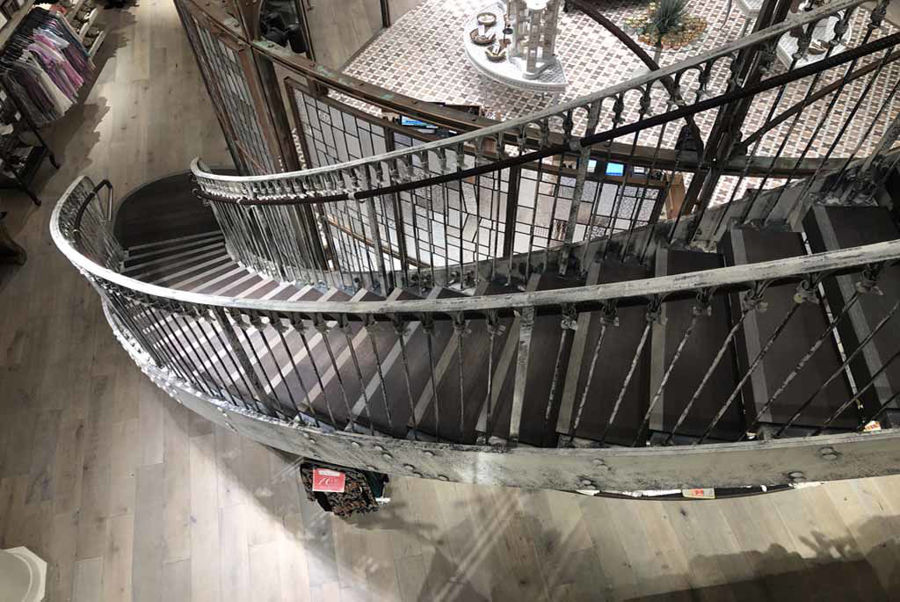

Albina Co., Inc. recently rolled 16 pieces of 5/8" plate A36 to as tight as a 162" radius. Six pieces of plate were used as the inside stringers of a beautiful spiral staircase at Altar'd State at the Forum Shops at Caesar's Palace. Six pieces of plate were used as the outside stringers of the staircase, and four pieces were used on the landings. We bent the stringers, trimmed rectangular treat cut outs, trimmed to length, match paired plates, tacked them together and match drilled all holes. We bolt matched the plates together with a 6 bolts, (2) on the end, (2) in the middle, and (2) on the other end.
We also bent 2½" X 2½" X ¼" ANGLE A36 to help create the spiral staircase. Materials included:
1 piece leg in to a 25” inside radius. Albina to bend 180° minimum.
1 piece leg out to a 162” inside radius. Albina to bend 70” minimum arc.
1 piece leg out to a 30” inside radius. Albina to bend 36” minimum arc.
1 piece leg out to a 19” inside radius. Albina to bend 80” minimum arc.
1 piece leg in to a 38” inside radius. Albina to bend 180° minimum.
Lastly, we bent one piece of Flat Bar 5/8" x 12" A36 UM Plate leg in to a 38” inside radius and 180° minimum.
We have to send another shout out to PDX Wraps for creating another custom wrap for our recent conference room makeover. PDX Wraps offers full service design, print and install for personal and commercial projects. They also offer products for paint protection, watercraft and other custom wraps. Earlier this year, we used PDX Wraps to wrap the exterior and interior of our brand new mezzanine lunch room. Such a cool product!
