Spectacular Pipe Stringer on Display in the Lobby of the Volvo Cab Assembly Building
Spectacular Pipe Stringer on Display in the Lobby of the Volvo Cab Assembly Building

Albina recently spiral rolled 4 pieces of 14"OD X .500" WALL A53 GR B WHEELED to a 9'-4" plan view radius for both the spiral and landing support sections of the lobby spiral staircase in the Volvo Cab Assembly Building. Our Induction Heat Source and Increment Bending Method Produces Extremely Tight Spiral Bends to Industry Leading Quality AESS Standards. Check out our photo gallery of projects.

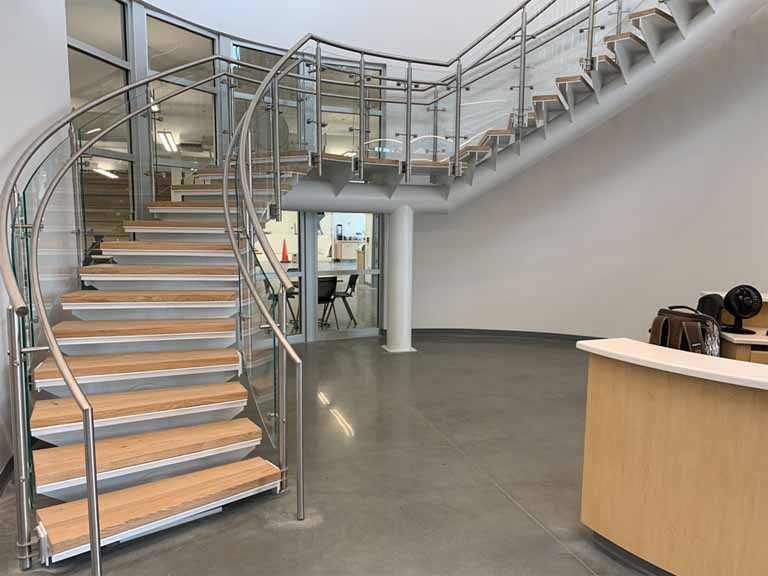

Steel Pipe Stringer Volvo Cab Assembly Building

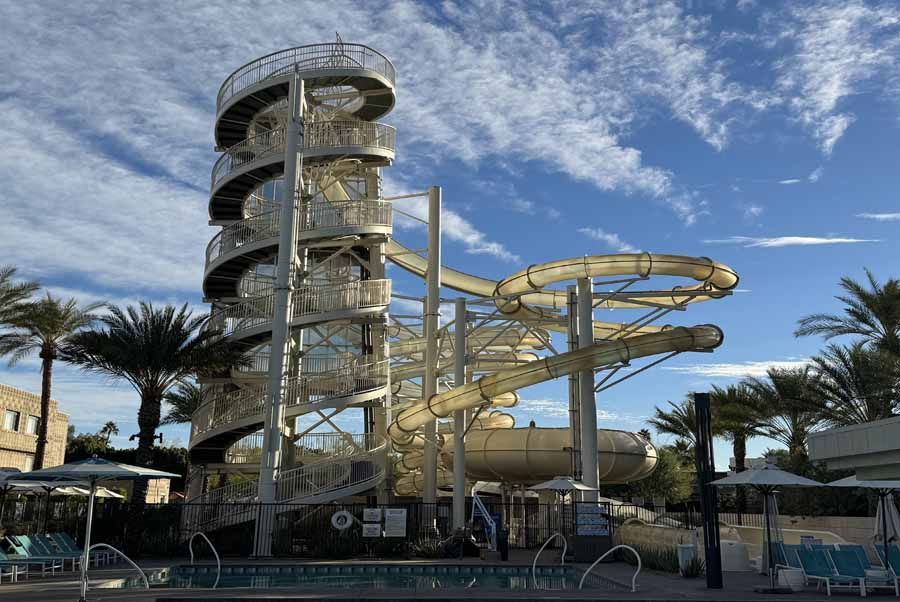

Final Installation of the Spiral Staircase at the Arizona Biltmore Paradise Pool Slides
Final Installation of the Spiral Staircase at the Arizona Biltmore Paradise Pool Slides

The Arizona Biltmore (A Waldorf Astoria Resort) recently opened their new Paradise Slides and equally as impressive as the slides themselves is the spiral staircase used to acend to the top of the slides. Materials Albina bent for this project included tube steel, various sizes and widths of pipe and round tube as well as several pieces of angel and channel. Next Level Steel was the fabricator on the project.

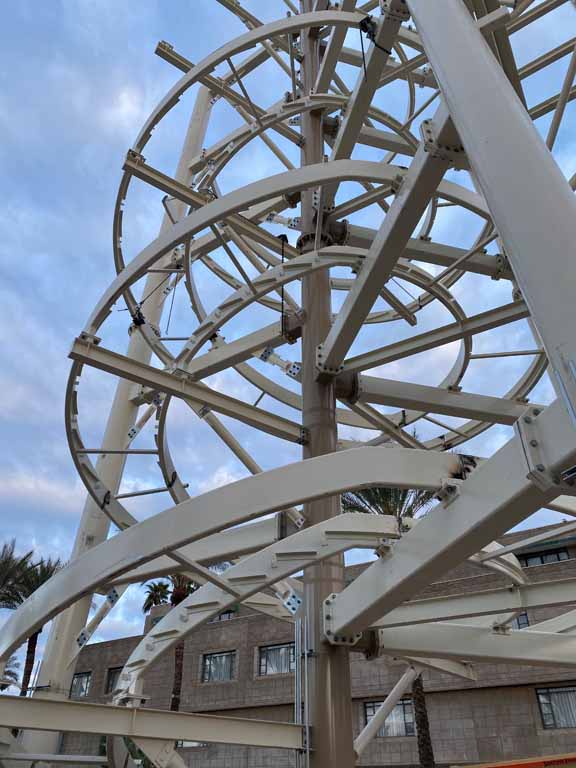

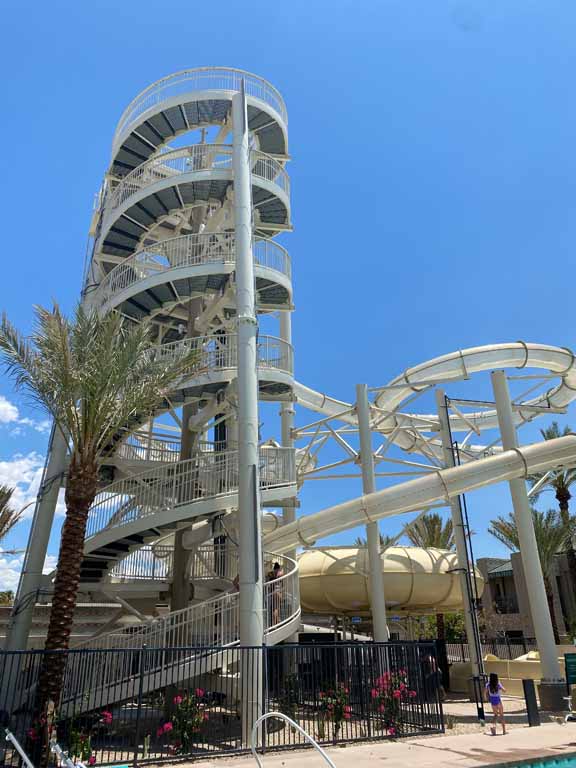

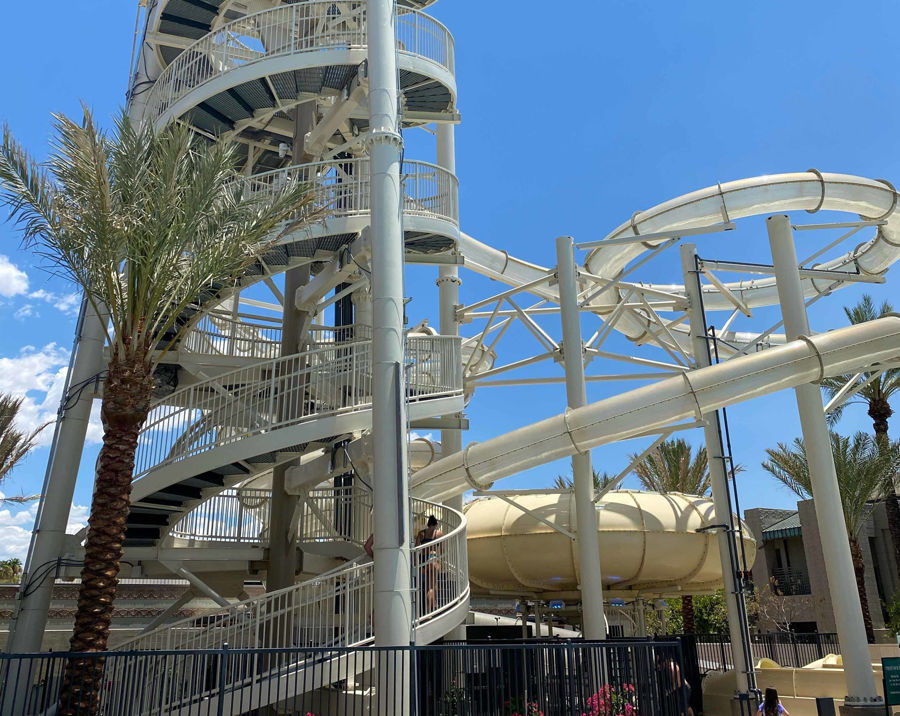

Arizona Biltmore Paradise Pool Slides with Steel Spiral Staircase

A full list of bent materials includes:

TS 12" X 3" X .375" WALL A500 GR B

22 pcs spiral bent the easy way.  11 pcs bent to a 7’-4” outside plan view radius and 11 pcs bent to a 11’-0” Inside plan view radius.  All to AESS standards.

35 pcs bent the easy way (flat).  17 pcs bent to a 7’-1” inside radius and 18 pcs bent to a 11’-0” Inside radius.  All to AESS standards.

3" OD X .250" WALL A500 GR. B

112 pcs spiral bent to various radii and configurations all to AESS standards.

2½" OD X .188" WALL A500 GR B

6 pcs spiral bent to various radii and configurations all to AESS standards.

60 pcs bent (flat) to 3’-11” up to 5’-1” radii.

1¼" SCH40 A500B UNCOATED

25 pcs spiral bent to various radii (7’-5” up to 10’-10”) and configurations all to AESS standards.

12 pcs bent (flat) to 7’-5” up to 10’-10” radii.

1½" SCH40 A500B UNCOATED

106 pcs spiral bent to various radii (7’-2” up to 11’-1”) and configurations all to AESS standards.

73 pcs bent (flat) to 7’-2” up to 11’-1” radii.

C4 X 5.4# A36

51 pcs bent (flat) the hard way to various radii and configurations

2" X 2" X ¼" ANGLE A36

260 pcs rolled – some leg-in and some leg-out.  To various radii and configurations.

3" X 3" X 3/8" ANGLE A36

1 pc rolled leg-out to a 7’-7” radius

1 pc rolled leg-in to a 11’-0” radius

3" X 3" X ½" ANGLE A36

47 pcs rolled – some leg-in and some leg-out.  To various radii and configurations.

4" X 3" X ½" ANGLE A36

1 pc rolled leg-in to a 11’-0” radius

Full View of the Arizona Biltmore Paradise Pool Slides with Steel Spiral Staircase
