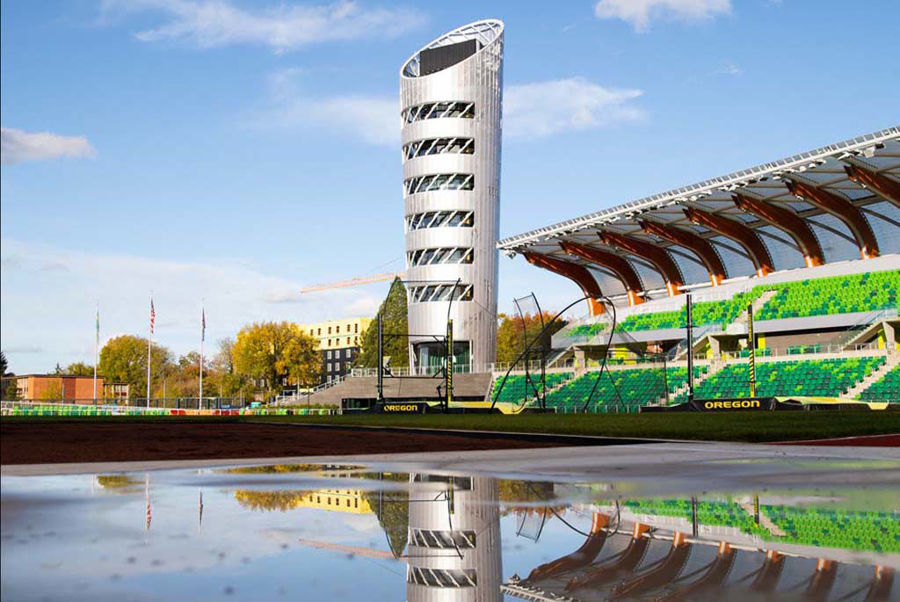

We were thrilled to be an integral part of reconstructing Hayward Field at the University of Oregon. Hayward Field is the world-class home to @OregonTF. Albina created the curved steel diaphragm used to support the roof structure and provided various bent materials to help construct the landmark tower at the northeast corner of the facility. Designers wanted to create a structure that was open and airy, allowing spectators to enjoy great views and natural daylight, in an intimate environment. See https://linktr.ee/AlbinaCoInc for pictures, video and more!

For the roof, we rolled 600 lengths, varying from 28’-0” to 75’-6” long, of 14" OD X .375" / .500 WALL A500-18 GRADE B&C. That is 1,500,000# lot weight (750 tons) of rolled steel, 32 inbound trucks and 90 outbound trucks. The 14” OD material was laid over the top of the plate that we bent for this project. We bent 300 lengths, varying from 3’-0” to 37’-0” long, of PLATE 1½" THICK X 16¾" WIDE A572 GR. 50 and PLATE 1½" THICK X 10" WIDE A572 GR. 50.

In addition to the iconic roof, the tower at Hayward (187 feet tall) creates a community landmark honoring the first 100 years of track and field at Oregon. We rolled 400 lengths, varying from 20’-0” to 60’-0” long, of Tube Steel 8" X 4" X .500" WALL A500 GR B, 8-5/8" OD X .625" WALL A500C WHEELED, 8-5/8" OD X .375" WALL A500C WHEELED, 8-5/8" OD X .250" WALL A500C WHEELED, and Flat Bar 3/8" X 4½" A36. That is 330,000# lot weight (165 tons) of rolled steel, 10 inbound trucks and 16 outbound trucks!

Our work was extremely precise, and we had zero rejected parts by the fabricator, Fought & Co., Inc. When measuring the work points during fabrication, they never once had to heat up or adjust the bending. To make the erection process go smoothly, we marked every 3-4 feet on the centerline back of the pipe to assist in the layout process for the diagrid “fish-mouth” stubs, and up-stands for the roofing system.

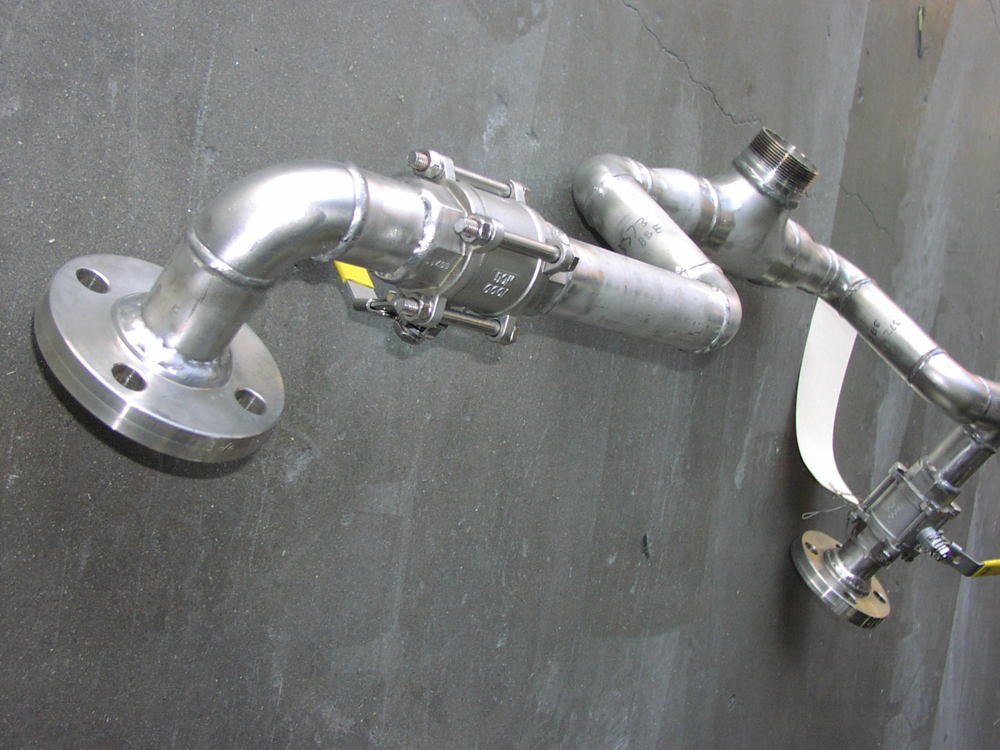

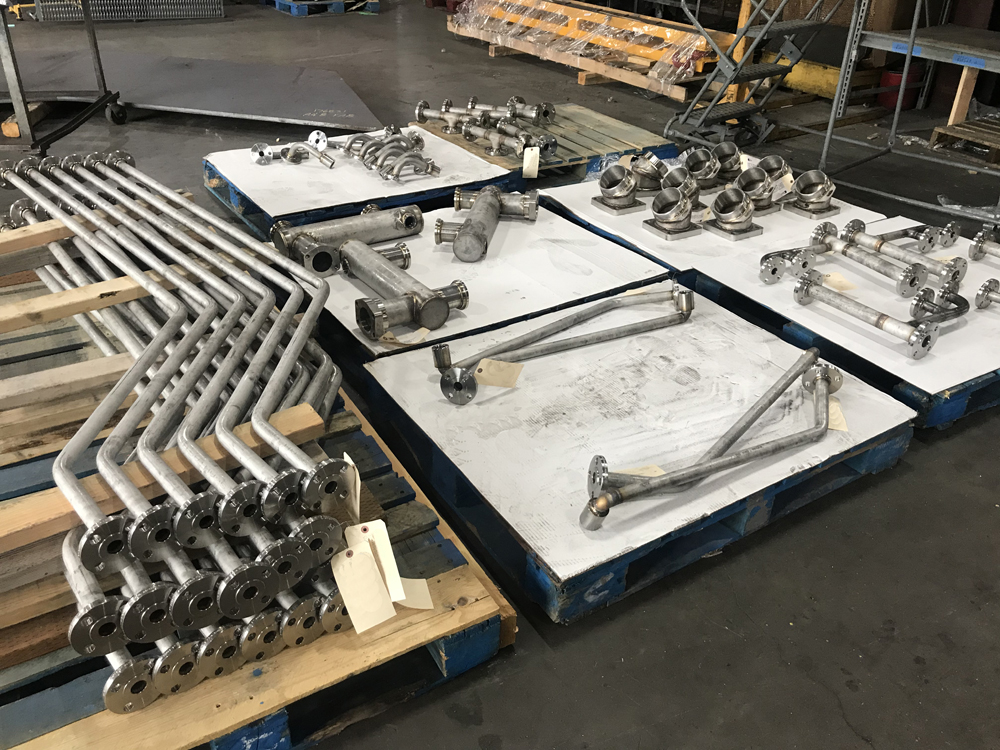

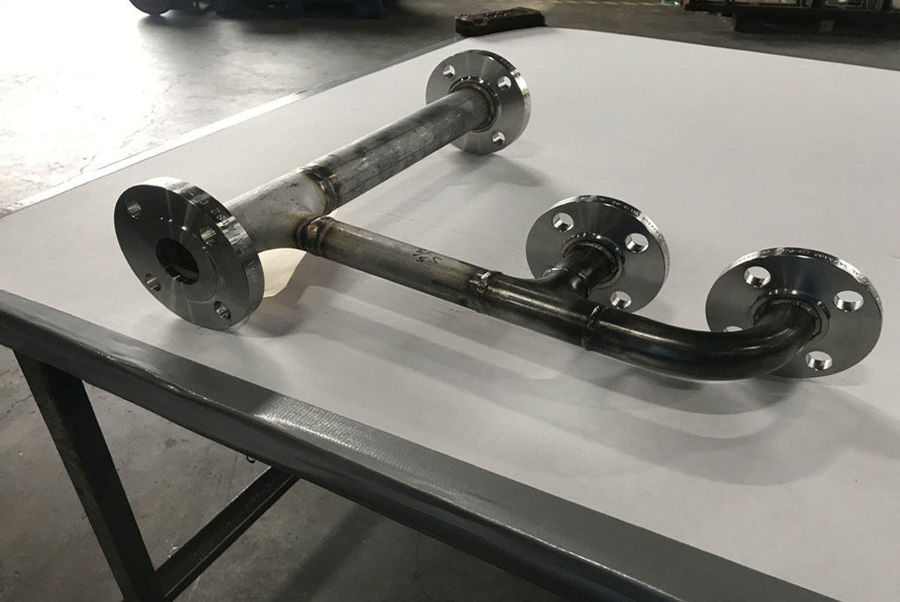

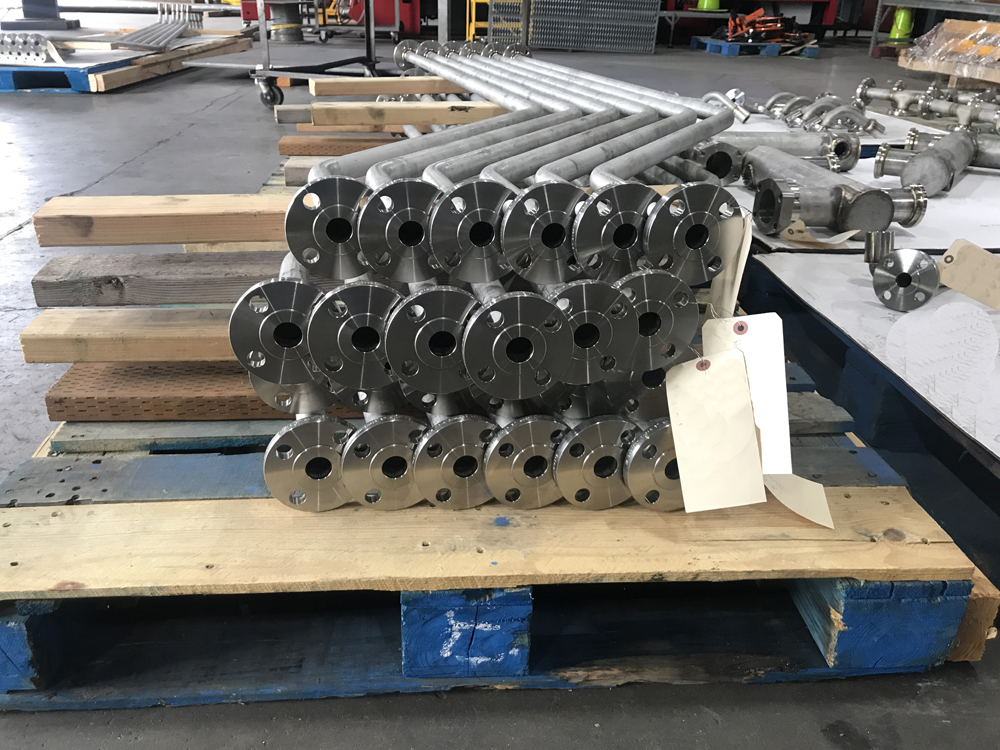

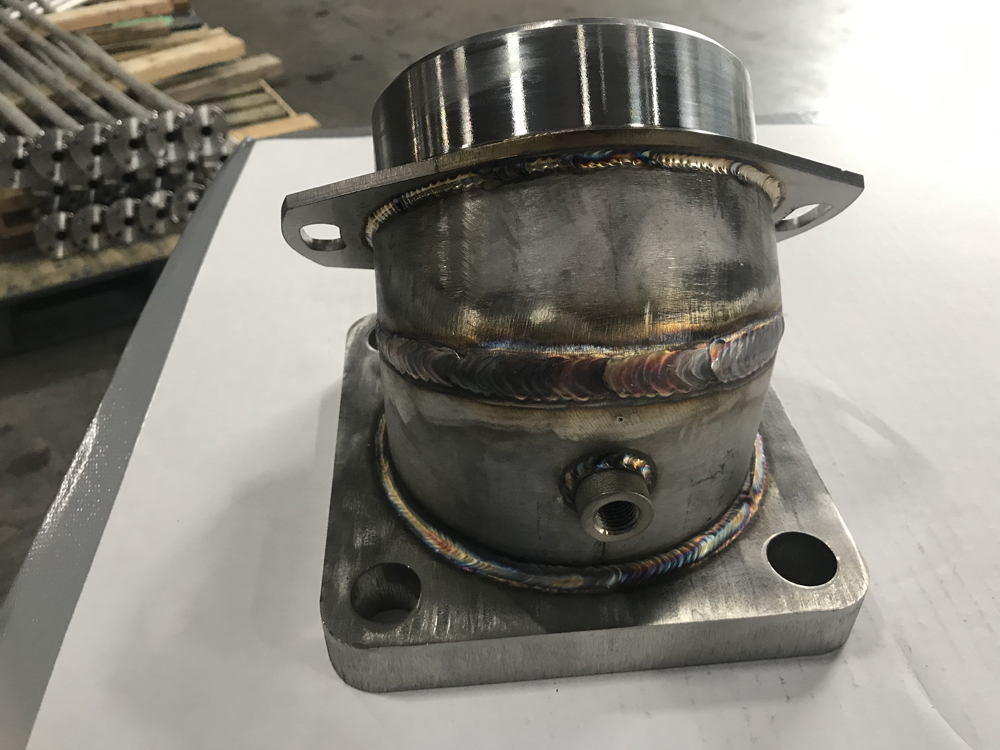

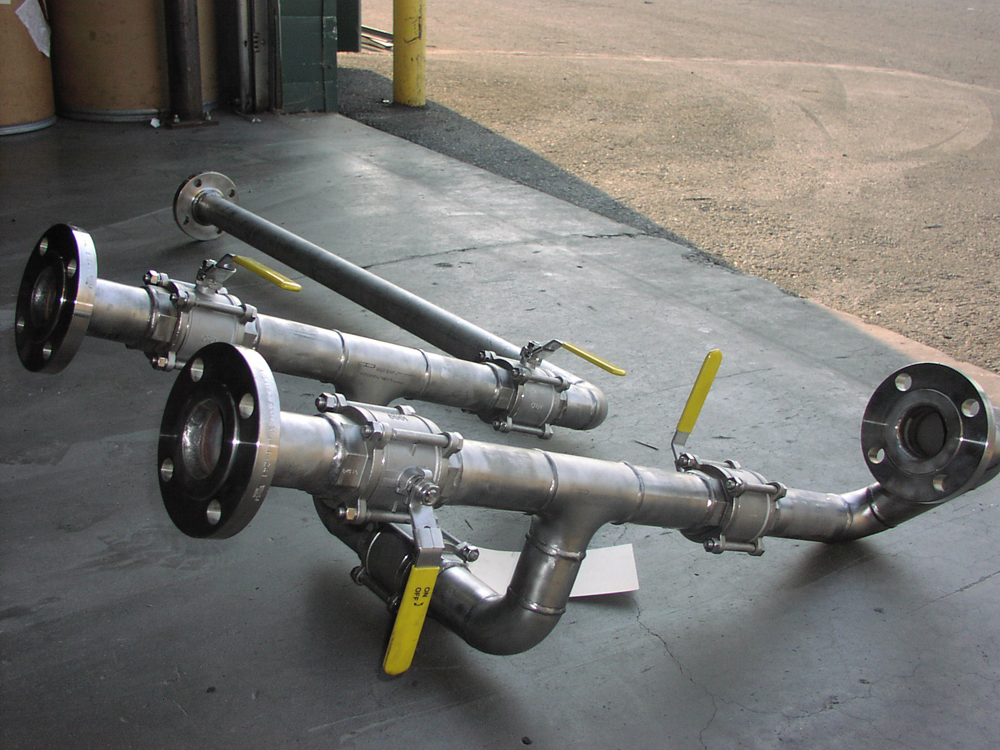

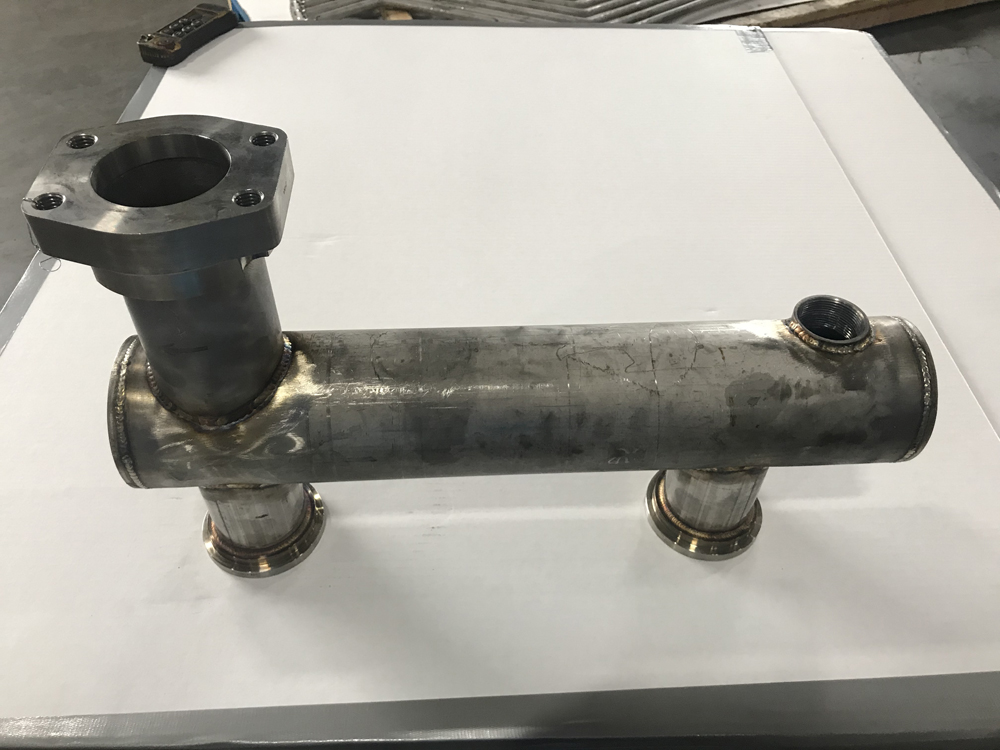

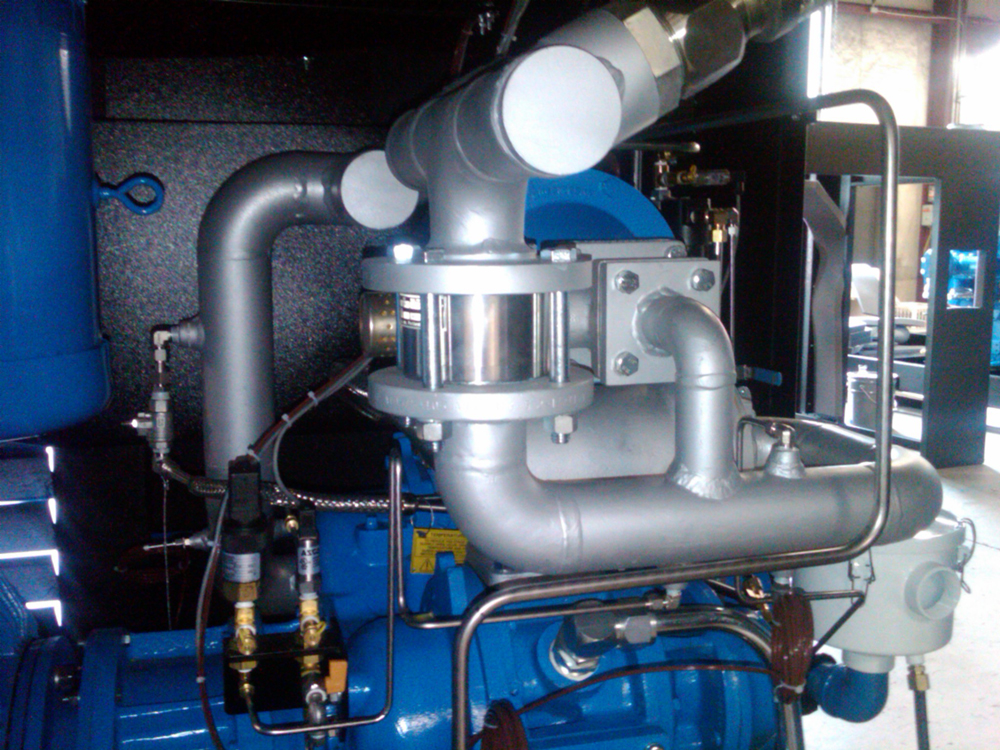

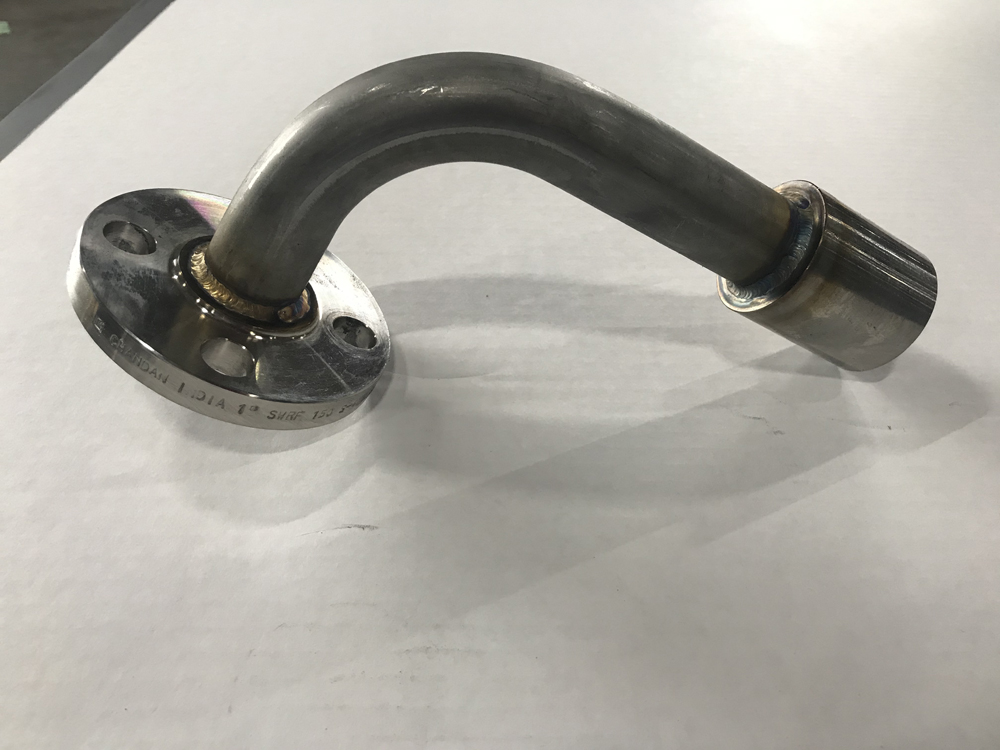

We bend and fabricate pipe spools for a variety of different industries. We have the ability to provide small and large spools out of both carbon and stainless materials. Our qualified welders can TIG or MIG weld spools depending on customer requirements.

FABRICATORS, MACHINE OPERATORS (BENDERS) & HELPERS NEEDED:
Albina Co., Inc. remains OPEN and is a key supplier in our nation's supply chain. We are very busy and are looking for qualified workers to join our team. If you are interested in working at the best bending company in North America please contact HR@albinaco.com. We are interested in experienced Fabricators, Machine Operators (Benders) and Helpers.

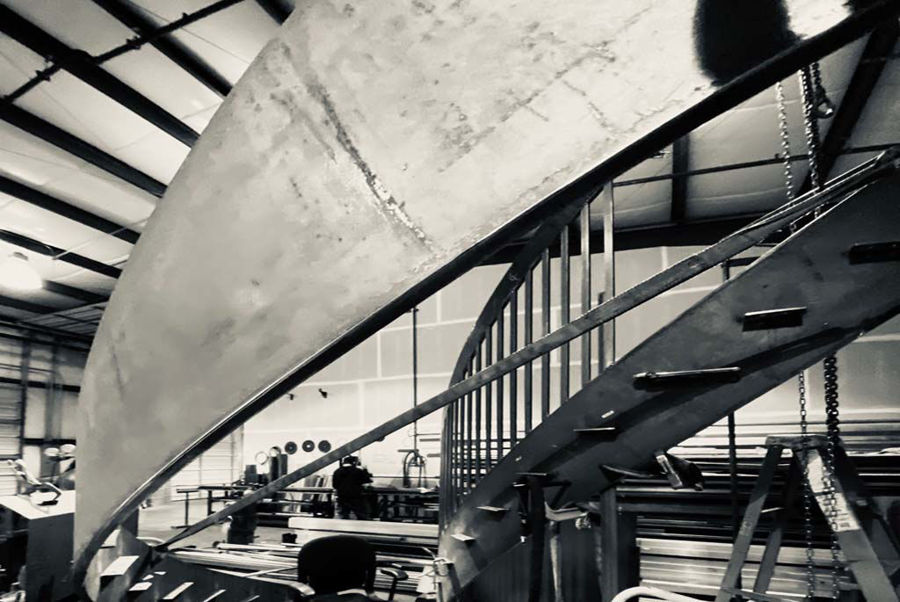

Albina Co., Inc. recently rolled several materials for a custom spiral staircase. Materials bent by Albina Co., Inc. include:
PL ¾" X 14" A36- spiral rolled to a 5’ 3” plan view radius and a 9’ 3” plan view radius.
PL ¾" x 4" A36- spiral rolled to a 5’ 3” plan view radius.
PL ¾" X 8" A36- spiral rolled to a 5’ 3” plan view radius.
1½" OD X .120" WALL HREW: Rolled to a 8’ 11” plan view radius.

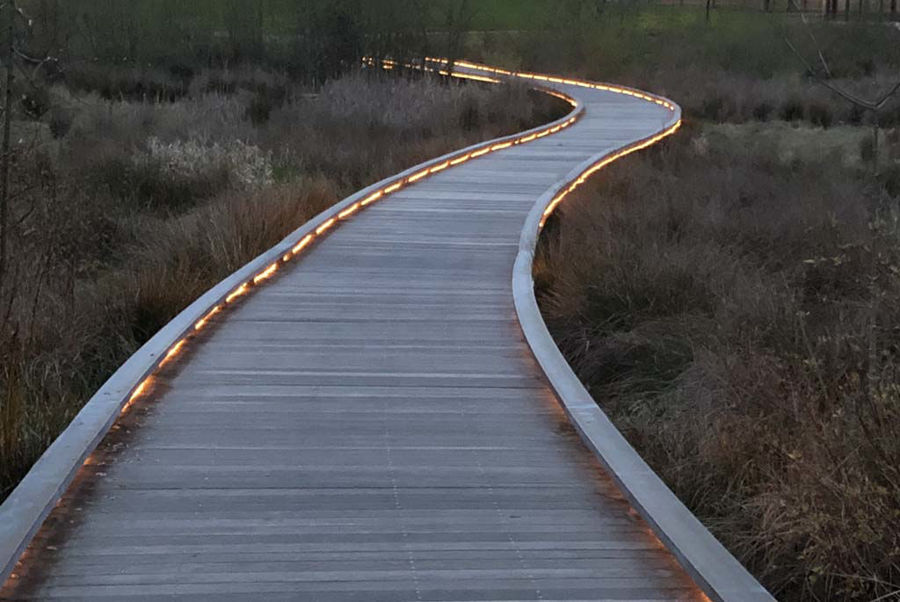

Albina bent some channel for a boardwalk at the Evelyn Schiffler Memorial Park in Beaverton, OR. In the very center of the park, a 2.4-acre wetland attracts native wildlife. It can be appreciated from two long stretches of boardwalk consisting of:
7,600# (18 lengths x 40 ft) of bent C6 X 10.5# A36
All parts were bent the hard way to AESS standards.
110 ft minimum bent to a 296 ft radius
176 ft minimum bent to a 213 ft radius
160 ft minimum bent to a 206 ft radius
121 ft minimum bent to a 303 ft radius
All Material Bent by Albina Co., Inc. Customer fit and fabricated.
