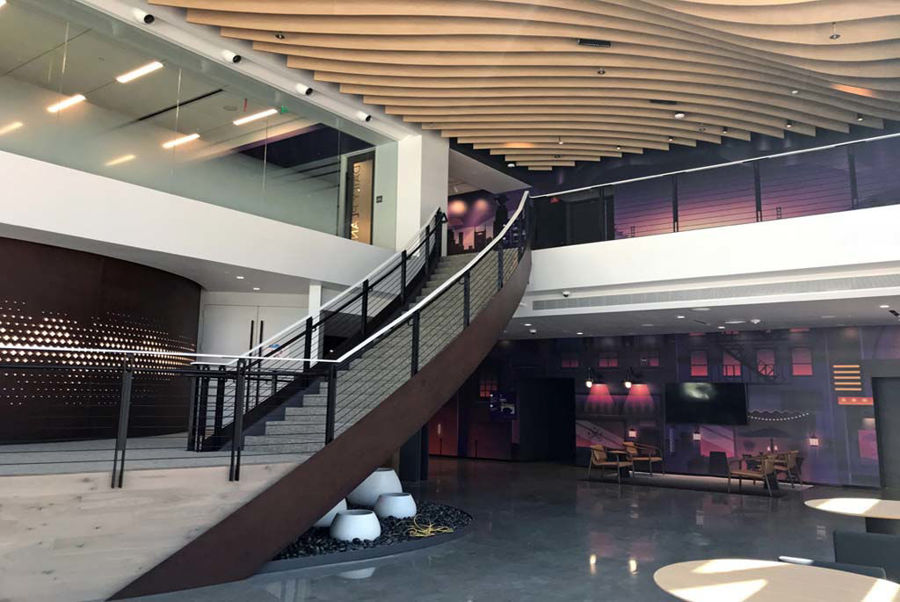

Albina Co., Inc., was lucky enough to be the bender/roller for a beautiful spiral staircase that graces the lobby of one of the major tech companies headquartered in San Jose, California. Albina bent the following materials for the project:
Tube Steel 3" X 3" X .375" WALL A500 GR B Channel C15 X 40# A572-50 3/8" THICK X 24" WIDE CORTEN PLATE ¼" THICK X 77¾" WIDE CORTEN PLATE ¼" THICK X 29½" WIDE CORTEN PLATE
The Inside stringer for the staircase was rolled to a 26’-11” radius and the outside stringer was rolled to a 32’-3” radius.

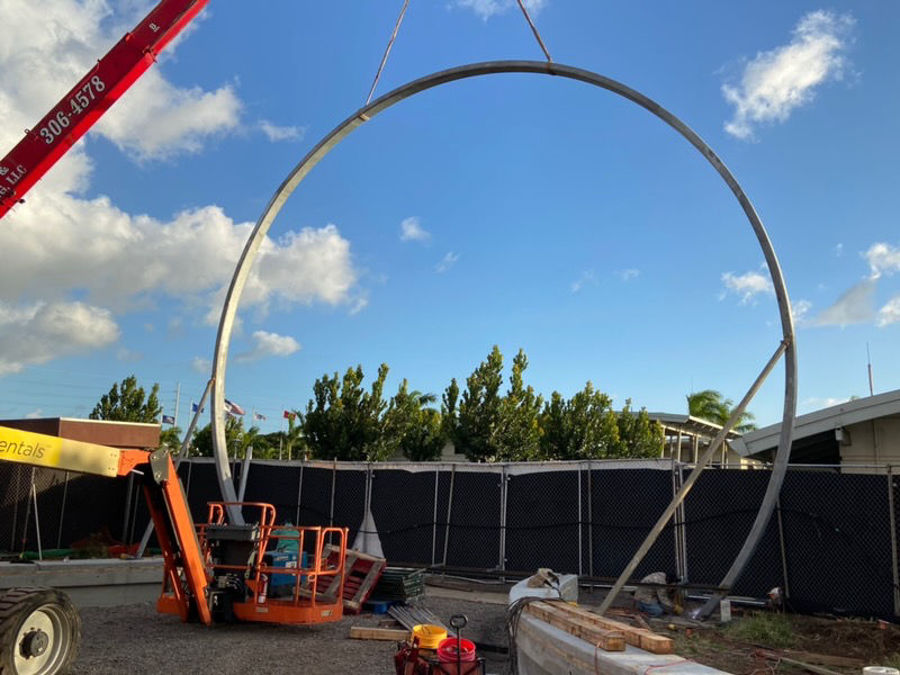

The Pacific Fleet Submarine Memorial Association operates USS Bowfin Submarine Museum & Park. It is the most visited submarine museum in the world. The museum aims to educate the public and honor veterans in a way that does justice to the brave men and women of the Silent Service. The USS Bowfin Submarine Museum & Park is undergoing a major improvement project and renaming itself The Pacific Fleet Submarine Museum at Pearl Harbor. In the video you can see one of the submarines in the bay. The ring resembles the hull of a submarine and will be featured as visitors enter the park. For more information and project renderings, click here. Albina bent the following materials for the project:
22,000# of rolled steel: 3 x 40 ft: TS 12" X 6" X .625" WALL A500 GR B. Net 3 pcs rolled the Easy Way to a 21 ft radius. 2 x 35 ft: TS 10" X 4" X .375" WALL A500 GR B. Net 2 pcs rolled the Easy Way to a 42 ft radius. TS 12" X 4" X .375" WALL A500 GR B. Net 18 pcs rolled. Some rolled the Hard way and others rolled the Easy way. Radii ranging from 13 ft to 231 ft. TS 10" X 6" X .375" WALL A500 GR B. Net 3 pcs rolled the Easy Way to a 24 ft radius. W14 X 34# A992. Net 2 pcs rolled the Easy Way to a 24 ft radius. 4" X 4" X 3/8" ANGLE A36. Net 4 pcs rolled the Leg Out to a 24 ft radius.
Check back soon for final installation pictures! They are going to be spectacular!
