Photo: MJ Rowe

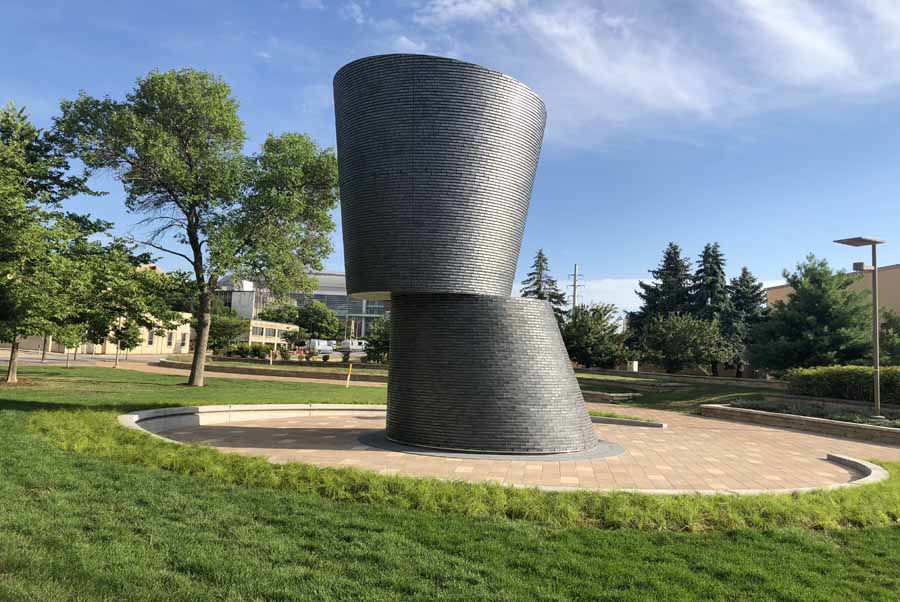

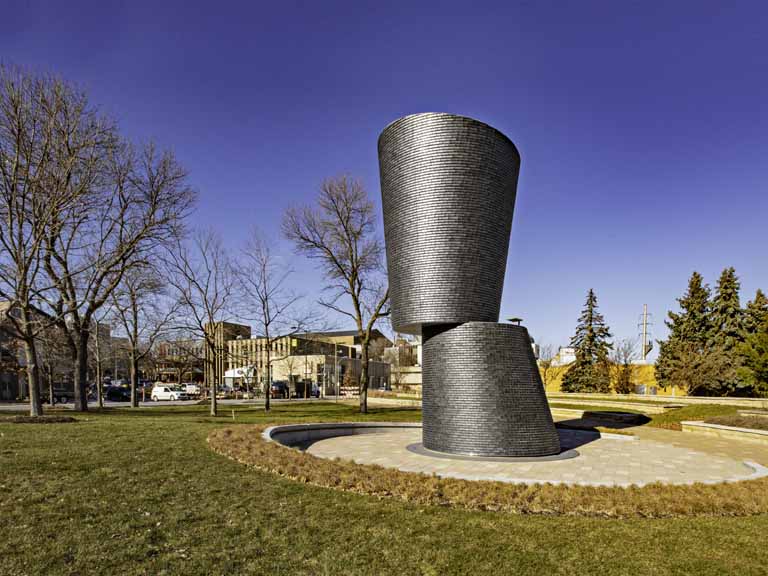

"A Monumental Journey" by Kerry James Marshall was one of ten innovative projects to win a top Steel Design Award this year. Sponsored by the American Institute of Steel Construction (AISC), the Innovative Design in Engineering and Architecture with Structural Steel (IDEAS²) Award program recognizes projects that illustrate the possibilities of building with structural steel. Marshall designed the sculpture for the Greater Des Moines Public Art Foundation. The sculpture is made of manganese, ironspot brick, steel, and granite and measures approx. H. 30 ft, D. 19 ft. Read more and see a full list of project winners.
Albina bent various materials for this project including:
3 x 40 ft: 5" X 5" X 5/16" ANGLE A36. Cut and bent to net 8 pcs (leg out). Bent down to a 68” inside radius.
1 x 20 ft: MC3 X 7.1# A36. Cut and bent to net 2 pcs (flanges in).
2 x 48 ft: TS 6" X 6" X .625" WALL A500 GR B. Cut and bent to net 4 pcs. Bent down to a 58” inside radius.
1 x 48 ft: TS 6" X 6" X .375" WALL A500 GR B. Cut and bent to net 2 pcs. Bent down to a 77” inside radius.

Photo: Ben Easter

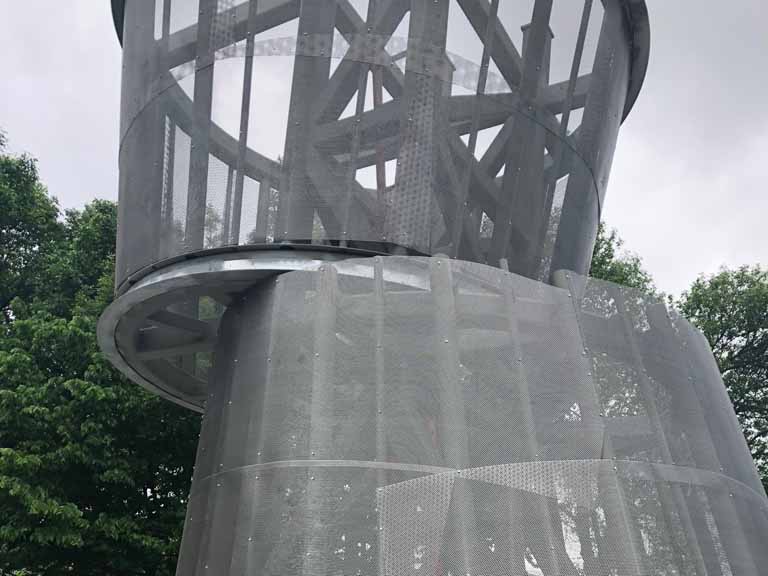

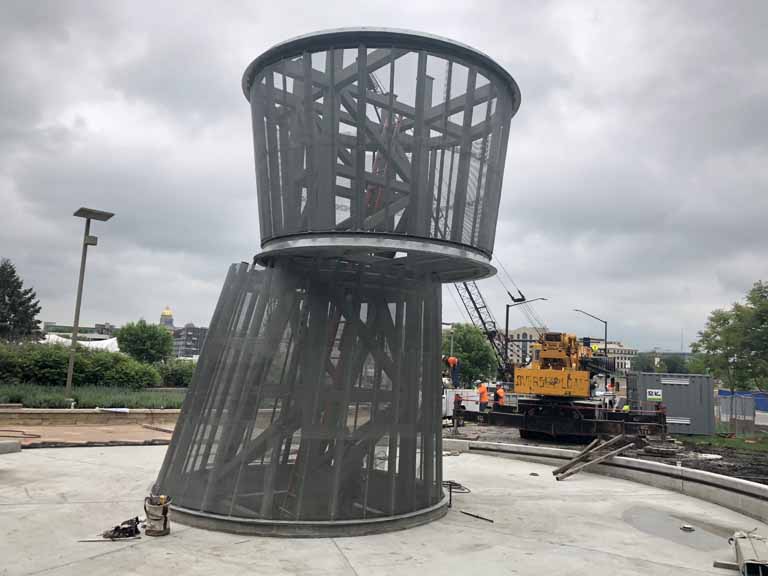

Installation Photos

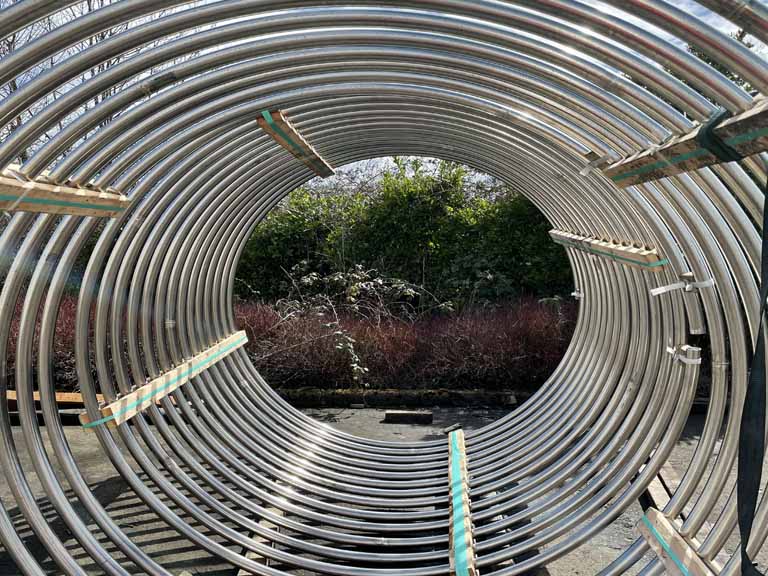

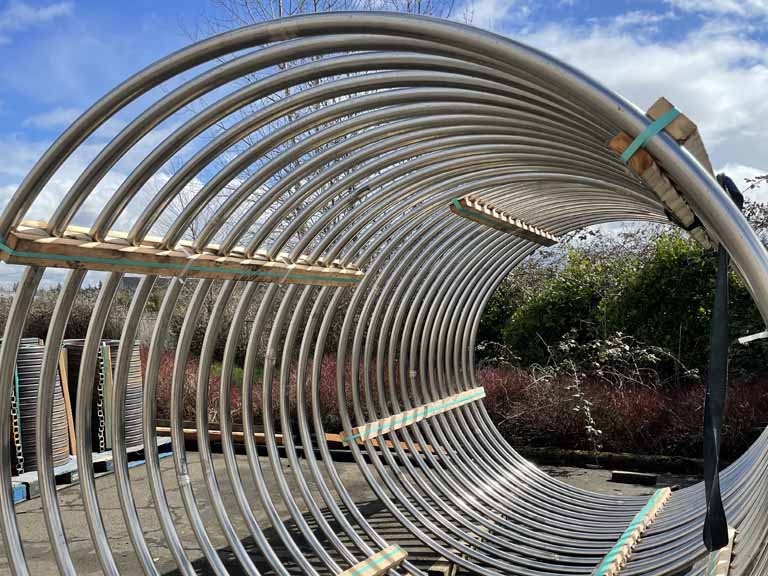

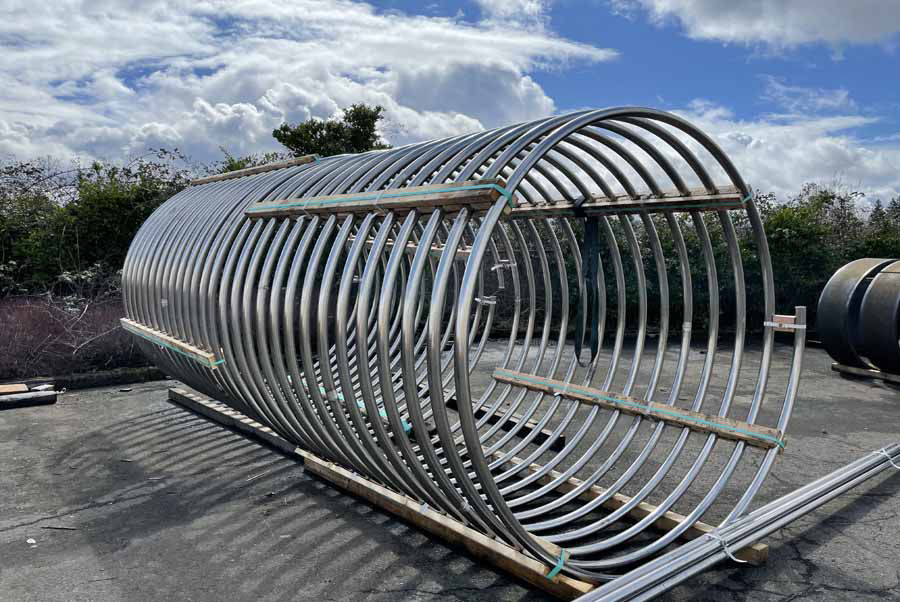

That’s One Big Slinky! Albina recently coiled two assemblies out of 39 lengths x 20 feet of 2” OD x .120” wall T304 s/s (180 grit). Albina rolled, trimmed, weld prepped and TIG welded each coiled length. The material was coiled to a 90” diameter. Albina has the expertise to bend coils to virtually any configuration. We coil all forms of material: pipe, tubing, square and rectangular. We also work with all types of material: carbon, stainless, aluminum, copper, zirconium, etc. Photo Credit: @Brooke_Smith_Photography

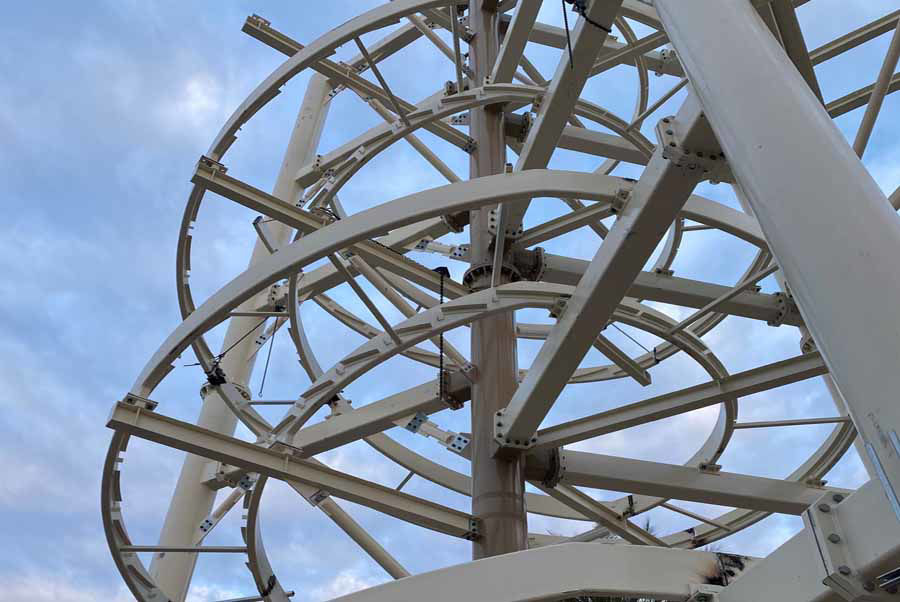

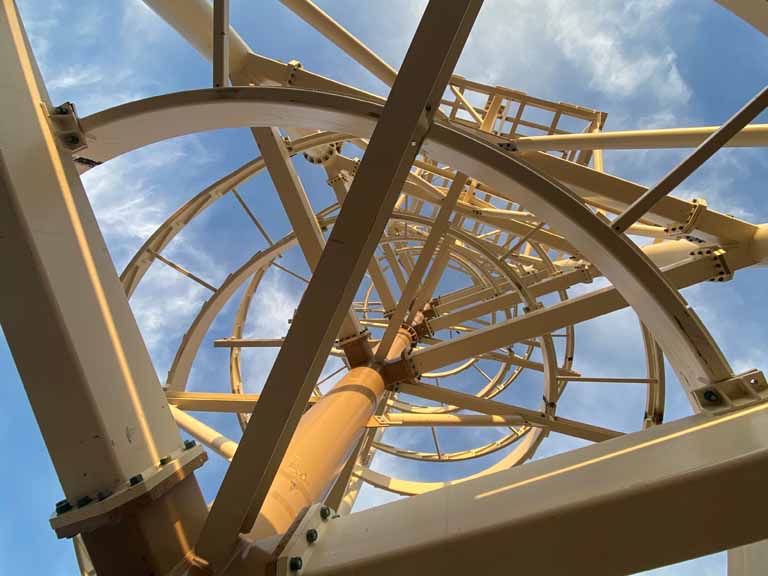

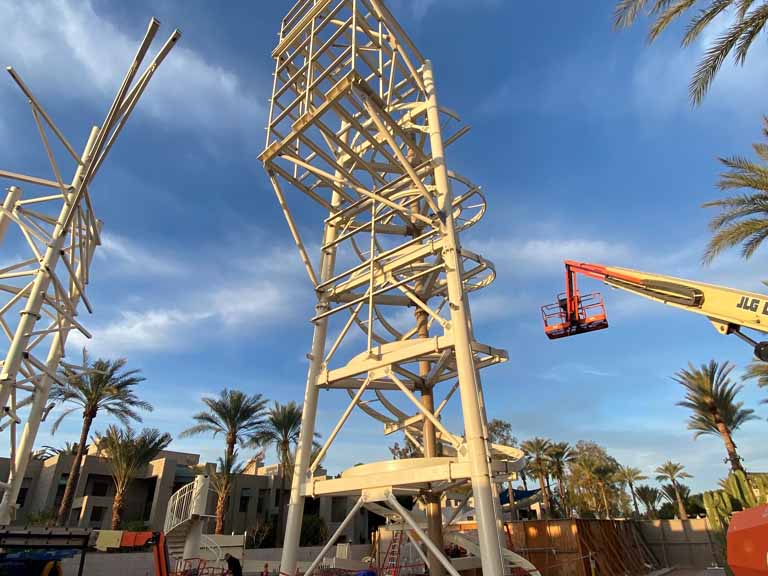

Albina recently rolled a ton of different material and material sizes for the Arizona Biltmore (A Waldorf Astoria Resort) for their new Paradise Slides. Materials Albina bent for this project included tube steel, various sizes and widths of pipe and round tube as well as several pieces of angel and channel. Next Level Steel was the fabricator on the project.

A full list of bent materials includes:

TS 12" X 3" X .375" WALL A500 GR B

22 pcs spiral bent the easy way.  11 pcs bent to a 7’-4” outside plan view radius and 11 pcs bent to a 11’-0” Inside plan view radius.  All to AESS standards.

35 pcs bent the easy way (flat).  17 pcs bent to a 7’-1” inside radius and 18 pcs bent to a 11’-0” Inside radius.  All to AESS standards.

3" OD X .250" WALL A500 GR. B

112 pcs spiral bent to various radii and configurations all to AESS standards.

2½" OD X .188" WALL A500 GR B

6 pcs spiral bent to various radii and configurations all to AESS standards.

60 pcs bent (flat) to 3’-11” up to 5’-1” radii.

1¼" SCH40 A500B UNCOATED

25 pcs spiral bent to various radii (7’-5” up to 10’-10”) and configurations all to AESS standards.

12 pcs bent (flat) to 7’-5” up to 10’-10” radii.

1½" SCH40 A500B UNCOATED

106 pcs spiral bent to various radii (7’-2” up to 11’-1”) and configurations all to AESS standards.

73 pcs bent (flat) to 7’-2” up to 11’-1” radii.

C4 X 5.4# A36

51 pcs bent (flat) the hard way to various radii and configurations

2" X 2" X ¼" ANGLE A36

260 pcs rolled – some leg-in and some leg-out.  To various radii and configurations.

3" X 3" X 3/8" ANGLE A36

1 pc rolled leg-out to a 7’-7” radius

1 pc rolled leg-in to a 11’-0” radius

3" X 3" X ½" ANGLE A36

47 pcs rolled – some leg-in and some leg-out.  To various radii and configurations.

4" X 3" X ½" ANGLE A36

1 pc rolled leg-in to a 11’-0” radius
