DUCT COMPONENTS: ELBOWS


Albina is able to offer the following elbows direct from the factory (these are not stock items for Albina).


Elbows available from the factory include 30°, 45°, 60° and 90° elbows with 1D, 1.5D radius or 2.5D radius options, in sizes 3" through 24" diameter. Galvanized steel with tight seams and smooth interiors for quiet, efficient airflow. Elbows can come with rolled lip ends, plain ends or flanged ends (see image in the gored/segmented section).



Rolled Lip (one end is flanged): Stitch Welded, Rolled Lip Elbows Plain End: Stitch Welded, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Stitch Welded 90° (1.0D)

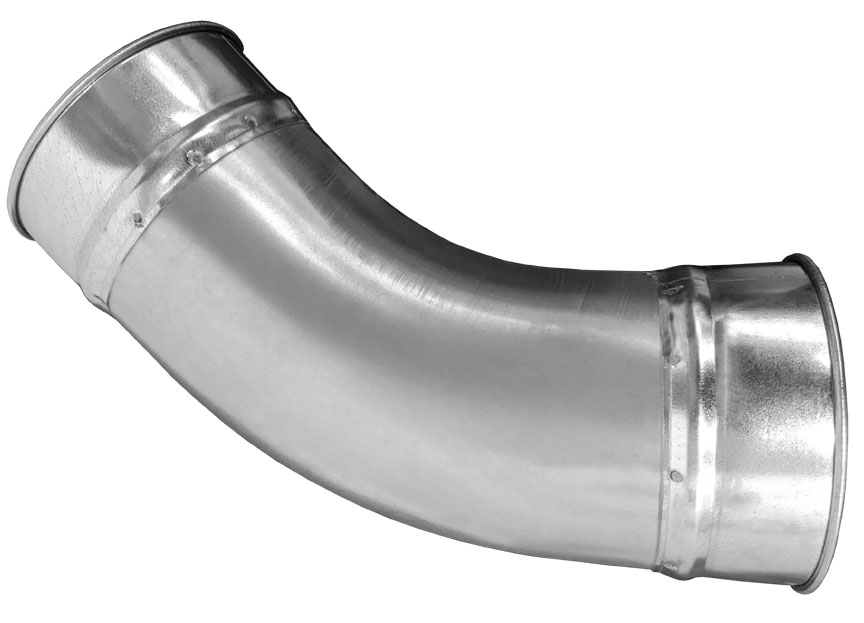

Stitch-welded elbows, or stitched halves, are galvanized metal elbows that are stamped out using mechanical presses and forming dies, resulting in a very tight elbow. The stamping process does limit the gauges that can be used with this kind of elbow, so when using larger sizes, the application should be limited to light dust or air.
RESD0390.G22 3" 1 90° Glv 22 1.6000
RESD0490.G22 4" 1 90° Glv 22 2.3000
RESD0590.G22 5" 1 90° Glv 22 3.0000
RESD0690.G22 6" 1 90° Glv 22 3.9000
RESD0790.G22 7" 1 90° Glv 22 4.9000
RESD0890.G22 8" 1 90° Glv 22 6.0000
RESD0990.G22 9" 1 90° Glv 22 7.2000
RESD1090.G22 10" 1 90° Glv 22 8.4000
RESD1290.G22 12" 1 90° Glv 22 11.3000
Rolled Lip (one end is flanged): Stitch Welded, Rolled Lip Elbows Plain End: Stitch Welded, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Stitch Welded 90° (1.5D)
Stitch-welded elbows, or stitched halves, are galvanized metal elbows that are stamped out using mechanical presses and forming dies, resulting in a very tight elbow. The stamping process does limit the gauges that can be used with this kind of elbow, so when using larger sizes, the application should be limited to light dust or air.
RESS0390.G22 3" 1.5 90° Glv 22 1.8000
RESS0490.G22 4" 1.5 90° Glv 22 2.6000
RESS0590.G22 5" 1.5 90° Glv 22 3.6000
RESS0690.G22 6" 1.5 90° Glv 22 4.8000
RESS0790.G22 7" 1.5 90° Glv 22 6.1000
RESS0890.G22 8" 1.5 90° Glv 22 7.5000
RESS0990.G22 9" 1.5 90° Glv 22 9.1000
RESS1090.G22 10" 1.5 90° Glv 22 10.8000
RESS1290.G22 12" 1.5 90° Glv 22 14.7000
Rolled Lip (one end is flanged): Stitch Welded, Rolled Lip Elbows Plain End: Stitch Welded, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Stitch Welded 45° (1.0D)
Stitch-welded elbows, or stitched halves, are galvanized metal elbows that are stamped out using mechanical presses and forming dies, resulting in a very tight elbow. The stamping process does limit the gauges that can be used with this kind of elbow, so when using larger sizes, the application should be limited to light dust or air.
RESD0345.G22 3" 1 45° Glv 22 0.8000
RESD0445.G22 4" 1 45° Glv 22 1.1000
RESD0545.G22 5" 1 45° Glv 22 1.5000
RESD0645.G22 6" 1 45° Glv 22 1.9000
RESD0745.G22 7" 1 45° Glv 22 2.4000
RESD0845.G22 8" 1 45° Glv 22 2.9000
RESD0945.G22 9" 1 45° Glv 22 3.5000
RESD1045.G22 10" 1 45° Glv 22 4.1000
RESD1245.G22 12" 1 45° Glv 22 5.1000
Rolled Lip (one end is flanged): Stitch Welded, Rolled Lip Elbows Plain End: Stitch Welded, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Stitch Welded 45° (1.5D)
Stitch-welded elbows, or stitched halves, are galvanized metal elbows that are stamped out using mechanical presses and forming dies, resulting in a very tight elbow. The stamping process does limit the gauges that can be used with this kind of elbow, so when using larger sizes, the application should be limited to light dust or air.
RESS0345.G22 3" 1.5 45° Glv 22 0.9000
RESS0445.G22 4" 1.5 45° Glv 22 1.3000
RESS0545.G22 5" 1.5 45° Glv 22 1.8000
RESS0645.G22 6" 1.5 45° Glv 22 2.3000
RESS0745.G22 7" 1.5 45° Glv 22 2.9000
RESS0845.G22 8" 1.5 45° Glv 22 3.6000
RESS0945.G22 9" 1.5 45° Glv 22 4.4000
RESS1045.G22 10" 1.5 45° Glv 22 5.2000
RESS1245.G22 12" 1.5 45° Glv 22 7.1000

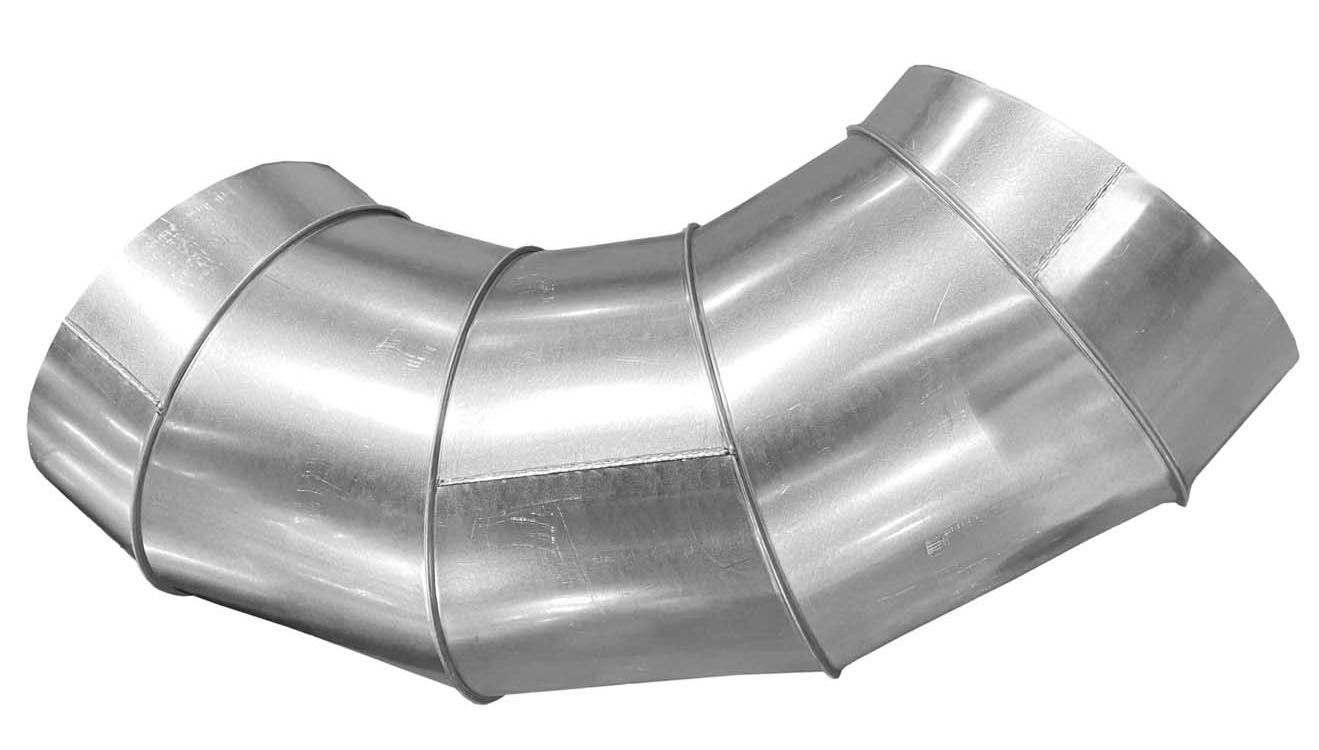

Rolled Lip (one end is flanged): Gored / Segmented, Rolled Lip Elbows Plain End: Gored / Segmented, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Gored / Segmented 90° (1.0D)

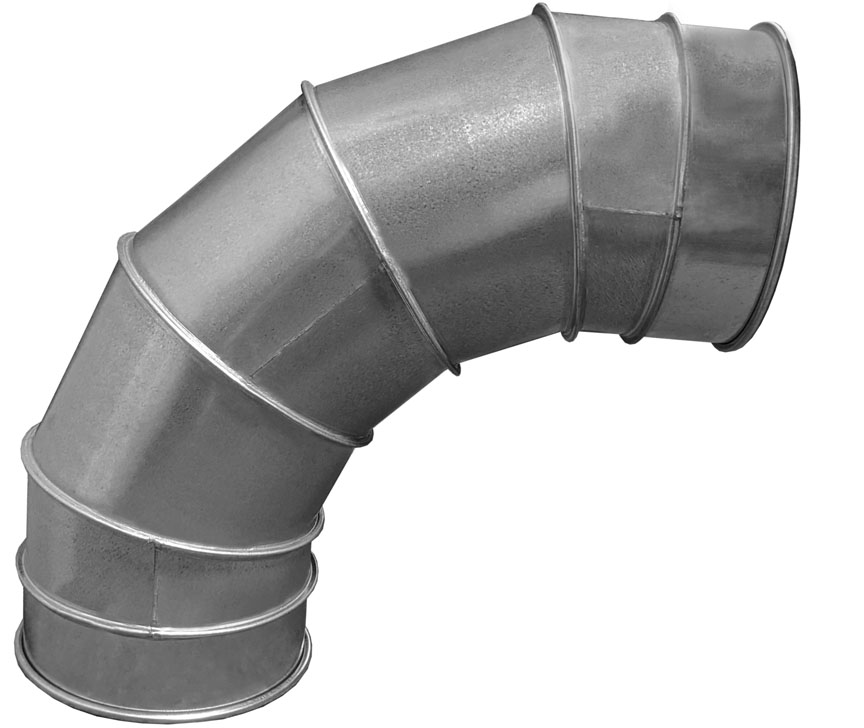

Sometimes called gored, gored segmented elbows, segmented elbows are joined together either mechanically or by welding. Using the mechanical method, up to 18 gauge steel can be utilized; heavier gauge metals must have the segments welded together. Albina has access to a complete line of segmented elbows in all gauges and various radii, and galvanized, stainless steel and carbon steel forms.
REGD0790.G20 7" 1 90° Glv 20 5.8000
REGD0890.G20 8" 1 90° Glv 20 7.1000
REGD0990.G20 9" 1 90° Glv 20 8.4000
REGD1090.G20 10" 1 90° Glv 20 9.9000
REGD1290.G20 12" 1 90° Glv 20 13.3000
REGD1490.G18 14" 1 90° Glv 18 21.7000
REGD1690.G18 16" 1 90° Glv 18 27.1000
REGD1890.G18 18" 1 90° Glv 18 33.0000
REGD2090.G18 20" 1 90° Glv 18 39.6000
REGD2290.G18 22" 1 90° Glv 18 46.7000
REGD2490.G18 24" 1 90° Glv 18 54.4000
Rolled Lip (one end is flanged): Gored / Segmented, Rolled Lip Elbows Plain End: Gored / Segmented, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Gored / Segmented 90° (1.5D)
Sometimes called gored, gored segmented elbows, segmented elbows are joined together either mechanically or by welding. Using the mechanical method, up to 18 gauge steel can be utilized; heavier gauge metals must have the segments welded together. Albina has access to a complete line of segmented elbows in all gauges and various radii, and galvanized, stainless steel and carbon steel forms.
REGS0790.G20 7" 1.5 90° Glv 20 7.2000
REGS0890.G20 8" 1.5 90° Glv 20 8.9000
REGS0990.G20 9" 1.5 90° Glv 20 10.7000
REGS1090.G20 10" 1.5 90° Glv 20 12.8000
REGS1290.G20 12" 1.5 90° Glv 20 17.3000
REGS1490.G18 14" 1.5 90° Glv 18 28.7000
REGS1690.G18 16" 1.5 90° Glv 18 36.3000
REGS1890.G18 18" 1.5 90° Glv 18 44.7000
REGS2090.G18 20" 1.5 90° Glv 18 54.0000
REGS2290.G18 22" 1.5 90° Glv 18 64.1000
REGS2490.G18 24" 1.5 90° Glv 18 75.1000
Rolled Lip (one end is flanged): Gored / Segmented, Rolled Lip Elbows Plain End: Gored / Segmented, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Gored / Segmented 90° (2.5D)
Sometimes called gored, gored segmented elbows, segmented elbows are joined together either mechanically or by welding. Using the mechanical method, up to 18 gauge steel can be utilized; heavier gauge metals must have the segments welded together. Albina has access to a complete line of segmented elbows in all gauges and various radii, and galvanized, stainless steel and carbon steel forms.
REGL0790.G20 7" 2.5 90° Glv 20 9.9000
REGL0890.G20 8" 2.5 90° Glv 20 12.5000
REGL0990.G20 9" 2.5 90° Glv 20 15.3000
REGL1090.G20 10" 2.5 90° Glv 20 18.4000
REGL1290.G20 12" 2.5 90° Glv 20 25.5000
REGL1490.G18 14" 2.5 90° Glv 18 42.8000
REGL1690.G18 16" 2.5 90° Glv 18 54.7000
REGL1890.G18 18" 2.5 90° Glv 18 68.0000
REGL2090.G18 20" 2.5 90° Glv 18 82.7000
REGL2290.G18 22" 2.5 90° Glv 18 98.9000
REGL2490.G18 24" 2.5 90° Glv 18 116.5000
Rolled Lip (one end is flanged): Gored / Segmented, Rolled Lip Elbows Plain End: Gored / Segmented, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Gored / Segmented 45° (1.0D)
Sometimes called gored, gored segmented elbows, segmented elbows are joined together either mechanically or by welding. Using the mechanical method, up to 18 gauge steel can be utilized; heavier gauge metals must have the segments welded together. Albina has access to a complete line of segmented elbows in all gauges and various radii, and galvanized, stainless steel and carbon steel forms.
REGD0745.G20 7" 1 45° Glv 20 2.8000
REGD0845.G20 8" 1 45° Glv 20 3.4000
REGD0945.G20 9" 1 45° Glv 20 4.1000
REGD1045.G20 10" 1 45° Glv 20 4.8000
REGD1245.G20 12" 1 45° Glv 20 6.4000
REGD1445.G18 14" 1 45° Glv 18 10.4000
REGD1645.G18 16" 1 45° Glv 18 13.0000
REGD1845.G18 18" 1 45° Glv 18 15.9000
REGD2045.G18 20" 1 45° Glv 18 19.0000
REGD2245.G18 22" 1 45° Glv 18 22.4000
REGD2445.G18 24" 1 45° Glv 18 26.1000
Rolled Lip (one end is flanged): Gored / Segmented, Rolled Lip Elbows Plain End: Gored / Segmented, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Gored / Segmented 45° (1.5D)
Sometimes called gored, gored segmented elbows, segmented elbows are joined together either mechanically or by welding. Using the mechanical method, up to 18 gauge steel can be utilized; heavier gauge metals must have the segments welded together. Albina has access to a complete line of segmented elbows in all gauges and various radii, and galvanized, stainless steel and carbon steel forms.
REGS0745.G20 7" 1.5 45° Glv 20 3.5000
REGS0845.G20 8" 1.5 45° Glv 20 4.3000
REGS0945.G20 9" 1.5 45° Glv 20 5.2000
REGS1045.G20 10" 1.5 45° Glv 20 6.2000
REGS1245.G20 12" 1.5 45° Glv 20 8.3000
REGS1445.G18 14" 1.5 45° Glv 18 13.8000
REGS1645.G18 16" 1.5 45° Glv 18 17.4000
REGS1845.G18 18" 1.5 45° Glv 18 21.5000
REGS2045.G18 20" 1.5 45° Glv 18 25.9000
REGS2245.G18 22" 1.5 45° Glv 18 30.8000
REGS2445.G18 24" 1.5 45° Glv 18 36.1000
Rolled Lip (one end is flanged): Gored / Segmented, Rolled Lip Elbows Plain End: Gored / Segmented, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Gored / Segmented 45° (2.5D)
Sometimes called gored, gored segmented elbows, segmented elbows are joined together either mechanically or by welding. Using the mechanical method, up to 18 gauge steel can be utilized; heavier gauge metals must have the segments welded together. Albina has access to a complete line of segmented elbows in all gauges and various radii, and galvanized, stainless steel and carbon steel forms.
REGL0745.G20 7" 2.5 45° Glv 20 4.8000
REGL0845.G20 8" 2.5 45° Glv 20 6.0000
REGL0945.G20 9" 2.5 45° Glv 20 7.4000
REGL1045.G20 10" 2.5 45° Glv 20 8.9000
REGL1245.G20 12" 2.5 45° Glv 20 12.3000
REGL1445.G18 14" 2.5 45° Glv 18 20.6000
REGL1645.G18 16" 2.5 45° Glv 18 26.3000
REGL1845.G18 18" 2.5 45° Glv 18 32.7000
REGL2045.G18 20" 2.5 45° Glv 18 39.7000
REGL2245.G18 22" 2.5 45° Glv 18 47.5000
REGL2445.G18 24" 2.5 45° Glv 18 56.0000

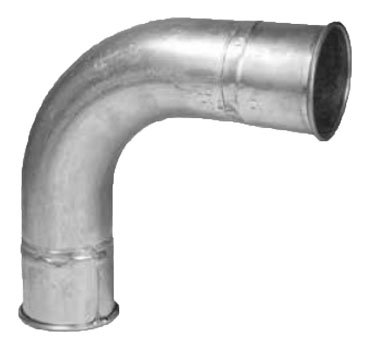

Rolled Lip (one end is flanged): Tubed, Rolled Lip Elbows Plain End: Tubed, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Tubed 90° (1.5D)
Because they have no seam, tubed duct elbows are an excellent choice for paper trim and oil mist applications. Instead, these galvanized or stainless steel elbows are mechanically bent, resulting in a non-seamed tubing that can be fitted with a rolled-lipped collar or an angle ring flange.
RETS0390.G16 3" 1.5 90° Glv 16 3.3000
RETS0490.G16 4" 1.5 90° Glv 16 4.9000
RETS0590.G14 5" 1.5 90° Glv 14 8.3000
RETS0690.G16 6" 1.5 90° Glv 16 8.9000
RETS0890.G16 8" 1.5 90° Glv 16 13.9000
Rolled Lip (one end is flanged): Tubed, Rolled Lip Elbows Plain End: Tubed, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Tubed 90° (2.5D)
Because they have no seam, tubed duct elbows are an excellent choice for paper trim and oil mist applications. Instead, these galvanized or stainless steel elbows are mechanically bent, resulting in a non-seamed tubing that can be fitted with a rolled-lipped collar or an angle ring flange.
RETL0390.G16 3" 2.5 90° Glv 16 4.1000
RETL0490.G16 4" 2.5 90° Glv 16 6.3000
RETL0590.G14 5" 2.5 90° Glv 14 11.0000
RETL0690.G14 6" 2.5 90° Glv 14 14.8000
RETL0890.G14 8" 2.5 90° Glv 14 24.2000
Rolled Lip (one end is flanged): Tubed, Rolled Lip Elbows Plain End: Tubed, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Tubed 45° (1.5D)
Because they have no seam, tubed duct elbows are an excellent choice for paper trim and oil mist applications. Instead, these galvanized or stainless steel elbows are mechanically bent, resulting in a non-seamed tubing that can be fitted with a rolled-lipped collar or an angle ring flange.
RETS0345.G16 3" 1.5 45° Glv 16 1.6000
RETS0445.G16 4" 1.5 45° Glv 16 2.4000
RETS0545.G14 5" 1.5 45° Glv 14 4.0000
RETS0645.G16 6" 1.5 45° Glv 16 4.3000
RETS0845.G14 8" 1.5 45° Glv 14 8.3000
Rolled Lip (one end is flanged): Tubed, Rolled Lip Elbows Plain End: Tubed, Plain End Elbows Note: images are representative of type of elbow, not necessarily degree or D of bend, etc.
Part # Dia. D of Bend Degree Finish GA Weight-Lbs.
Elbows - Tubed 45° (2.5D)
Because they have no seam, tubed duct elbows are an excellent choice for paper trim and oil mist applications. Instead, these galvanized or stainless steel elbows are mechanically bent, resulting in a non-seamed tubing that can be fitted with a rolled-lipped collar or an angle ring flange.
RETL0345.G16 3" 2.5 45° Glv 16 2.0000
RETL0445.G16 4" 2.5 45° Glv 16 3.0000
RETL0545.G14 5" 2.5 45° Glv 14 5.3000
RETL0645.G14 6" 2.5 45° Glv 14 7.1000
RETL0845.G14 8" 2.5 45° Glv 14 11.6000
