Plate Rolling

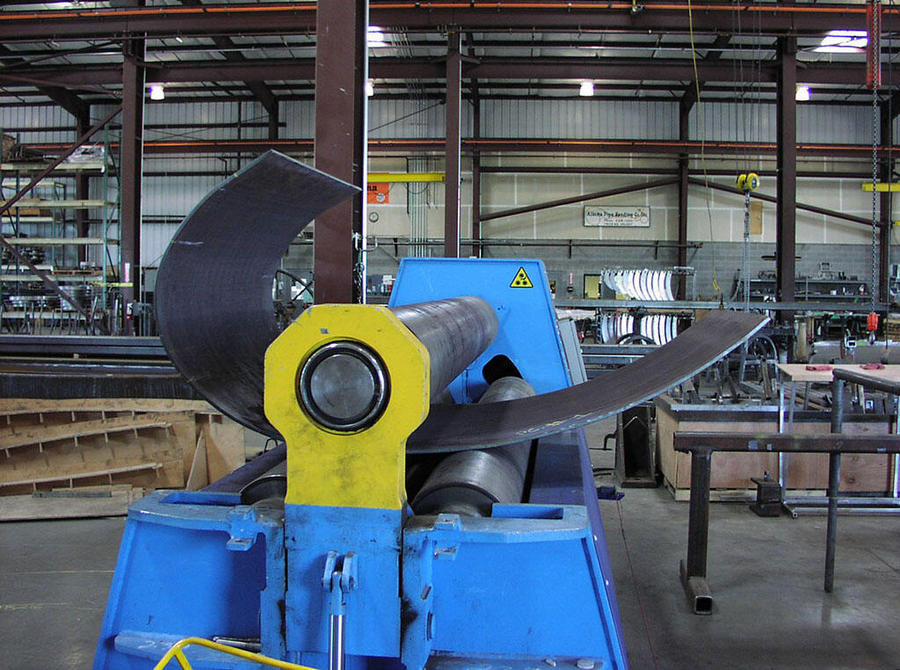

Plate Rolling is the typical method of curving plate (i.e. sheet of material) into round / cylindrical or conical shapes. This method of rolling is similar to the pyramid rolling method where individual "shafts / rolls" turn independently to form the sheet of material to desired radii. Capacity is defined by thickness of material and overall width of material. A section of plate is placed in a machine and curved between three or four rolls. Bending occurs when the distance between these rolls is manipulated before each successive pass. The diameter that a plate roll can roll a piece of plate will be limited to the roller diameter in the plate roll (i.e. one can’t roll plate to a diameter tighter then the plate roller die itself).
Albina's plate rolling equipment includes:

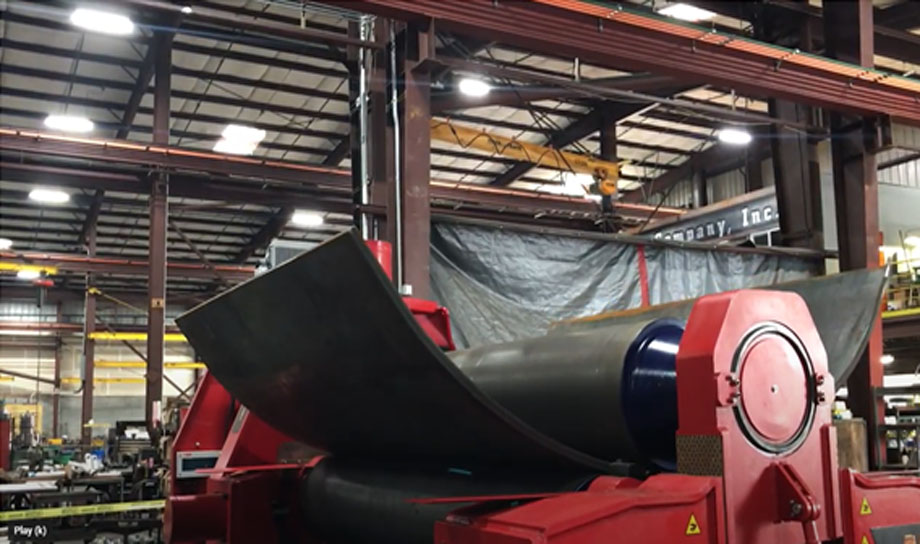

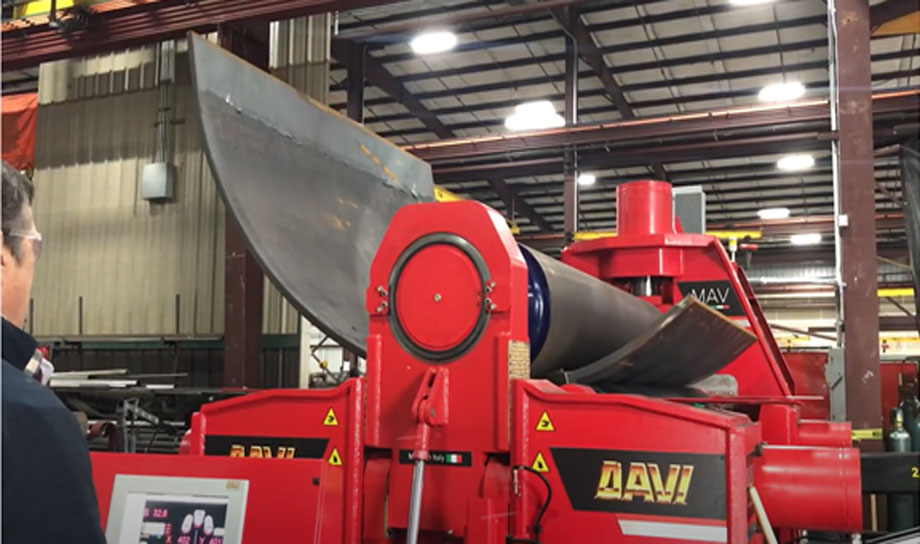

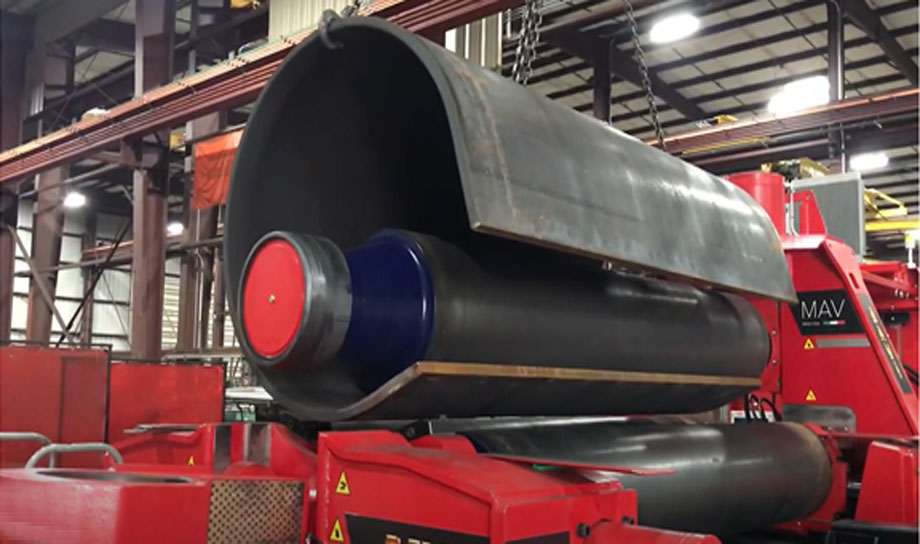

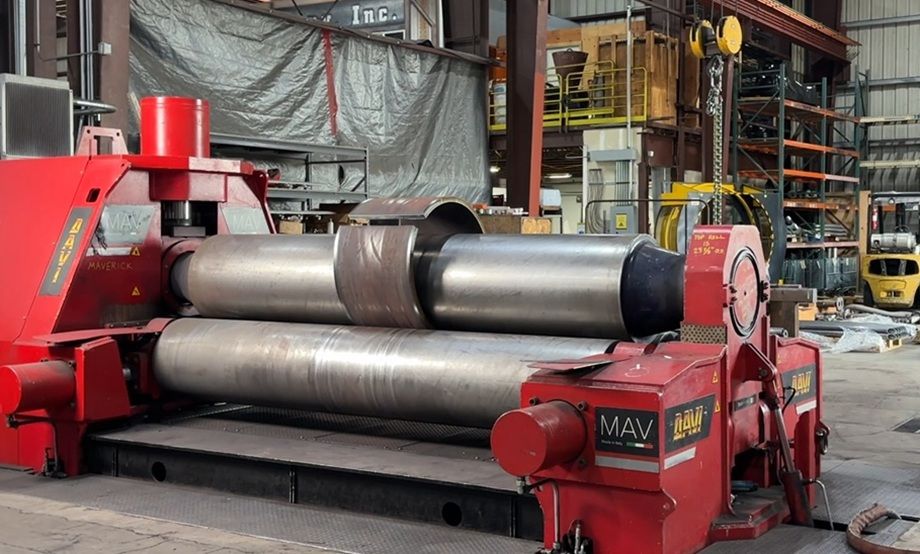

LARGE PLATE ROLL: 2½" thick x 10 ft wide A36 material. The largest diameter we can roll off this machine is up to a 12 ft diameter and we are limited to 20,000# sheets of material (which is our crane capacity). The opening between rolls is 4¾", which is the limit to thickness that can fit in this machine.

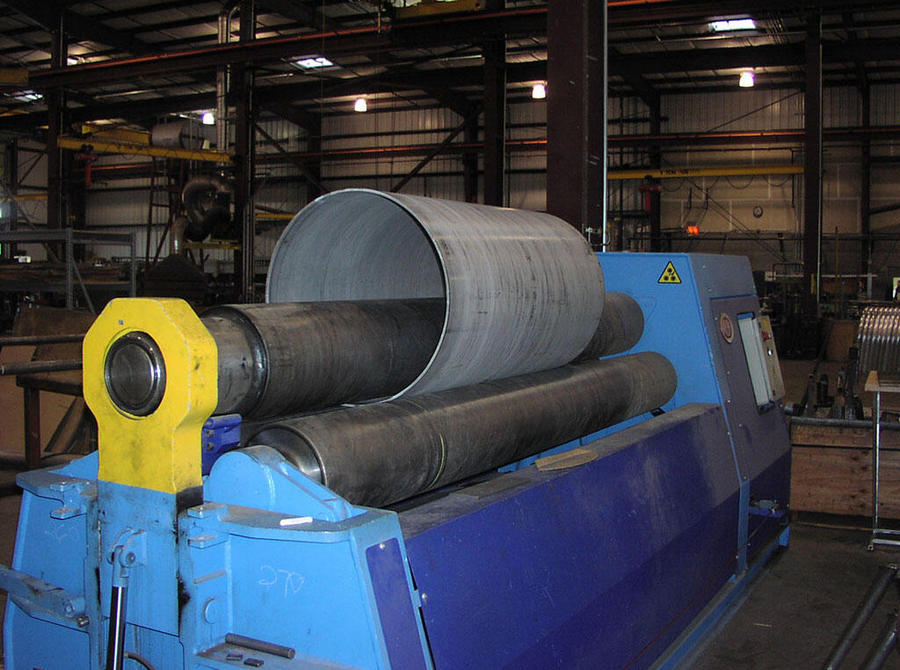

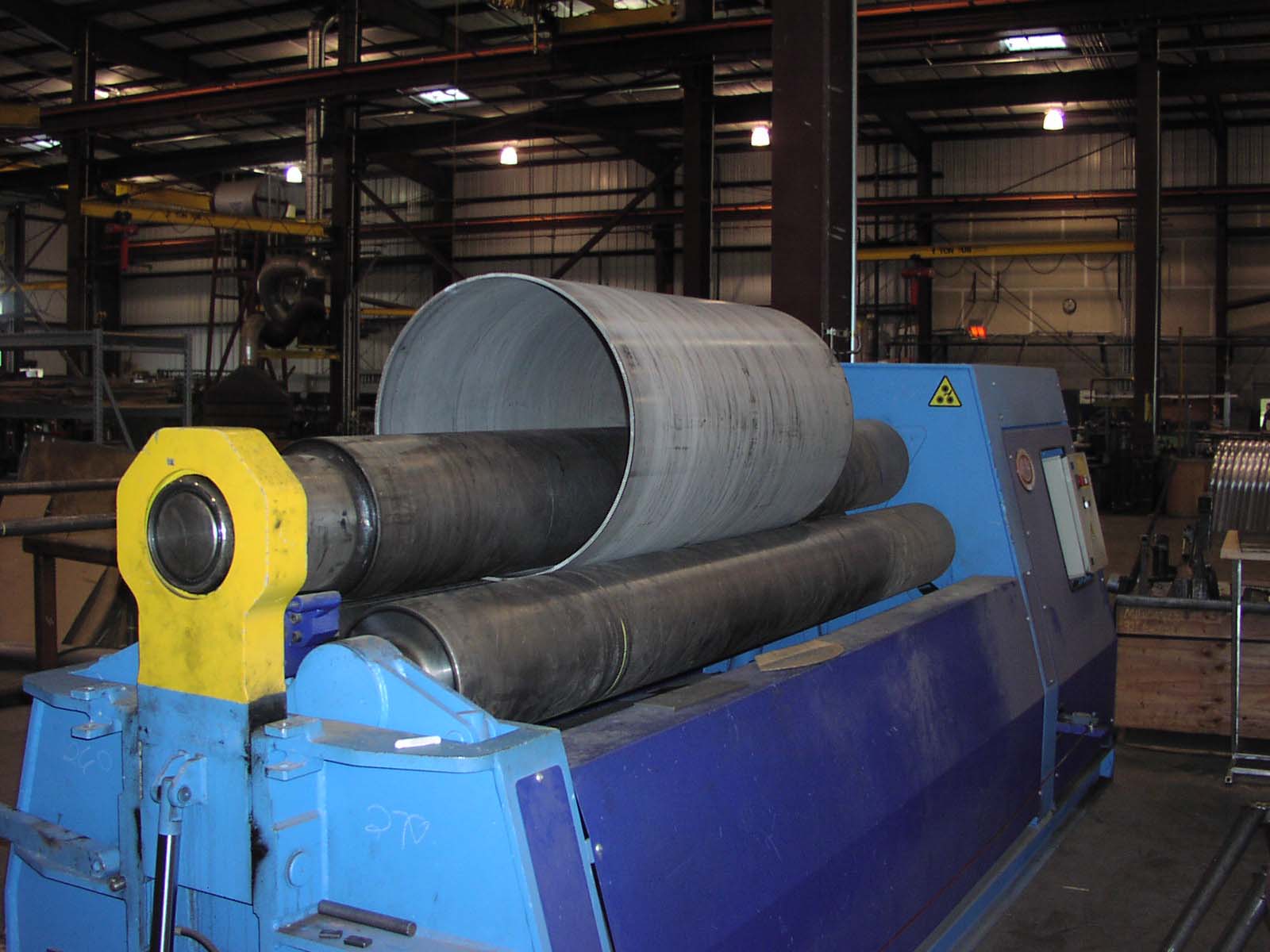

MEDIUM PLATE ROLL: ¾" thick x 10 ft wide A36 material. On this machine we can roll down to a 14¾" diameter.

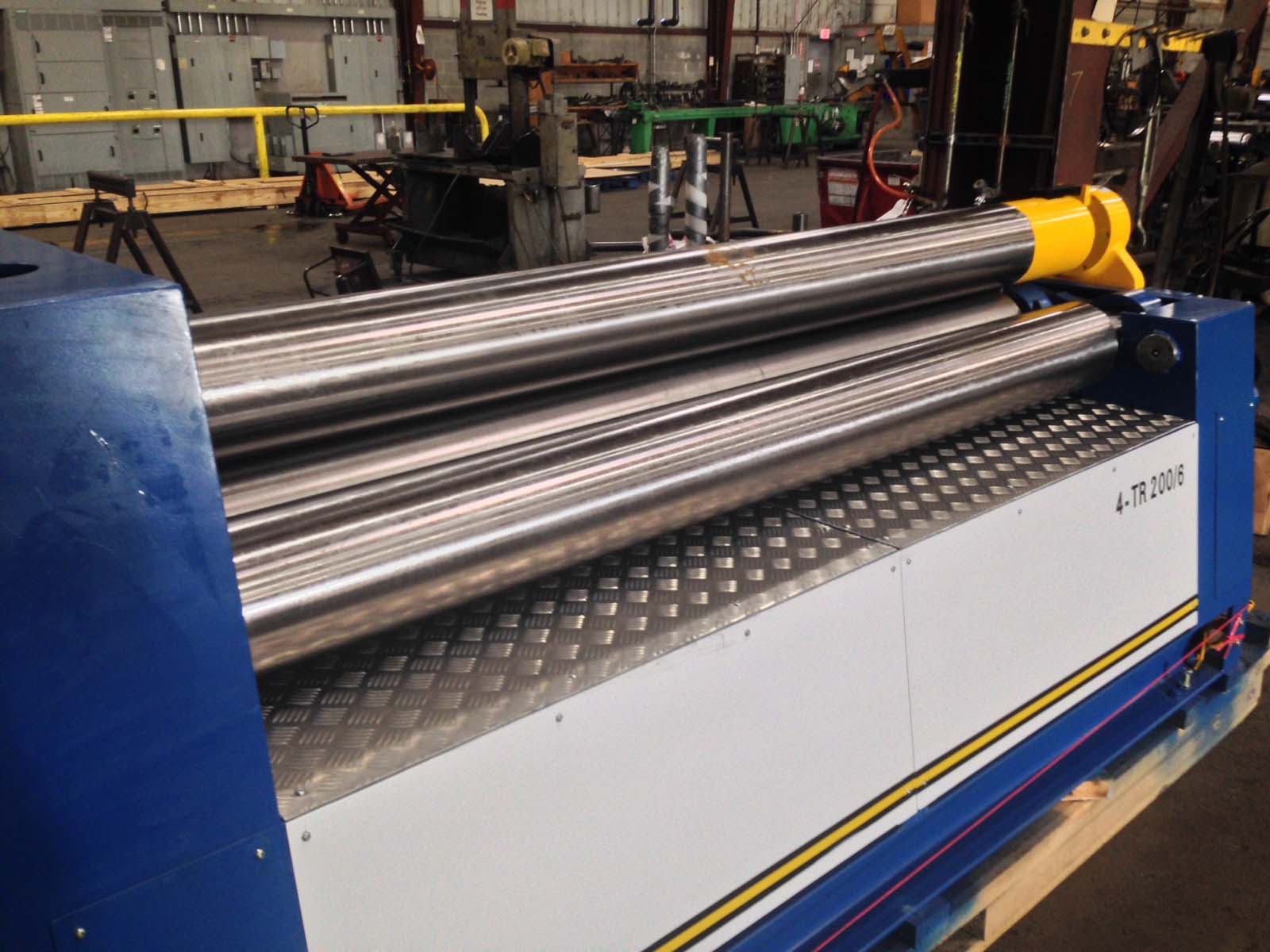

SMALL PLATE ROLL: This machine can roll up to 3/8" thick x 6 ft wide A36 material. The tightest we can bend is 8.66" inside diameter on ¼" thick x 2 ft wide A36 material.

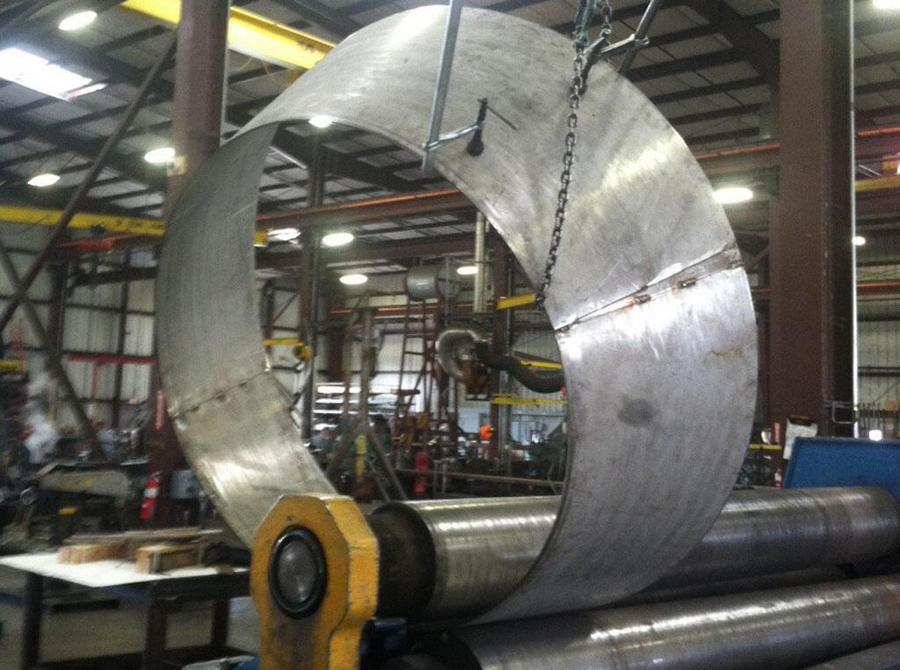

1" x 96" A36 Plate being rolled down to a 52" ID Part 1
1" x 96" A36 Plate being rolled down to a 52" ID Part 2
1" x 96" A36 Plate being rolled down to a 52" ID Part 3
Plate 1¼" Thick X 15½" Wide T1
To see examples of the various cylindrical and conical shapes we have created please refer to our Steel Bending Profiles: Plate Page.
