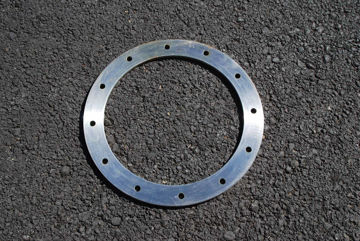

DUCT SYSTEMS & COMPONENT PARTS: PLATE FLANGES



Mild steel, non-pressure rated, flat rings; utilized where piping sections of heavy gauge tube or pipe are connected. Primarily used in Pneumatic Conveying or Chip Conveying Systems. All plate flanges are predrilled for easy alignment and installation.


Pipe OD Flange ID Flange OD Flange Thickness BC No. Holes Hole Size Weight LBS. Albina Stock Factory Direct
4-1/2" 4-9/16" 7-1/16" 3/16" 6" 4 15/32" 1.8 no yes
5-9/16" 5-5/8" 8-1/16" 3/16" 7" 8 9/16" 2.1 no yes
6-5/8" 6-11/16" 10-1/8" 1/4" 9" 8 9/16" 4 no yes
6" 6-1/16" 10-1/16" 1/4" 9" 8 9/16" 4 no yes
8-5/8" 8-11/16" 13-1/8" 1/4" 11-1/4" 8 9/16" 6 no yes
8" 8-1/16" 13-1/16" 1/4" 11-1/4" 8 9/16" 6.5 no yes
10-3/4" 10-13/16" 14-13/16" 3/8" 13-3/8" 12 9/16" 9 no yes
10" 10-1/16" 14-13/16" 3/8" 13-3/8" 12 9/16" 9.25 no yes
12-3/4" 12-13/16" 16-13/16" 3/8" 15-1/4" 12 9/16" 11 no yes
12" 12-1/16" 16-13/16" 3/8" 15-1/4" 12 9/16" 11.9 no yes
14" 14-1/16" 18-1/16" 3/8" 16-1/4" 12 9/16" 12 no yes
16" 16-1/16" 21-1/16" 3/8" 19-1/4" 12 9/16" 16 no yes
18" 18-1/16" 23-1/16" 3/8" 21-1/4" 16 11/16" 20 no yes
20" 20-1/16" 25-1/16" 1/2" 23-1/8" 16 11/16" 25.1 no yes
22" 22-1/16" 28-1/16" 1/2" 26" 16 11/16" 33.6 no yes
24" 24-1/8" 30-1/16" 1/2" 27-3/4" 16 11/16" 36.2 no yes
26" 26-1/8" 32-1/16" 1/2" 29-3/4" 20 13/16" 38.8 no yes
