Hayward Field Jumbotron Takes First Place for Impressive Presentation
Hayward Field Jumbotron Takes First Place for Impressive Presentation

Albina bent 101,000#’s of steel for structural base of the new jumbotron at Hayward Field at the University of Oregon.

Materials bent included:

20 lens x 50 ft: 10¾" OD X .375" WALL A500 GR. C
Bent 43 pieces to various radii ranging from 5'-3" up to 224'-4" all to AESS standards.

19 lens x 60 ft: 12¾" OD X .375" WALL A500 GR. C
Bent 27 pieces to various radii ranging from 5'-11" up to 208'-8" all to AESS standards.

1 len x 42 ft: 12¾" OD X .500" WALL A500 GR. C
Bent 3 pieces to a 4'-6" radius all to AESS standards.

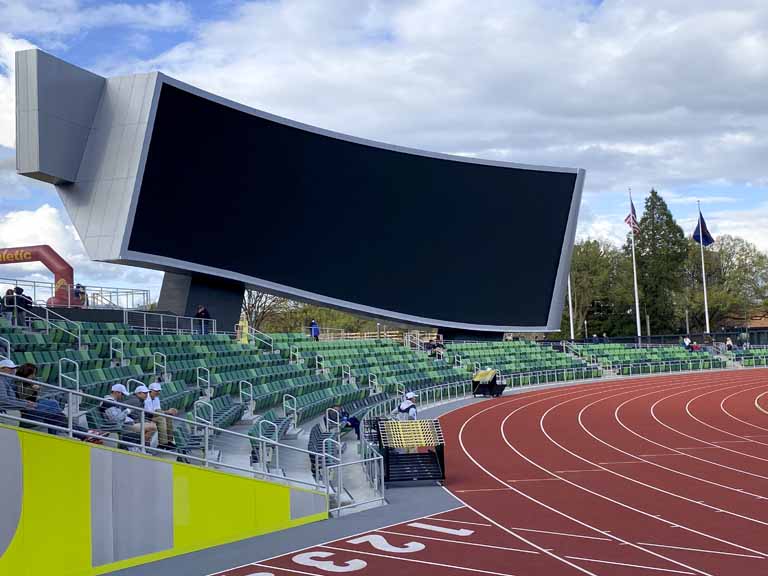

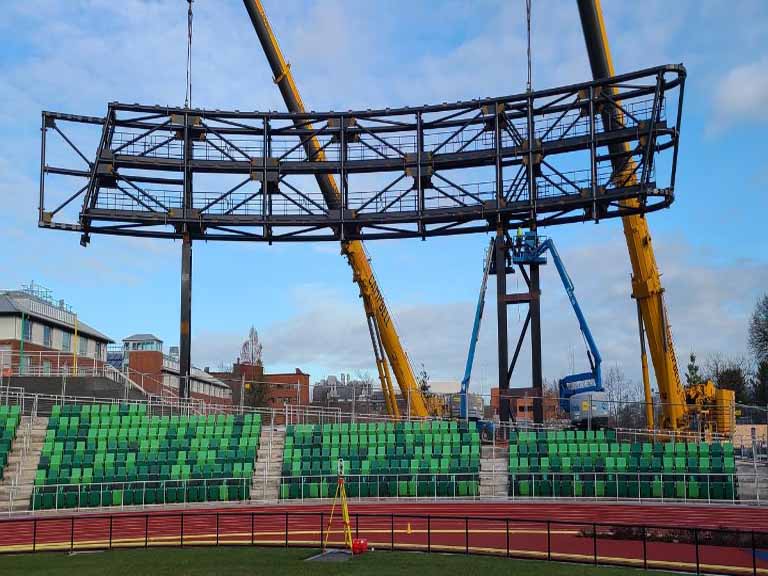

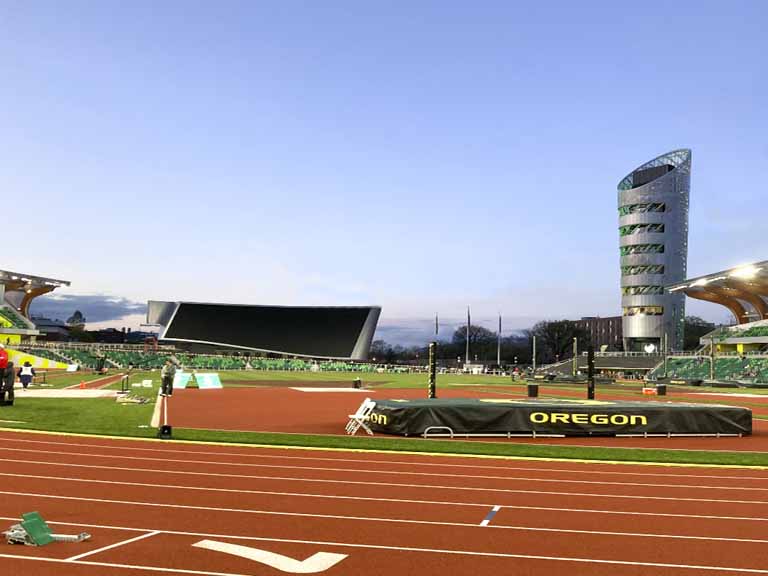

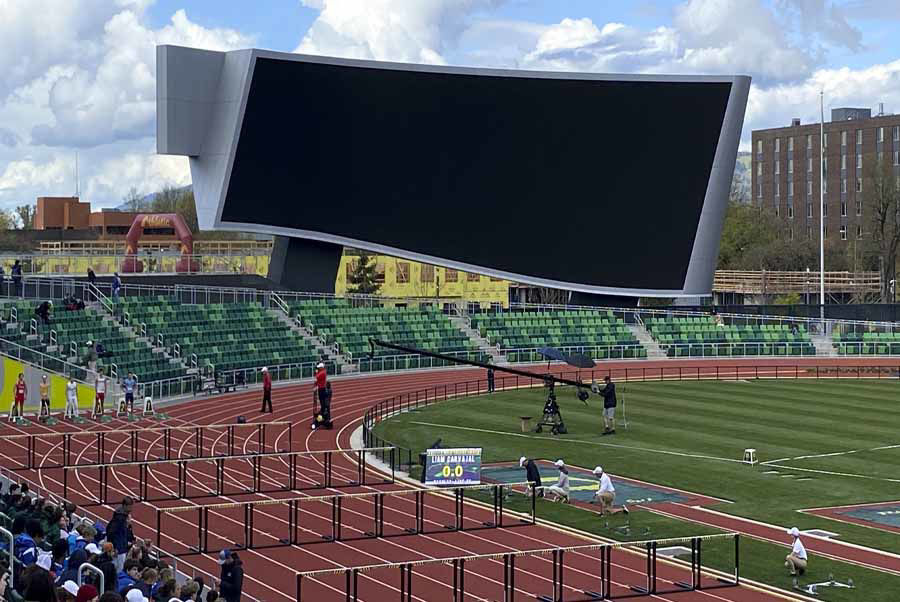

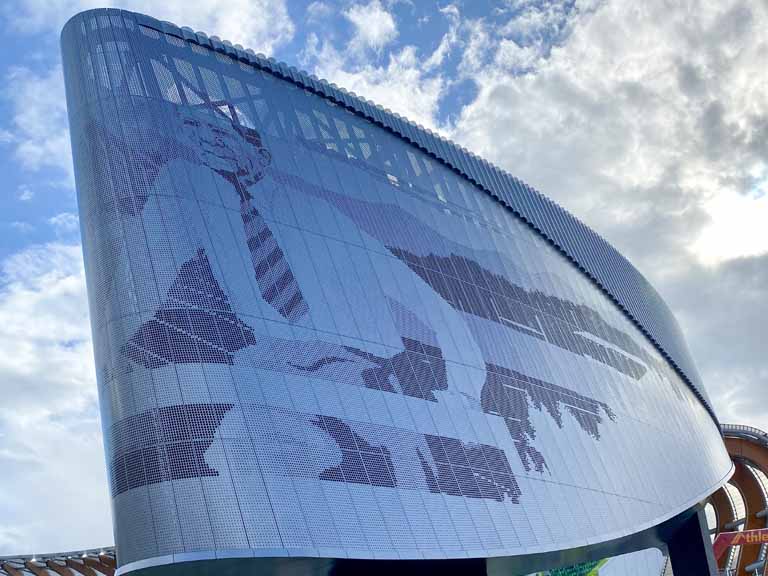

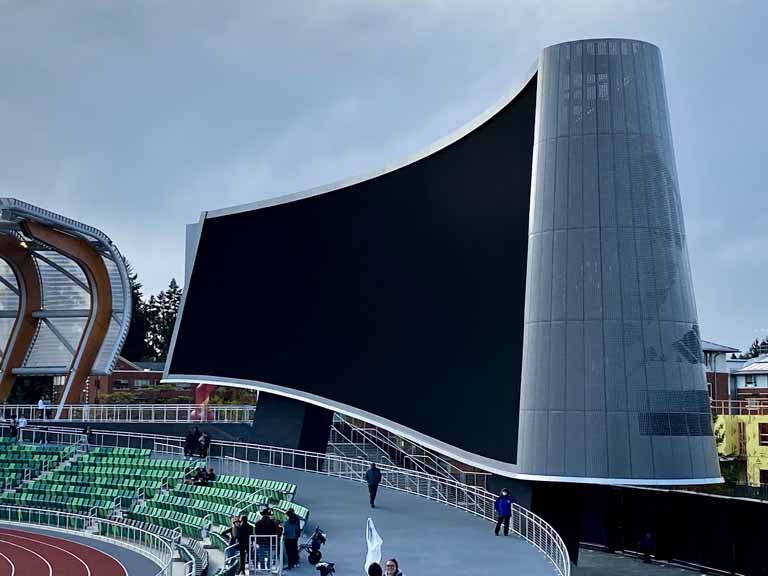

Hayward Field Curved Steel Jumbotron University of Oregon

Hayward Field Curved Steel Jumbotron University of Oregon

Hayward Field Curved Steel Jumbotron University of Oregon

Hayward Field Curved Steel Jumbotron University of Oregon

Hayward Field Curved Steel Jumbotron University of Oregon

Hayward Field Curved Steel Jumbotron University of Oregon

Photo credit @cheryjsproul and @brookesmithphotography

Newly Renovated Restoration Hardware Retail Store Features Gorgeous Spiral Staircase
Newly Renovated Restoration Hardware Retail Store Features Gorgeous Spiral Staircase

Restoration Hardware’s newest San Francisco gallery spans all 5 stories of the historic and newly renovated Bethlehem Steel Building and features a gorgeous spiral staircase! You can visit the Bethlehem Steel Building on the corner of Illinois and 20th Street in the Dogpatch. Materials Albina rolled for the spiral staircase included:

20 lengths x 20 ft 1½" OD X .120" WALL HREW
4 pcs spiraled to a 8’-11” radius
4 pcs spiraled to a 4’-5” radius
4 pcs spiraled to a 8’-9” radius
1 pc bent flat to a 4’-5” radius
1 pc bent flat to a 8’-9” radius
1 pc bent to a 10” radius
6 lengths x 20 ft FB ½" X 2" A36
All material was rolled flat to a recalculated radius- customer to pull to pitch.
6 pcs bent to a 4’-1” radius the hardway
20 pcs bent to a 9’-0” radius the hardway
6 lengths x 20 ft C2 X 1 X .188 A36
All material was rolled flat to a recalculated radius- customer to pull to pitch.
6 pcs bent to a 4’-1” radius the hardway
10 pcs bent to a 9’-5” radius the hardway
144 pcs PL ¼" X 1'-2½" A572-50
24 pcs PL ¼" X 2'-4" A572-50
C15 X 33.9# A36
4 pcs bent to a 4’-3” radius the flanges in
5 pcs bent to a 8’-11” radius the flanges out
C12 X 20.7# A36
4 pcs bent to various radii the flanges in
2 pcs bent to various radii the flanges out

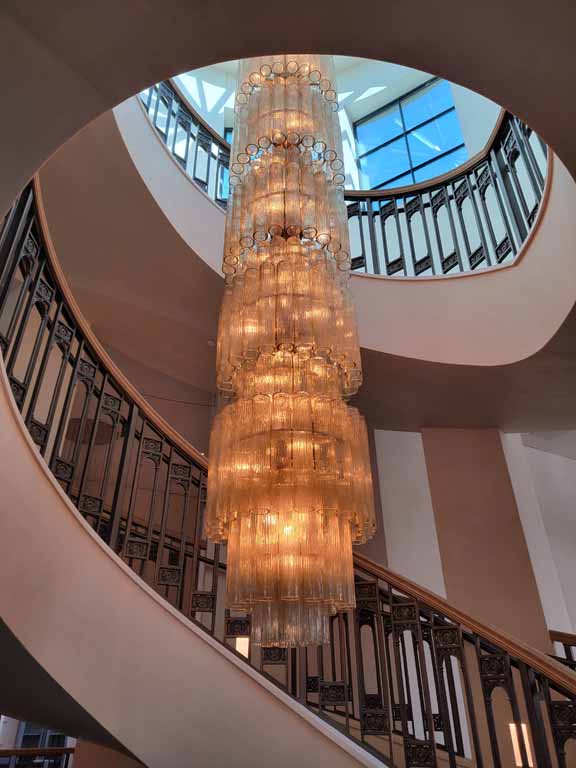

Spiral Staircase at Restoration Hardware Pier 70 San Francisco

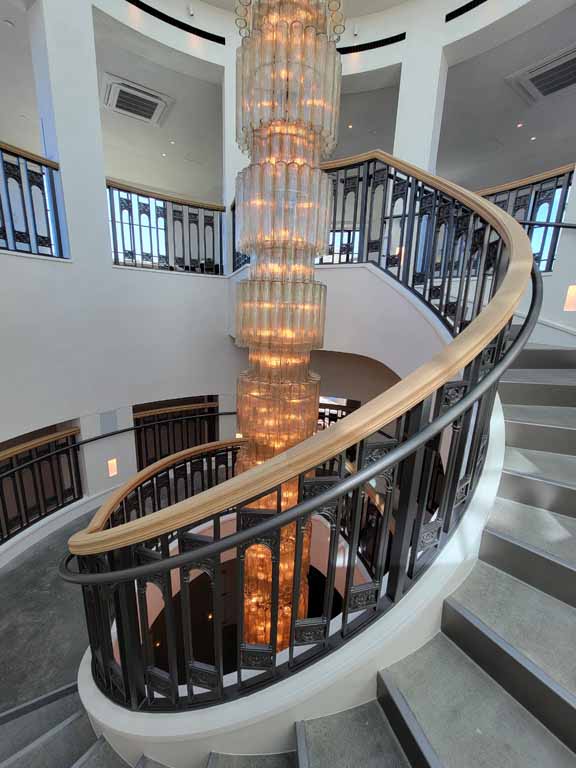

Spiral Staircase at Restoration Hardware Pier 70 Bethlehem Steel Building

The Buddy Holly Hall of Performing Arts and Sciences is a 2022 IDEAS2 National Award Winner!
The Buddy Holly Hall of Performing Arts and Sciences is a 2022 IDEAS2 National Award Winner!

The Buddy Holly Hall of Performing Arts and Science in Lubbock, Texas is a 220,000 square foot state-of-the-art campus featuring two theaters, event space, a full-service bistro and a ballet academy under one roof. Albina bent various materials for the signature spiral staircase in the Christine DeVitt Lobby. See the video below to get a sneak peek inside!



The projects is featured in the May edition of Modern Steel Construction. For more details on the entire project and to see a full list of winners check out AISC's website



TS 16" X 8" X .625" WALL A500 GR C
16 pcs: Spiral bend the easy way
Bent down to a 7 ft plan view radius.



TS 10" X 6" X .625" WALL A500 GR C
10 pcs: Spiral bend the hard way
Bend down to a 14' 11" plan view radius.





Steel Spiral Stringers for The Buddy Holly Hall of Arts & Sciences

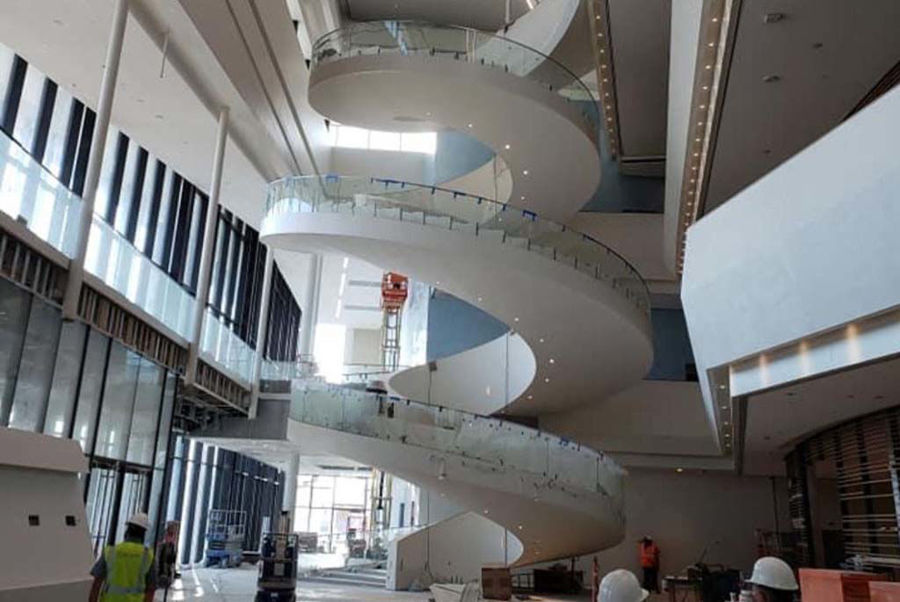

Top Down view of the Steel Spiral Staircase at The Buddy Holly Hall of Arts & Sciences





Steel Tree-Like Columns and Curved “Steel” Branches Create a Biophilic-Inspired Archway Entrance for the Freyer-Newman Center at the Denver Botanical Gardens
Steel Tree-Like Columns and Curved “Steel” Branches Create a Biophilic-Inspired Archway Entrance for the Freyer-Newman Center at the Denver Botanical Gardens

Albina bent 40,000# of steel for the steel tree-like columns and curved “steel” branches that create the biophilic-inspired archway entrance for the Freyer-Newman Center at the Denver Botanical Gardens. Albina bent 60 pieces of W8 X 31# A992 the hard way to a full scale layout. We also bent Tube Steel 8" X 6" X .500" WALL A500 GR B the hard way and MC8 X 20# A36 the hard way. The Freyer - Newman Center is a LEED GOLD building, designed by Denver’s Davis Partnership Architects. The Center houses six classrooms; four galleries; new herbaria for vascular plants, mushrooms and slime molds; laboratories; a new library and a coffee shop. Steel Tree-Like Columns and Curved Steel Branches for the Freyer-Newman Center at the Denver Botanical Gardens

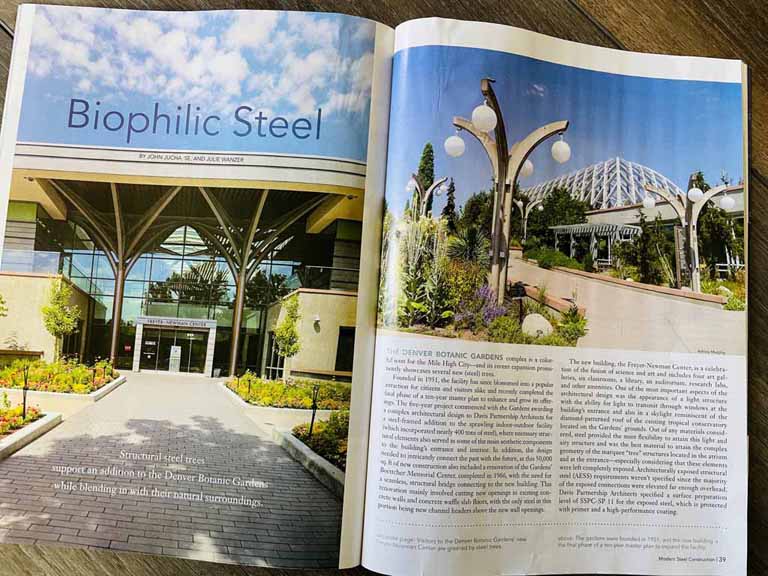

The project was featured in the April Issue of Modern Steel.

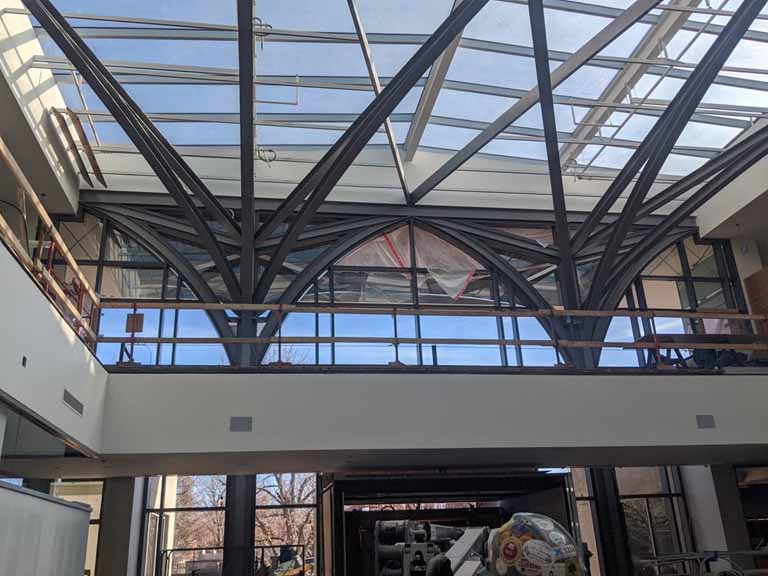

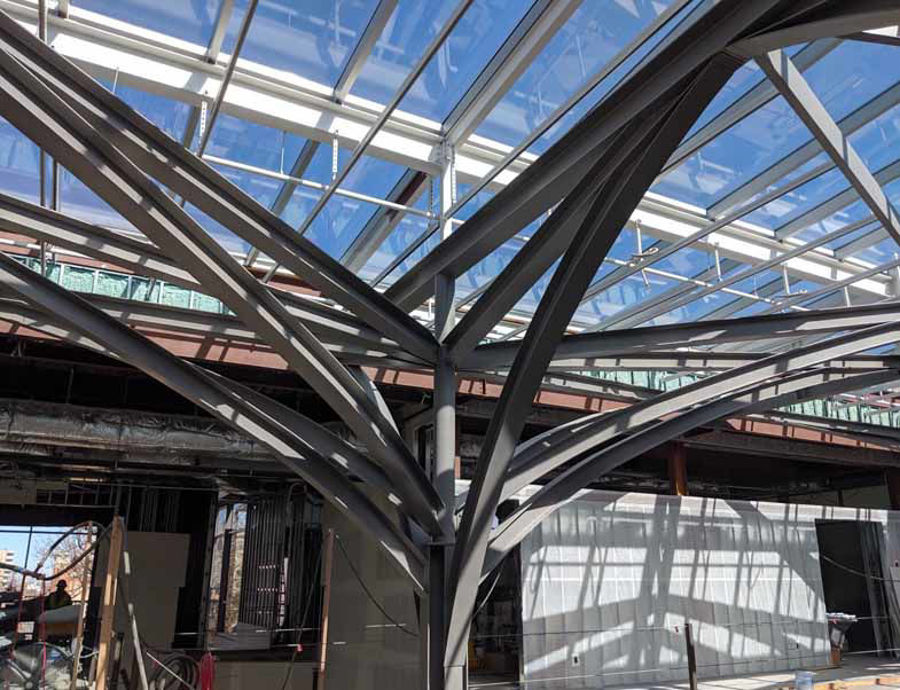

Steel tree-like columns and curved steel branches for the Freyer-Newman Center at the Denver Botanical Gardens
