Apartment Complex Handrails
Apartment Complex Handrails

Check out these curved handrails Albina did for 4 different apartment complexes located near Salem, Oregon. For these projects Albina bent 2,476 pcs of pipe to a 3” radius, and coped 6,437 pcs, totaling 8,913 pcs! You could say that Albina is apartment handrail bending experts!

The Grove Apartment Complex
1¼” SCH40 A53B ERW UNCOATED
2292 pcs - 591 pcs bent to a 3” radius, 1,701 pcs coped
1¼” SCH40 A500B UNCOATED
208 pcs - 120 pcs bent to a 3” radius, 88 pcs coped

Crawford Crossing Apartment Complex
1¼” SCH40 A53B ERW UNCOATED
56 pcs – 28 pcs bent to a 3” radius, 28 pcs coped
1¼” SCH40 A53B ERW WHEELED
1144 pcs – 337 pcs bent to a 3” radius, 807 pcs coped

Jory Apartment Complex
1¼” SCH40 A53B ERW WHEELED
1236 pcs – 495 pcs bent to a 3” radius, 741 pcs coped
1¼” SCH40 A53B ERW WHEELED
1968 – 328 pcs bent to a 3” radius, 1,640 pcs coped

Southtown Apartment Complex
1¼” SCH40 A53A UNCOATED
2009 pcs – 577 pcs bent to a 3” radius, 1,432 pcs coped

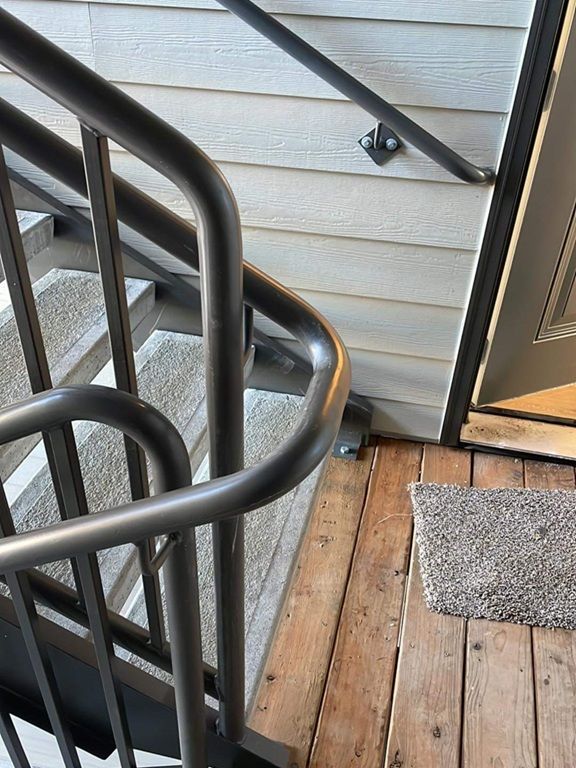

Curved handrail apartment complex close up image Jory

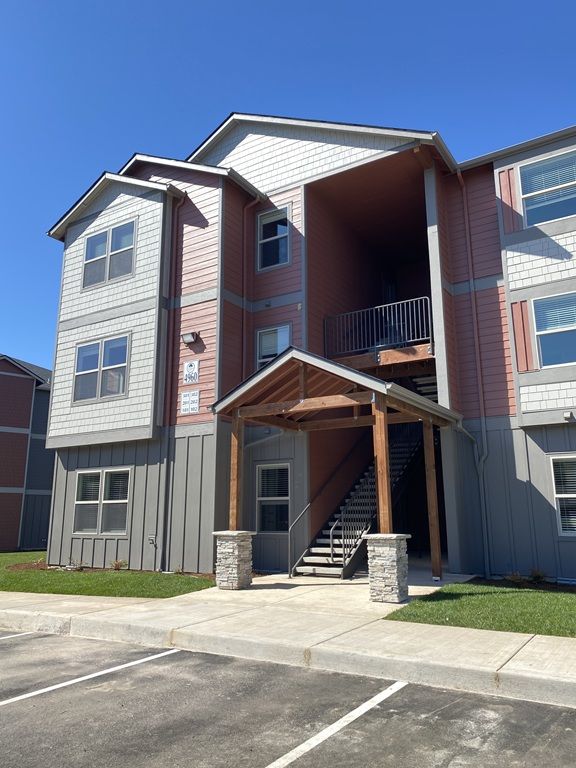

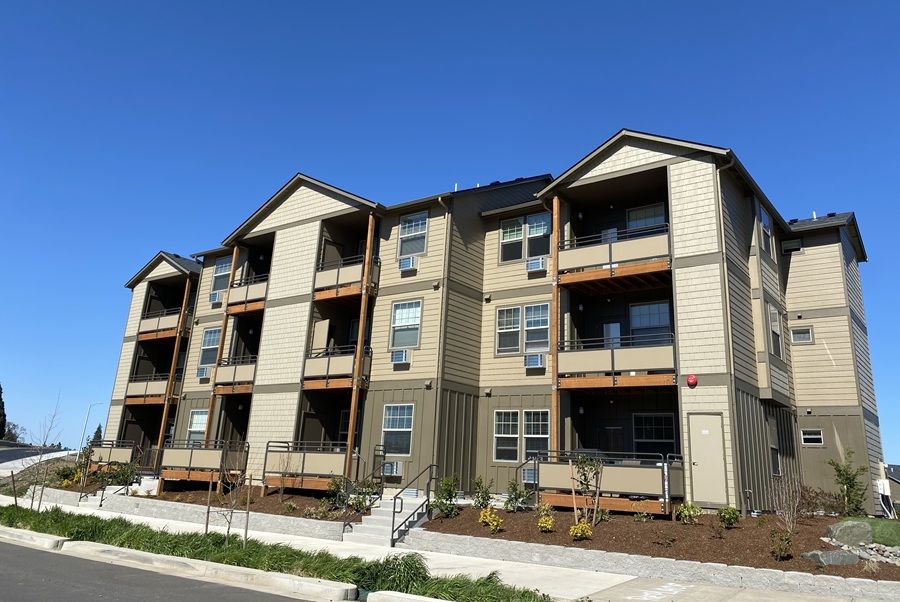

Curved handrail apartment complex front view Crawford Crossing

Curved handrail apartment complex close up image stair bottom Jory

Curved handrail apartment complex front view image Crawford Crossing

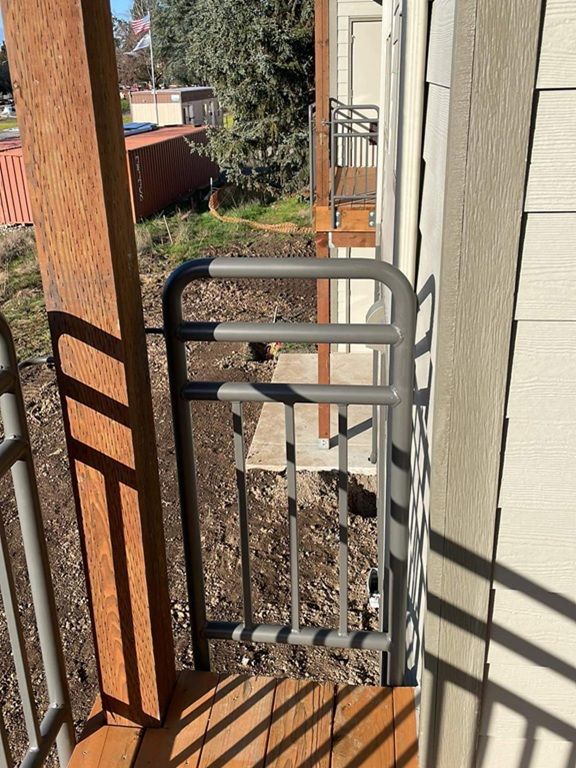

Curved handrail apartment complex close up image balcony Jory

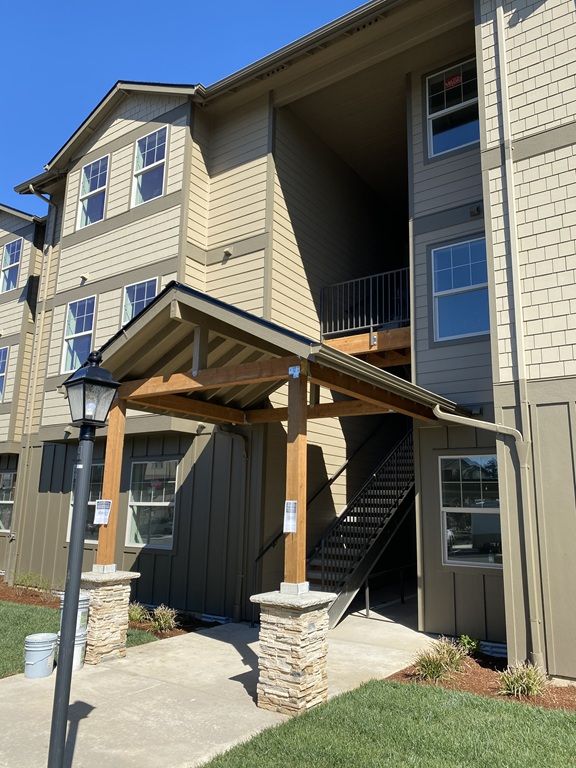

Curved handrail apartment complex front view image The Grove

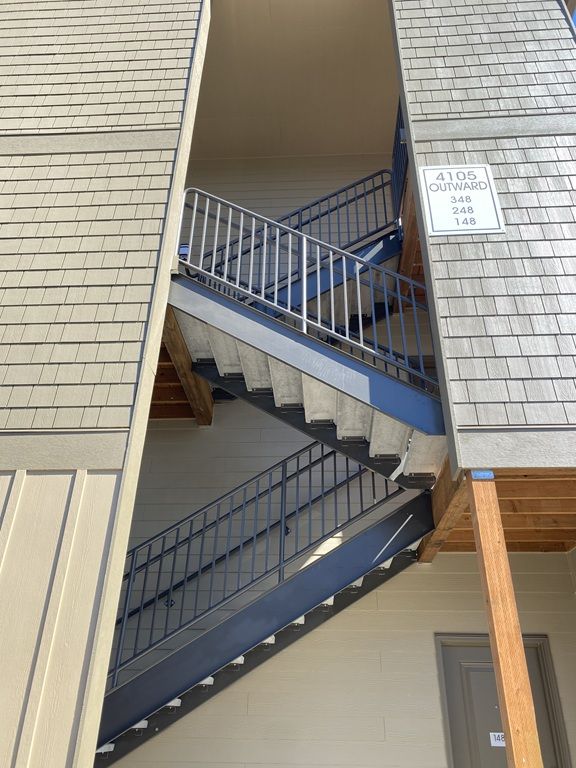

Curved handrail apartment complex ground view Jory



Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon
Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon

The Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon consists of 2 buildings containing collaborative labs, classrooms, and an innovation center. The labs are designed as relaxing, stimulating environments encouraging teamwork and innovation. The building was full of friendly people and lots of advanced technology! On our tour we saw the 3 spiral staircases, and the sky bridge that Albina did the bending for. For the stairs Albina bent 8 pcs of 2” Thick X 8” Wide A572 GR 50 Plate, 8 pcs of 2” Thick X 8” Wide A572 GR 50 Plate (with stitch cuts), and 16 pcs of 1” Thick X 8” Wide A572 GR 50 Plate (with stitch cuts). For the sky bridge Albina bent 22″ OD x 1″ Wall Carbon Steel Pipe to a 105 foot center-line radius. The bridge spans Franklin Boulevard and serves as a connector between campus and other U of O research facilities. Next time you are in Eugene, be sure to check out the Knight Campus!

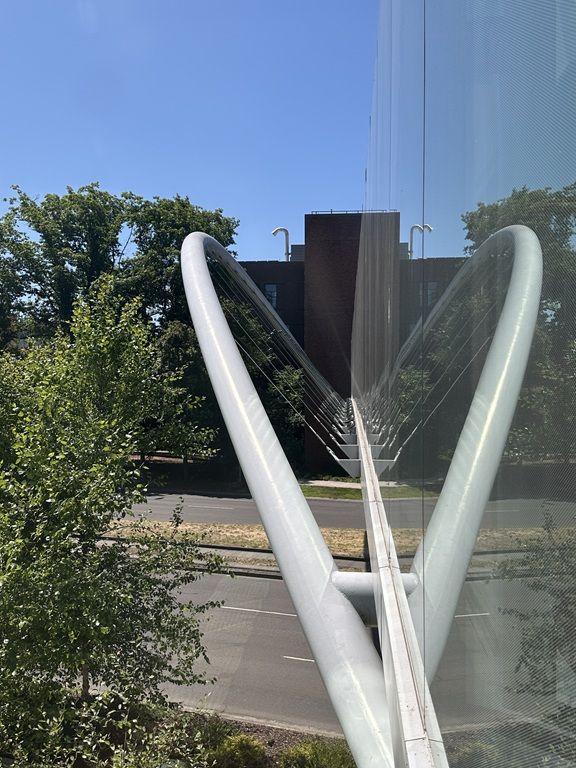

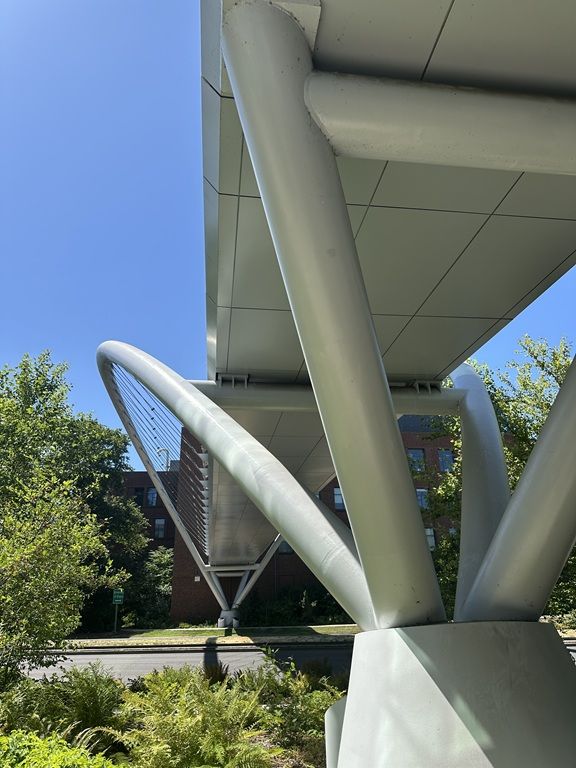

Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon under bridge view

Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon inside building view

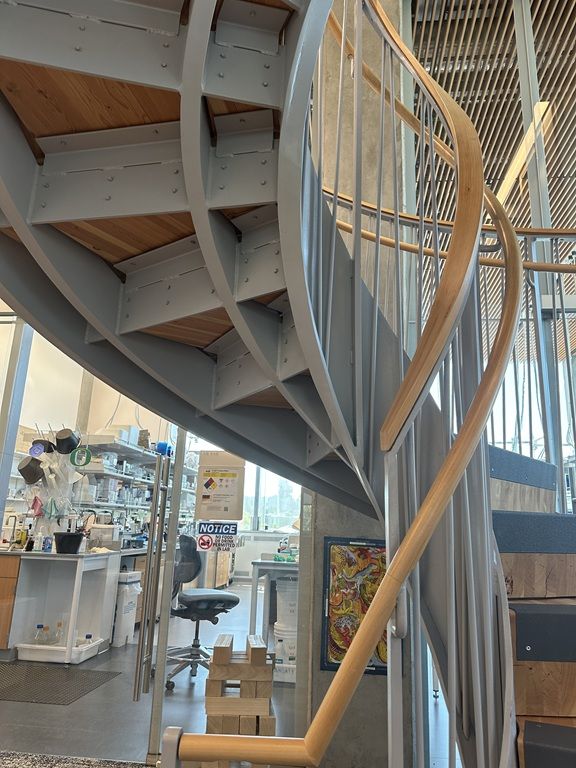

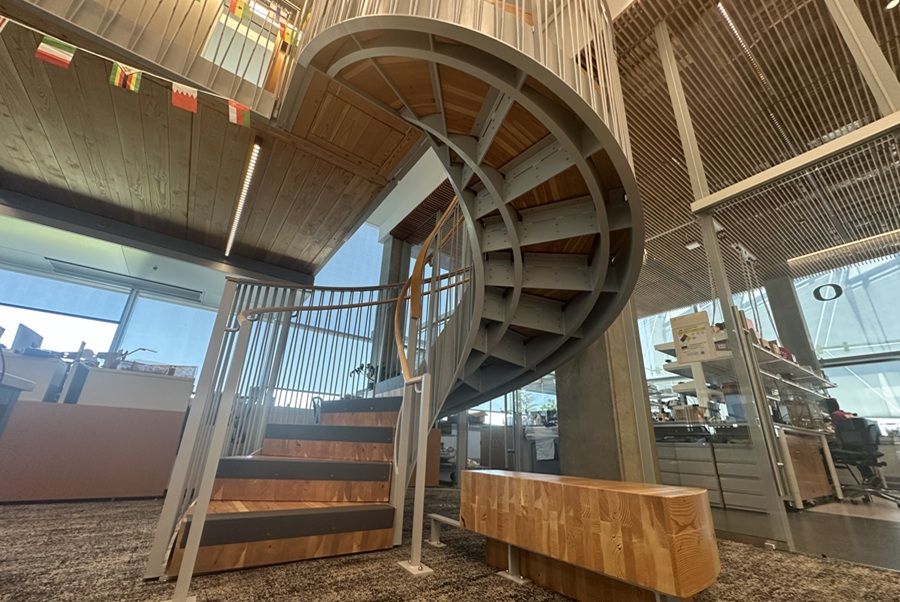

Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon under stair view

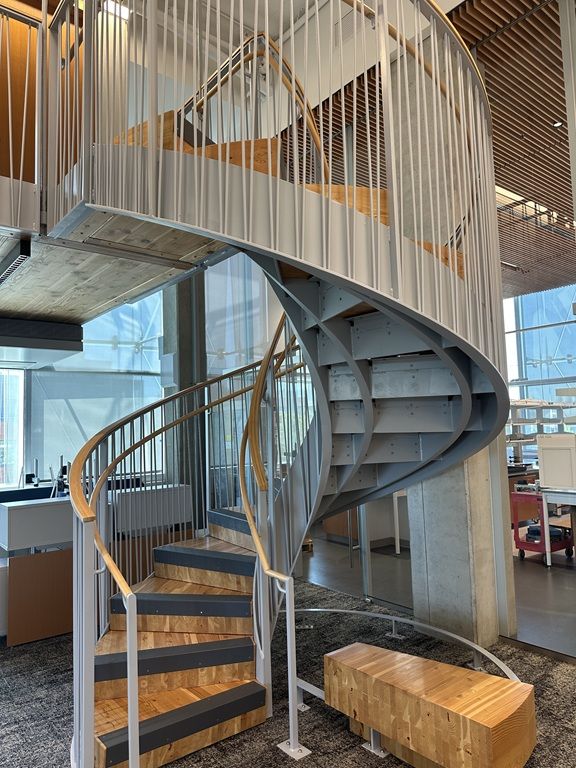

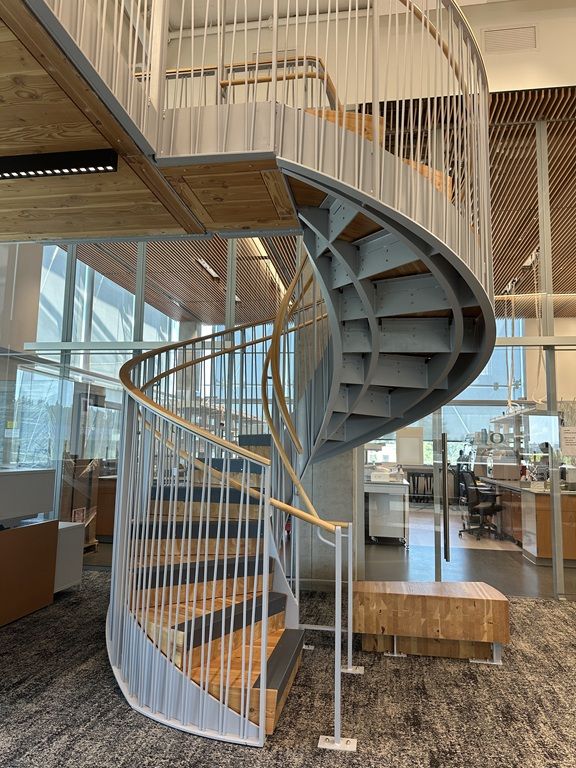

Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon full stair

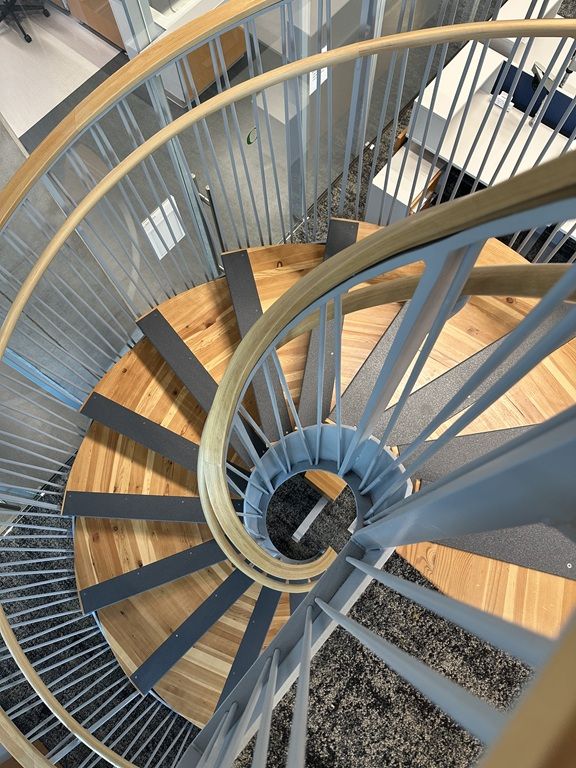

Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon top of stair looking down view

Phil and Penny Knight Campus for Accelerating Scientific Impact at the University of Oregon side view stair

Sandy Springs Veterans Memorial
Sandy Springs Veterans Memorial

Albina was honored to be a part of Curtis Pittman’s “Be the Light” sculpture for the Sandy Springs, Georgia Veterans Memorial. The sculpture stands at 30 feet tall and represents the cities gratitude toward their veterans. The park where the piece is located gives thanks to men and women who served in all branches of the military and hopes to inspire future generations as well. The sculpture also was installed with lights so once it is dark outside, it will glow.

For this project Albina bent 57 different segments of material.

CH 1” X 1” X 1/8” 6063-T52 ALUM
28 pcs bent to customer supplied instructions, radii ranging from 4ft to 16ft.

4” OD X .313” WALL A500B
15 pcs bent to customer supplied instructions, radii ranging from 8 ft to 15 ft.

2½” SCH40 A53B ERW
10 pcs bent to customer supplied instructions, radii ranging from 3 ft to 7 ft.

3” SCH40 A53B ERW
4 pcs bent to customer supplied instructions, radii ranging from 5 ft to 11 ft.

Close up image of top of curved steel sculpture "Be the Light" by Curtis Pittman

Full image of curved steel sculpture "Be the Light" by Curtis Pittman

Construction image of curved steel sculpture "Be the Light" by Curtis Pittman

Night time image with lights and fountain of curved steel sculpture "Be the Light" by Curtis Pittman

Photo Credit to Curtis Pittman (www.curtpittman.net)
Additional information from (https://www.sandyspringsga.gov/news/city-invites-community-honor-veterans
