Our new plate roll is busy and we have some great projects on the machine right now. We are in the process of bending material for some custom tanks made out of Nickel material. This project consists of various tanks rolled to different diameters. All material is Nickel 201 ranging in thickness from 3/16” to 3/8”. The plate sections are up to 72” long prior to rolling. Diameters we are rolling to range from 57” to 107”. In addition to the tanks we are proving the cooling tubes as well. Cooling tubes are bent out of 1” Sch40 Nickel 201 (with terminals) to match the diameter of the tanks. Needless to say, this is a fun and challenging project!

Albina Co., Inc. is not just a structural steel bending shop! Some of our biggest customers are manufacturing companies that require bent material and repeat jobs of small parts. We recently finished a project that required some complex tube bends on our CNC draw bending equipment out of the following materials: 136 pieces of 1" OD X .065" WALL T304 S/S bent to a 2½” center-line radius. 136 pieces of Tube Steel 1" X 1" X .083" WALL T304 S/S bent to a 3½” inside radius. 68 pieces of ½" OD X .049" WALL T304 S/S bent to a ½” center-line radius. All parts were cut, bent, washed and packaged by Albina Co., Inc. for shipment. Prior to shipping all parts needed to be free of dirt, debris and oil.

Albina is your steel bending expert for large material as well as small material! We just finished a project that required 650 safety bollards. Bollards are thick, low posts, usually made of iron or steel for the purpose of diverting traffic from an area or road and also often used on a wharf for fastening mooring lines. This particular project was used for auto traffic diversion and the bollards were constructed out of 2" SCH40 A53B ERW BARE, bent to a 6” center-line-radius x 180 degrees. We produce custom bollards for urban traffic and vehicle control, for fastening mooring lines, as barriers and barricades, for pedestrian security, for ornamental landscape structures and for unique bike rack solutions.

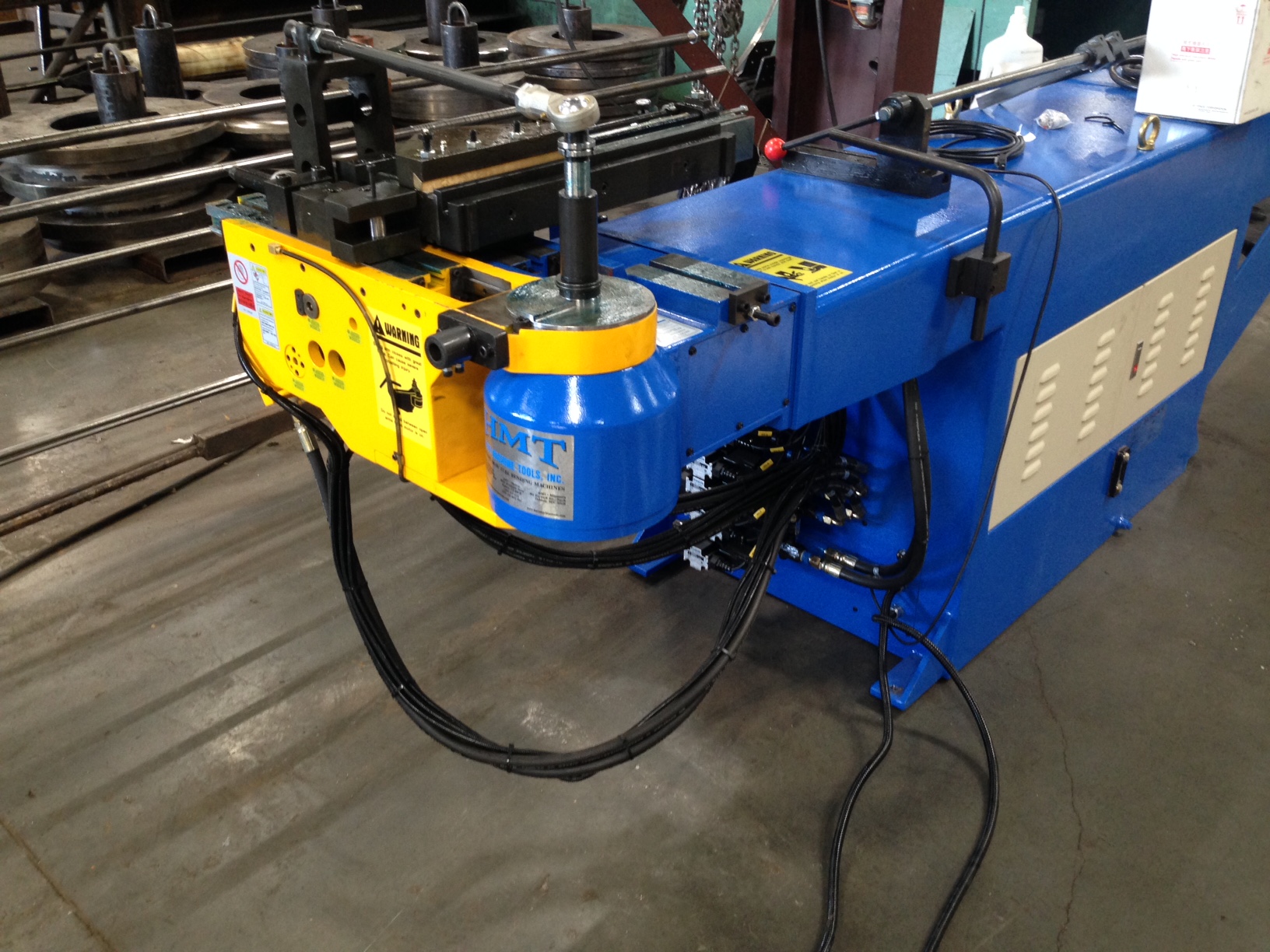

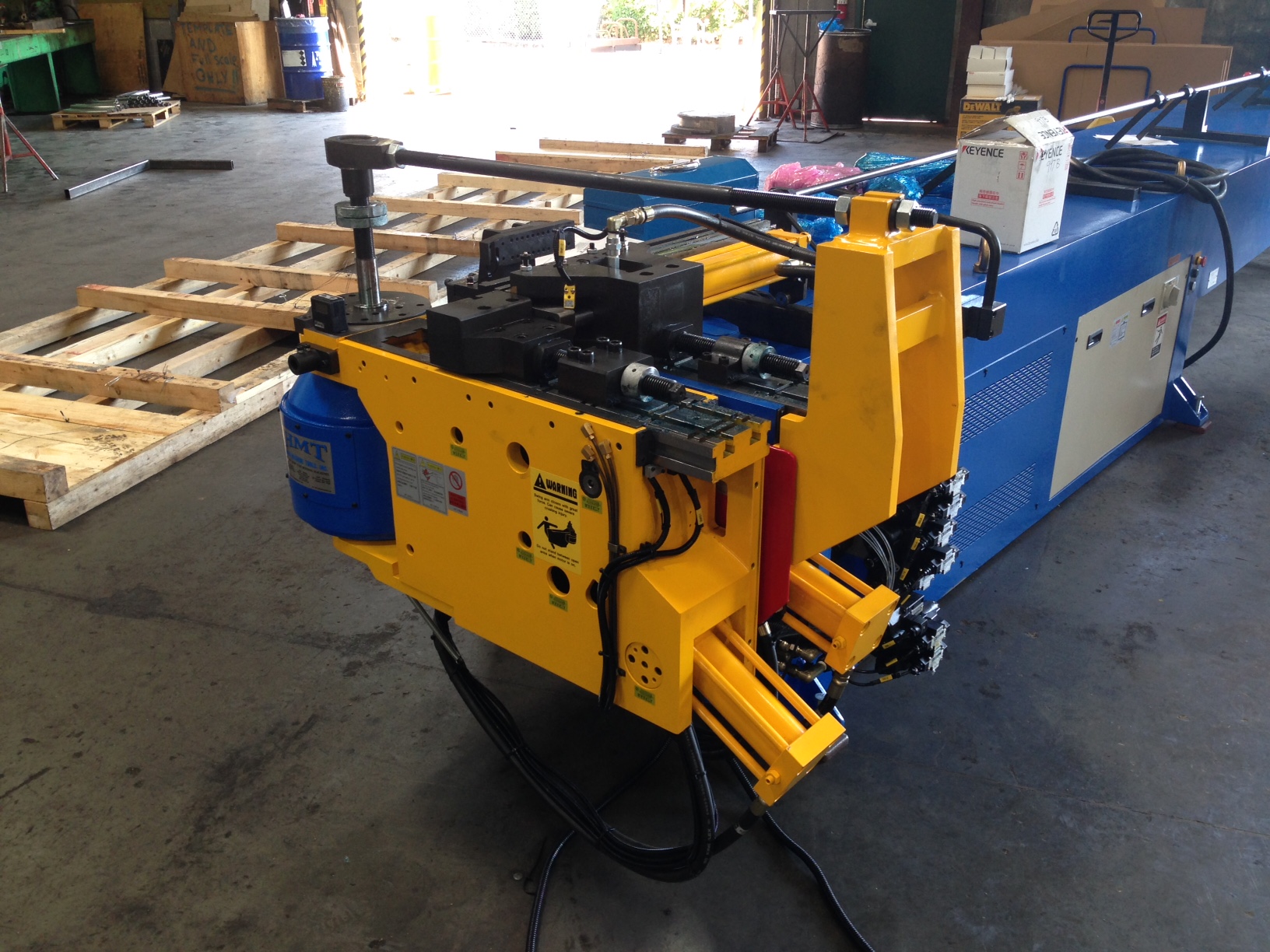

Our capacities keep on expanding with the arrival of two new machines! We just received new 2" and 3-1/2 capacity draw bending machines. Rotary draw, or compression bending occurs when material is bent by rotating it around a bend die (and typically pulled or pushed over mandrel rod). A bend die is formed to fit a specific material size/type and at a specific diameter to fit the bend requirements. The material to be bent is clamped to the bend die and then is drawn, or pulled, around the bend die until the desired degree of bend is met. This method produces clean, tight radii bends and is mainly used by manufacturers or industrial companies. [caption id="attachment_1358" align="aligncenter" width="1632"] 2" Rotary Draw Bender[/caption] [caption id="attachment_1356" align="aligncenter" width="1632"] 3-1/2" Rotary Draw Bender[/caption]

Albina has finished the steel bending for the new LAX Midfield Satellite Concourse North Project. This project was part of an estimated $1.2 billion dollar modernization program at Los Angeles International Airport. Albina partnered with Schuff Steel and we bent over 1.2 million pounds of curved HSS (Hallow Structural Steel) as well as structural steel members for the project. This project consisted of various structural shapes and sizes and resulted in 0% rework. The steel bending was done over 7 months and we were able to meet or exceed all of our customers scheduling requirements. The satellite concourse will be a remote facility initially served by an airport busing operation and a passenger access tunnel (PAX) connection to the Bradley West Terminal. The new MSC will permit greater flexibility in scheduling improvements at other facilities, reduce reliance on remote gates, and ensure a high level of service for LAX passengers. [caption id="attachment_1352" align="aligncenter" width="1311"] Bent HSS (Hallow Structural Steel) For LAX Midfield Satellite Concourse North Project[/caption]

Albina really enjoyed seeing some of our valued customers at the NASCC trade show earlier in 2017. After the show Albina was asked to spiral bend some TS 20" X 4" X .500" WALL A500 GR B material! This very difficult material was successfully bent by Albina to a varying pitch over the entire length. This bending project was for the Cambridge North Bridge at the University of Kansas. This particular customer is located in Kansas. They know, if you want it done right, you call Albina. No matter how far away they are located.
