Blog posts tagged with 'off-axis steel bending'

"Daunting Curves Ahead"- Article in O & M Metal Fabricator
"Daunting Curves Ahead"- Article in O & M Metal Fabricator

A recent issue of O & M Metal Fabricator Magazine, produced by NOMMA, features a case study written by Jeff Fogel with input from key members of the Albina Team, on the great spiraling feat it took to create the spectacular spiral staircase at the American Airlines Headquarters in Fort Worth, Texas.

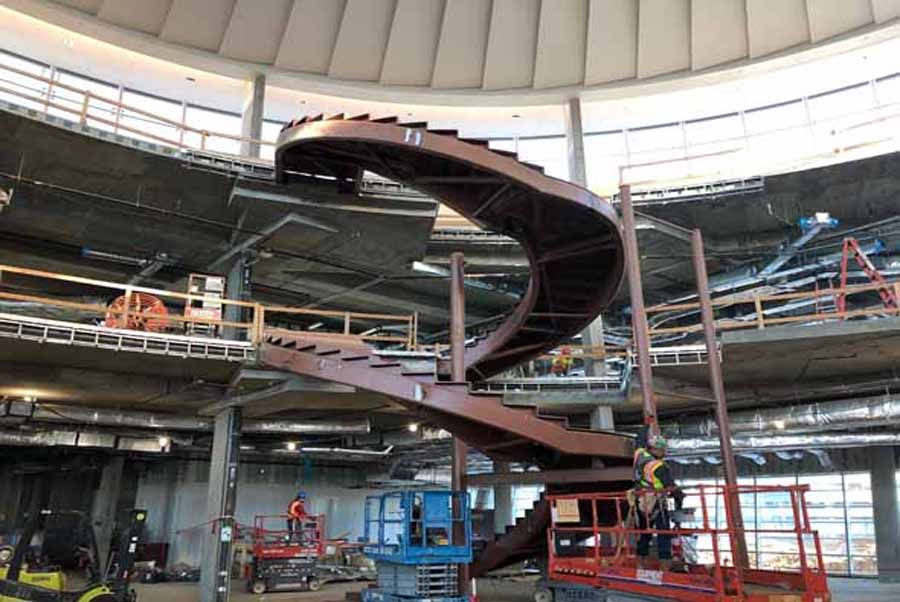

We spiral bent Tube Steel 16″ X 16″ X .625″ WALL A500 GR B bent down to a an 18 foot radius, using our induction heating process to create the spiral stringers for the staircase. In addition to the 16″ square, we produced another set of spiral stringers consisting of Tube Steel 14″ x 6″ x .625″ wall REALLY tight, exposed and bent to a 5′-6″ radius on a 45° pitch. These are the type of bends that ONLY Albina can do! The 1.7 million-square-foot complex, dubbed the “Trinity complex,” consists of four seven-story buildings. It cost nearly $300 million to build and houses over 6,500 employees. There were 10 tower cranes on the project and more than 1,000 construction workers on-site during the peak of the project. Viva Railings LLC (Photo credit & Glass/Railing Fabricator). Read “Daunting Curves Ahead"



American Airlines Headquarters Steel Spiral Staircase



Steel Spiral Staircase in the Lobby of the American Airlines Headquarters
Signature Spiral Staircase at the Buddy Holly Hall of Arts & Sciences
Signature Spiral Staircase at the Buddy Holly Hall of Arts & Sciences

The Buddy Holly Hall of Performing Arts and Science in Lubbock, Texas is a 220,000 square foot state-of-the-art campus featuring two theaters, event space, a full-service bistro and a ballet academy under one roof. Albina bent various materials for the signature spiral staircase in the Christine DeVitt Lobby. See LINK IN OUR BIO to get a sneak peek inside!



TS 16" X 8" X .625" WALL A500 GR C
16 pcs: Spiral bend the easy way
Bent down to a 7 ft plan view radius.



TS 10" X 6" X .625" WALL A500 GR C
10 pcs: Spiral bend the hard way
Bend down to a 14' 11" plan view radius.





Steel Spiral Stringers for The Buddy Holly Hall of Arts & Sciences



Top Down view of the Steel Spiral Staircase at The Buddy Holly Hall of Arts & Sciences
Custom Spiral Staircase Constructed of Rolled Steel Plate and Steel Tubing
Custom Spiral Staircase Constructed of Rolled Steel Plate and Steel Tubing

Albina Co., Inc. recently rolled several materials for a custom spiral staircase. Materials bent by Albina Co., Inc. include:
PL ¾" X 14" A36- spiral rolled to a 5’ 3” plan view radius and a 9’ 3” plan view radius.
PL ¾" x 4" A36- spiral rolled to a 5’ 3” plan view radius.
PL ¾" X 8" A36- spiral rolled to a 5’ 3” plan view radius.
1½" OD X .120" WALL HREW: Rolled to a 8’ 11” plan view radius.



Rolled Steel Plate Spiral Staircase



Custom Steel Spiral Staircase



Steel Spiral Staircase made of rolled plate and rolled tubing
Curved Steel Bent to a Complicated "S" Configuration for Simon Fraser University
Albina Co., Inc. recently bent 90 pieces of Tube Steel 8" X 4" X .375" WALL A500 GR C the hardway to a complicated “S” configuration. The tightest “S” section that we bent was down to a 59” radius. All of the material was bent cold on our profile rolling equipment. This steel was shipping to a good customer in Canada to be fabricated and then installed at Simon Fraser University.
Efficient Bending of HSS for Jan Shrem and Maria Manetti Shrem Museum of Art at the University of California, Davis
Modern Steel recently interviewed our very own General Manager, Mark King, to help construct the recently published article "Above all, ART" that highlights the precise structural design and inspiring architecture of the Jan Shrem and Maria Manetti Shrem Museum of Art at the University of California, Davis. As a bender/roller, we were involved early enough in the process that we were able to reduce complicated curves, simplify the steel bending and reduce significant costs. The canopy consisted of HSS 14" x 10" rectangular tubing bent in multiple planes (both the easy way and the hard way). An important highlight of the project was that some of the material that was bent in multiple planes was rotated off-axis by a slight amount, and the radius was large enough, that we were able to bend it cold, which is a faster process than hot bending. [caption id="attachment_1091" align="aligncenter" width="1200"]Curved Steel Roof UC Davis 50,000 Square Foot Permeable Roof[/caption] [caption id="attachment_1092" align="aligncenter" width="1200"]Curved Steel Roof UC Davis Curved Steel Entry [/caption] [caption id="attachment_1093" align="aligncenter" width="1200"]Curved Steel Roof UC Davis Overview of Curved Roof Structure[/caption]
Link to Article: Amazon Curved Steel Bio-Sphere Buildings Help Make Seattle America's Biggest "Company Town"
Albina Co., Inc. was the bender/roller for the Amazon Curved Steel Bio-Sphere buildings in Seattle, WA. Albina bent 750,000# and 1,050 pieces rectangular tube steel bent the easy way and a portion bent off-axis. Almost 8 miles of welding work and grinding was avoided because of Albina’s ability to bend a portion of the project. Almost NO correction was needed during fabrication or erection as the bends fit to the fixtures within 1/32nd of an inch! See the most recent article published in the Seattle Times.
Updated Pictures of Curved Rectangular Tube Steel "Spheres" Covered in Glass
See below for the most recent pictures of the curved steel "Spheres" in Seattle, WA. 750,000# and 1,050 pieces rectangular tube steel bent the easy way and a portion bent off-axis. Almost 8 miles of welding work and grinding was avoided because of Albina's ability to bend a portion of the project. Almost NO correction was needed during fabrication or erection as the bends fit to the fixtures within 1/32nd of an inch! [caption id="attachment_1208" align="aligncenter" width="300"]Curved Steel Bio-Spheres Covered in Glass Curved Steel Bio-Spheres Covered in Glass[/caption] [caption id="attachment_1209" align="aligncenter" width="300"]Curved Steel Bio-Spheres Covered in Glass Curved Steel Bio-Spheres Covered in Glass[/caption] [caption id="attachment_1210" align="aligncenter" width="220"]Curved Steel Bio-Spheres Covered in Glass Curved Steel Bio-Spheres Covered in Glass[/caption]
