Blog posts tagged with 'Bending Beam the Hardway'

Photo Credit: @haleyhillphotography

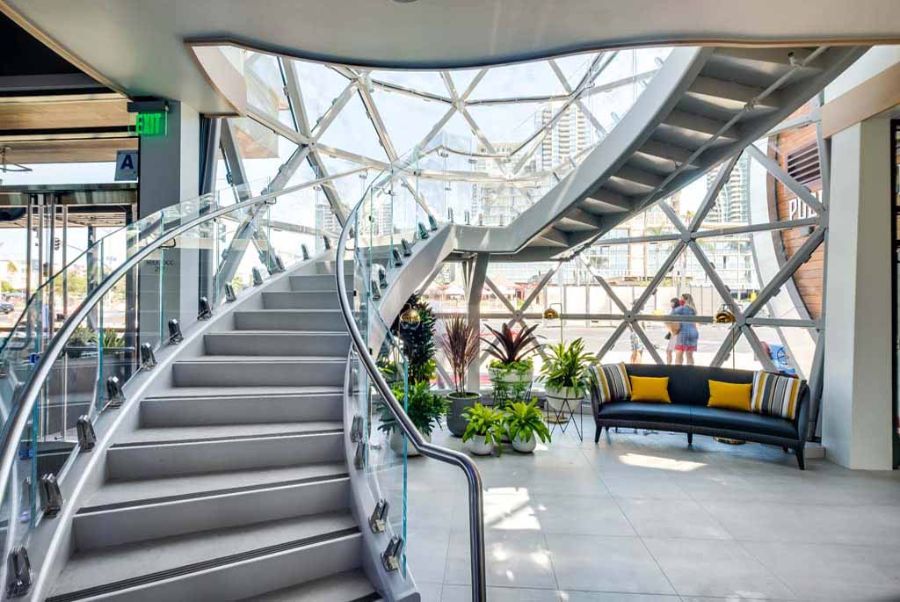

One of Southern California's iconic, flagship waterfront restaurant sites - 1360 North Harbor Drive along the North Embarcadero, is getting a facelift! The Port of San Diego and The Brigantine, Inc. began construction in July 2018 to redevelop Portside Pier including introducing four new dining concepts and enhancing the panoramic views of San Diego Bay for daily visitors. Albina Co., Inc. provided 60,000 pounds of various bent materials for the unique curved roof structure as well as for a signature spiral staircase that leads from the dock to the second floor public walkway and viewing deck.
Materials bent by Albina Co., Inc. included:
TS 14" X 6" X .500" WALL A500 GR B (6 pieces spiral bent the easy way as tight as a 17 ft plan view radius, 4 pieces bent the easy way as tight as a 17 ft inside radius.)
TS 12" X 6" X .500" WALL A500 GR B (8 pieces bent the easy way as tight as a 2’ 7” outside radius, 8 pieces spiral bent the easy way as tight as a 2’ 7” plan view radius.)
TS 8" X 8" X .500" WALL A500 GR B (84 pieces bent to various radii and configurations.)
TS 18" X 6" X .375" WALL A500 GR B (4 pcs bent the hard way.)
W10 X 12# A992 (9 pcs bent the hard way.)
W18 X 35# A992 (15 pcs bent the hard way.)
W16 X 26# A992 (2 pcs bent the hard way.)
W14 X 22# A992 (13 pcs bent the hard way.) Photo Credit: Encore Steel

Albina bent 40,000# of steel for the Freyer-Newman Center, home to Denvers’ Botanical Gardens. Albina bent 60 pieces of W8 X 31# A992 the hard way to a full scale layout. We also bent Tube Steel 8" X 6" X .500" WALL A500 GR B the hard way and MC8 X 20# A36 the hard way. The Freyer - Newman Center is a LEED GOLD building, designed by Denver’s Davis Partnership Architects. The Center will house six classrooms; four galleries; new herbaria for vascular plants, mushrooms and slime molds; laboratories; a new library and a coffee shop, and is slated for completion this spring. Final install pictures coming soon!

One of Southern California's iconic, flagship waterfront restaurant sites - 1360 North Harbor Drive along the North Embarcadero, is getting a facelift! The Port of San Diego and The Brigantine, Inc. began construction in July 2018 to redevelop Portside Pier including introducing four new dining concepts and enhancing the panoramic views of San Diego Bay for daily visitors. Albina Co., Inc. provided 60,000 pounds of various bent materials for the unique curved roof structure as well as for two signature spiral staircases that leads from the dock to the second floor public walkway and viewing deck.

Materials bent by Albina Co., Inc. included:
TS 14" X 6" X .500" WALL A500 GR B (6 pieces spiral bent the easy way as tight as a 17 ft plan view radius, 4 pieces bent the easy way as tight as a 17 ft inside radius).
TS 12" X 6" X .500" WALL A500 GR B (8 pieces bent the easy way as tight as a 2’ 7” outside radius, 8 pieces spiral bent the easy way as tight as a 2’ 7” plan view radius).
TS 8" X 8" X .500" WALL A500 GR B (84 pieces bent to various radii and configurations).
TS 18" X 6" X .375" WALL A500 GR B (4 pieces bent the hard way).
W10 X 12# A992 (9 pieces bent the hard way).
W18 X 35# A992 (15 pieces bent the hard way).
W16 X 26# A992 (2 pieces bent the hard way).
W14 X 22# A992 (13 pieces bent the hard way).

Albina bent 55,000# of wide flange W24 X 76# A992, W30 X 108# A992, W36 X 135# A992, W36 X 170# A992 for the Murray Park Amphitheater in Salt Lake City, Utah. Over a planning period that lasted several years, the city received input from patrons and citizens that focused on the needs and wants for improvements to the amphitheater. The largest improvement to the amphitheater was a curved steel roof over the stage and orchestra pit. “In the summer, we have microburst storms that roll in at around three or four in the afternoon and rain out events,” Sorenson said. “The stage can also get very hot, which limits what you can do in the afternoon. If we had a roof, we wouldn’t have to cancel. It would allow us to keep events running.” One of Albina Co., Inc.'s slogans over the years is "We've Got You Covered" and in this instance, we truly did! The wide flange was all bent the hardway to a radii range of approx. 90 ft – 100 ft. and it was all bending to AESS (Architecturally Exposed Structural Steel Standards).

$11 million Carmel, California 'Serenity' house for sale! Back in 2012, Albina bent wide flange W12 x 30#, W12 x 26# and W12 x 50# to help create the amazing exterior of this home. We bent 42 pieces the hardway to various radii as tight as 116 feet. The 2667 square foot home sits atop a cliff in Carmel, in central California. The exterior takes inspiration for its curves from the butterfly. The curved steel of the exterior has a unique effect on the interior spaces, making for interesting corridors and seating areas. I have several images of the project in process below, and I am working on securing the listing images and will post them as soon as I can. Until then, click on the following link to enjoy looking at the stunning images of a Butterfly-Inspired House on the California Coast!
