Albina Co. Inc. bent the spiral staircases at the newly renovated Space Needle in Seattle, Washington. The Space Needle's rotating glass floor, dubbed "The Loupe", is located just below the open-air observation deck and Albina Co., Inc. was the steel bender/roller for the custom spiral staircases connecting the two areas. Albina Co., Inc. bent 1" thick x 13 ¼" wide A572 GR 50 to yield three 180" pieces and three 144" pieces of rolled plate and 1" thick x 10-13/16" wide A572 GR 50 to yield one 80" piece of rolled plate. We also bent tube steel 10" x 6" x .625" WALL A500 GR B to a 11’ 6” inside plan view radius (the easy way).

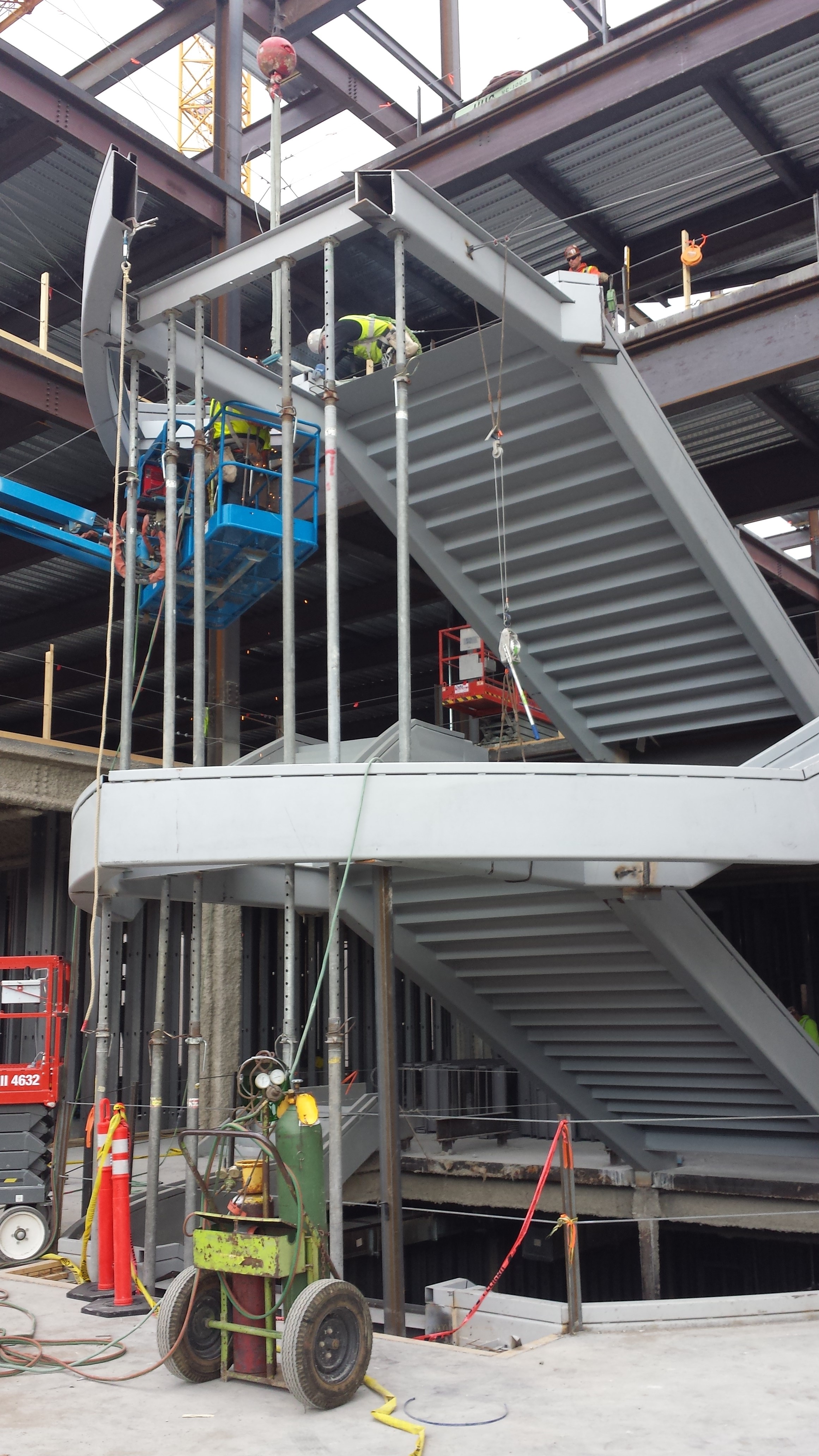

Back in June, I posted a picture of some induction heating process, for the new American Airlines headquarters in Fort Worth, Texas. In addition to the 16" square, we produced another set of

The 1.7 million-square-foot complex, dubbed the “Trinity complex,” consists of constructing four seven-story buildings. It will cost at least $300 million to build and will house over 6,500 employees. There are 10 tower cranes on the project and there will be more than 1,000 construction workers on-site during the peak. It is scheduled to open during the second half of 2019.  These are the type of bends that ONLY Albina can do!

We recently spiral bent tube steel 12" X 8" X .625" WALL A500 GR B Spiral the Easy way to a 173” radius for a customer spiral staircase located in Utah. Square and rectangular tubing is also known as HSS (hollow structural steel). Albina has the ability to bend both square and rectangular tubing. For rectangular tubing we can bend both the easy way (against the weak axis) and the hard way (against the strong axis). We can even provide Multi-Plane bending where we are bending both the easy way AND the hard way. Albina is a unique shop in that we can bend very small square materials such as TS ½” x ½” x .049” wall all of the way up to very large materials such as TS 20” x 12” x .625” wall, which happens to be the largest size that mills produce. Albina actually has a larger capacity than TS 20” x 12” x .625” wall, which means we can bend materials larger then what the mills produce!

We recently spiral rolled 1/2" and 1" plate for a custom spiral staircase in a multi-million dollar luxury home on Green Street in San Francisco, California. We provided the rolled plate for the staircase and then flat plane rolled the plate for the landings. The tightest radius was a 29.75” center line radius.

Albina recently spiral bent several stringers for a state of the art spiral staircase for the Buddy Holly Hall of Performing Arts and Sciences in Lubbock, Texas. The Lubbock Entertainment and Performing Arts Association (LEPAA) has had the vision for this building since 2013 and broke ground just over a year ago in April 2017. The dance center will contain the entire operation of Ballet Lubbock, including six dance studios, parent and community space, production areas and administrative offices and expected to be complete in early 2020. Check out this website for artist renderings of the building and interior features such as the spiral staircase we bent consisting of: TS 16" X 8" X .625" WALL A500 GR C 16 pcs: Spiral bend the easy way Bent down to a 7 ft plan view radius. TS 10" X 6" X .625" WALL A500 GR C 10 pcs: Spiral bend the hard way Bend down to a 14’ 11” plan view radius.
