We have had the pleasure of providing many bent steel pieces for some fabulous projects at the San Diego Zoo including the Hummingbird Habitat, Komodo Kingdom, the Invert Building, the ZPA Catering Building, the Food Services Building, the Raintree Restroom and many more exhibits throughout both the Children’s zoo and the main part of the zoo.

Basher Bridge

24 lengths x 48 ft long of 16" OD x .625" wall

Some rolled to a 20 ft radius.

Some rolled to a 50 ft radius.

Some rolled to a 350 ft radius.

Hummingbird Building

7 Lengths TS 8” x 4” x .375” Wall A500 GR B rolled Hard Way on various Radii from 24’-8” down to 6’-2”

9 Lengths TS 18 x 6” x .500” Wall A500 GR B rolled Easy Way on various Radii from 30’-11” down to 6’-0”

Komodo Exhibit

8 Lengths WT5 X 22.5# A992 Split from W10 x 45# Beam and rolled stem up to various Radii from 46’-2” down to 6’-2”

1 Length TS 3” x 3” x .313” Wall A500 GR B rolled to 13’-4” Radii

2 Lengths 6” OD X .500” Wall A500B rolled to various Radii

3 Lengths 6” OD X .375” Wall A500B rolled to various Radii

1 Length TS 12” x 8” x .500” Wall A500B Induction formed easy way to 4’-4” Radii

3 Lengths TS 3” x 3” x .313” Wall A500B rolled on various Radii from 13’-4” down to 5’-0”

7 Lengths TS 3” x 3” x .375” Wall A500B rolled on various Radii from 7’-10” down to 2’-3”

7 Lengths TS 8” x 4” x .375” Wall A500b rolled hard way on various Radii from 51’-6” down to 6’-8”

6 Lengths TS 18” x 6” x .500” Wall A500B rolled easy way on various Radii from 51’-4” down to 6’-6”

10 Lengths TS 6” x 6” x .500” Wall A500B rolled on various Radii from 56’-0” down to 7’-11”

10 Lengths C9 x 13.4# A36 rolled Flanges out and Flanges in on various Radii from 56’-0” down to 7’-11”

6 Lengths TS 12” x 6” x .500” Wall A500 GR B rolled hard way to various Radii from 46’-4” down to 6’-4”

10 Lengths PL ½" THICK X 12" WIDE A36 rolled hard way to various Radii from 46’-9” down to 5’-9”

Invert Building

7 Lengths TS 10” x 8” x .500” Wall A500 GR B rolled Hard Way on 10’-0” Radius

1 Length C12 x 20.7# A36 rolled flanges out to 17’-1” and 11’-10” Radii

2 Lengths 4” x 4” x 3/8” Angle T304 S/S Rolled Leg in and Leg out to 7’-1” and 7’-3” Radii

1 Length 4” x 3” x 3/8” Angle T304 S/S Rolled Leg out to 3’-11” and 9’-4” Radii

Temperature Exhibit

28 Lengths 5/8” Solid Round A36 Rolled to various Radii from 70’-3” down to 3’-11”

9 Lengths TS 8” x 6” x .375” Wall A500B rolled Easy Way to various Radii from 70’-3” down to 3’-11”

9 Lengths C9 x 13.4# A36 Rolled Flanges in and Flanges out to various Radii from 70’-3” down to 3’-11”

ZPA Catering Building

3 Lengths TS 5” x 4” x .375” Wall A500 GR B rolled easy way to various Radii from 40’-7” down to 11’-7”

3 Lengths C9 x 13.4# A36 rolled flanges out to various Radii from 40’-7” down to 11’-7”

3 Lengths TS 6” x 4” x .25” Wall A500 GR B rolled easy way on various Radii from 40’-7” down to 11’-7”

Food Services Building

6 Lengths TS 6” x 4” x .250” Wall A500B rolled easy way to various Radii from 8’-0” down to 4’-10”

6 Lengths C9 x 13.4# A36 Rolled flanges in and flanges out to various Radii from 8’-0” down to 4’-10”

Raintree Restroom

8 Lengths TS 16” x 12” x .500” Wall A500B rolled hard way to 999’-4” Radii

Bridgeport Village, an upscale outdoor mall in Tigard, Oregon recently underwent a $35 million dollar modernization and now features covered seating areas, a central courtyard area with new landscaping, a performance stage, updated building facades and about 20 new storefronts. Albina Co., Inc. was instrumental in helping the developers update the storefronts and bent various materials including:

2 lengths x 40 ft: W10 X 22# A992
Albina to roll all possible from each length (the easy way) to a 40’-4” centerline radius.

4 pcs of 3” X 3” X ¼” ANGLE A36
Albina to roll all possible from each length (leg in) to a 42’-7” outside radius.

3 lengths x 20 ft: 3” X 2” X ¼” ANGLE A36
Albina to roll all possible from each length (3” Leg in) to a 59’-1” outside radius.

3 lengths x 20 ft: 6” X 4” X 5/16” ANGLE A36
Albina to roll all possible from each length (4” Leg in) to a 59’-1” outside radius.

5 lengths x 20 ft: C10 X 20# A36
Albina to roll all possible from each length (flanges out) to radii ranging from 52’-7” – 59’-1”.

3 lengths x 20 ft: 3” X 2” X ¼” ANGLE A36
Albina to roll all possible from each length (2” Leg in) to a 58’-11” outside radius.

2 lengths x 20 ft: 3” X 3” X ¼” ANGLE A36
Albina to roll all possible from each length (Leg out) to a 52’-7” inside radius.

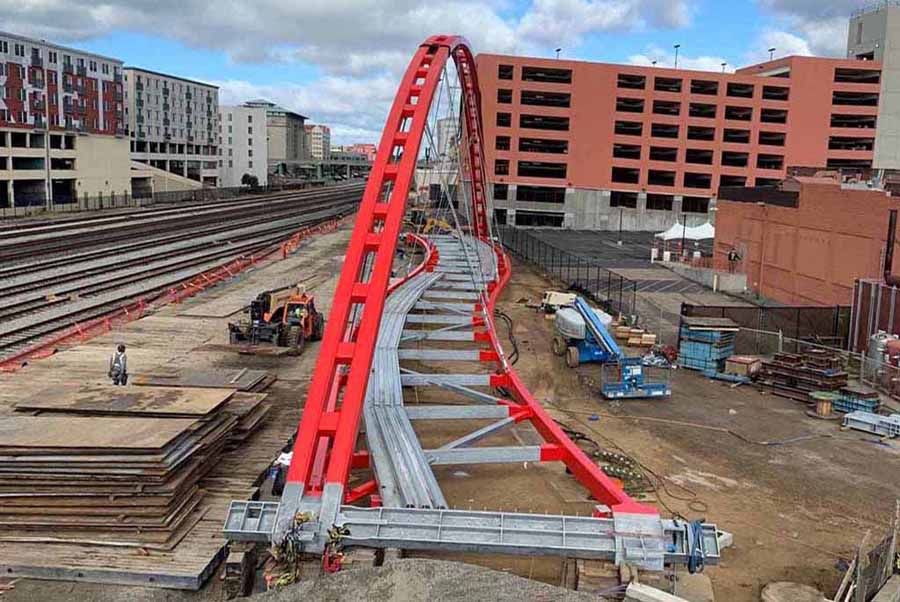

Albina bent 10 lengths of 60-65 foot spans of wide flange W36 X 135# A709-50W the easy way to a radius range of 95 ft – 229 ft, depending on the length and section of the bridge. The Red Electric Bridge, located in Southwest Portland, provides pedestrians and cyclists with a direct, car-free link to the main streets of the area through a forested gulch.

The Architizer A+Awards is the largest awards program focused on promoting and celebrating the year’s best architecture and spaces. The award honors the world's best in buildings and spaces. Hayward Field has received the 2022 Popular Choice Architizer A+ Award in the Stadium and Arena Category.

Albina Co., Inc. “The Front Runner in Steel Bending. We Tower Above the Rest” Albina Co., Inc. was thrilled to be an integral part of reconstructing Hayward Field at the University of Oregon. Hayward Field is the world-class home to @OregonTF. Hayward Field is an Award-Winning Project!

2022 Popular Choice Architizer A+ Award in the Stadium and Arena Category

2021 @archpaper AN Best of Design Award in the Sports and Stadiums Category

Albina created the curved steel diaphragm used to support the roof structure and provided various bent materials to help construct the landmark tower at the northeast corner of the facility as well as the jumbotron. Designers wanted to create a structure that was open and airy, allowing spectators to enjoy great views and natural daylight, in an intimate environment.

Pipe: Hayward Field Roof

We rolled 600 lengths, varying from 28’-0” to 75’-6” long, of 14" OD X .375" / .500 WALL A500-18 GRADE B&C. That is 1,500,000# lot weight (750 tons) of rolled steel, 32 inbound trucks and 90 outbound trucks.

Plate: Hayward Field Roof

The 14” OD material was laid over the top of the plate that we bent for this project. We bent 300 lengths, varying from 3’-0” to 37’-0” long, of PLATE 1½" THICK X 16¾" WIDE A572 GR. 50 and PLATE 1½" THICK X 10" WIDE A572 GR. 50.

Metropolis Magazine Feature Article

University of Oregon Home Page

Construction/Erection Video

In addition, we provided various bent steel parts for general field enhancement and utilities at the newly renovated complex.

Our work was extremely precise, and we had zero rejected parts by the fabricator, Fought & Co., Inc.  In fact, they also informed us that when measuring the work points during fabrication, they never once had to heat up or adjust the bending. To make the erection process go smoothly, we marked every 3-4 feet on the centerline back of the pipe to assist in the layout process for the diagrid “fish-mouth” stubs, and up-stands for the roofing system.

In addition to the iconic roof, the tower at Hayward creates a community landmark honoring the first 100 years of track and field at Oregon.

Hayward Field 187-foot tall Tower

We rolled 400 lengths for Alpha Iron, varying from 20’-0” to 60’-0” long, of Tube Steel 8" X 4" X .500" WALL A500 GR B, 8-5/8" OD X .625" WALL A500C WHEELED, 8-5/8" OD X .375" WALL A500C WHEELED, 8-5/8" OD X .250" WALL A500C WHEELED, and Flat Bar 3/8" X 4½" A36. That is 330,000# lot weight (165 tons) of rolled steel, 10 inbound trucks and 16 outbound trucks!

Hayward Field Jumbotron

Albina bent 101,000# total pounds for this project for Alpha Iron. We bent 43 pieces (20 lens x 50 ft:  10¾" OD X .375" WALL A500 GR. C) to various radii ranging from 5'-3" up to 224'-4" all to AESS standards. We bent 27 pieces (19 lens x 60 ft:  12¾" OD X .375" WALL A500 GR. C) to various radii ranging from 5'-11" up to 208'-8" all to AESS standards. We bent 3 pieces (1 len x 42 ft:  12¾" OD X .500" WALL A500 GR. C) to a 4'-6" radius all to AESS standards.

A project for the record books for sure.

Photo credit Cheryl Sproul, Sophie Biegel and @brooke_smith_photography

Albina Co. Inc. bent the spiral staircases at the newly renovated Space Needle in Seattle, Washington. The Space Needle's rotating glass floor, dubbed "The Loupe", is located just below the open-air observation deck and Albina Co., Inc. was the steel bender/roller for the custom spiral staircases connecting the two areas. The stair centilevers off concealed supports, so the staircase appears to float above the glass floor below thus creating a very unique experience for the visitors.

Albina Co., Inc. bent 1" thick x 13 ¼" wide A572 GR 50 to yield three 180" pieces and three 144" pieces of rolled plate and 1" thick x 10-13/16" wide A572 GR 50 to yield one 80" piece of rolled plate. We also bent tube steel 10" x 6" x .625" WALL A500 GR B to a 11’ 6” inside plan view radius (the easy way).

More detailed information on the project can be found in the May 2022 Issue of Modern Steel.

Albina bent 101,000#’s of steel for structural base of the new jumbotron at Hayward Field at the University of Oregon.

Materials bent included:

20 lens x 50 ft: 10¾" OD X .375" WALL A500 GR. C
Bent 43 pieces to various radii ranging from 5'-3" up to 224'-4" all to AESS standards.

19 lens x 60 ft: 12¾" OD X .375" WALL A500 GR. C
Bent 27 pieces to various radii ranging from 5'-11" up to 208'-8" all to AESS standards.

1 len x 42 ft: 12¾" OD X .500" WALL A500 GR. C
Bent 3 pieces to a 4'-6" radius all to AESS standards.

Photo credit @cheryjsproul and @brookesmithphotography

Restoration Hardware’s newest San Francisco gallery spans all 5 stories of the historic and newly renovated Bethlehem Steel Building and features a gorgeous spiral staircase! You can visit the Bethlehem Steel Building on the corner of Illinois and 20th Street in the Dogpatch. Materials Albina rolled for the spiral staircase included:

20 lengths x 20 ft 1½" OD X .120" WALL HREW
4 pcs spiraled to a 8’-11” radius
4 pcs spiraled to a 4’-5” radius
4 pcs spiraled to a 8’-9” radius
1 pc bent flat to a 4’-5” radius
1 pc bent flat to a 8’-9” radius
1 pc bent to a 10” radius
6 lengths x 20 ft FB ½" X 2" A36
All material was rolled flat to a recalculated radius- customer to pull to pitch.
6 pcs bent to a 4’-1” radius the hardway
20 pcs bent to a 9’-0” radius the hardway
6 lengths x 20 ft C2 X 1 X .188 A36
All material was rolled flat to a recalculated radius- customer to pull to pitch.
6 pcs bent to a 4’-1” radius the hardway
10 pcs bent to a 9’-5” radius the hardway
144 pcs PL ¼" X 1'-2½" A572-50
24 pcs PL ¼" X 2'-4" A572-50
C15 X 33.9# A36
4 pcs bent to a 4’-3” radius the flanges in
5 pcs bent to a 8’-11” radius the flanges out
C12 X 20.7# A36
4 pcs bent to various radii the flanges in
2 pcs bent to various radii the flanges out

The Buddy Holly Hall of Performing Arts and Science in Lubbock, Texas is a 220,000 square foot state-of-the-art campus featuring two theaters, event space, a full-service bistro and a ballet academy under one roof. Albina bent various materials for the signature spiral staircase in the Christine DeVitt Lobby. See the video below to get a sneak peek inside!

The projects is featured in the May edition of Modern Steel Construction. For more details on the entire project and to see a full list of winners check out AISC's website.

TS 16" X 8" X .625" WALL A500 GR C
16 pcs: Spiral bend the easy way
Bent down to a 7 ft plan view radius.

TS 10" X 6" X .625" WALL A500 GR C
10 pcs: Spiral bend the hard way
Bend down to a 14' 11" plan view radius.

Albina bent 40,000# of steel for the steel tree-like columns and curved “steel” branches that create the biophilic-inspired archway entrance for the Freyer-Newman Center at the Denver Botanical Gardens. Albina bent 60 pieces of W8 X 31# A992 the hard way to a full scale layout. We also bent Tube Steel 8" X 6" X .500" WALL A500 GR B the hard way and MC8 X 20# A36 the hard way. The Freyer - Newman Center is a LEED GOLD building, designed by Denver’s Davis Partnership Architects. The Center houses six classrooms; four galleries; new herbaria for vascular plants, mushrooms and slime molds; laboratories; a new library and a coffee shop.

The project was featured in the April Issue of Modern Steel.

"Bird of Paradise", a curved steel sculpture is located at Carrollwood Village Park in Tampa, Florida.

Artist @curt_pittman (www.curtpittman.net)

Materials bent by Albina included:
5 lens x 21 ft: 3" SCH80 A53B ERW. All material rolled by Albina to various radii, arc lengths and configurations.

2 lengths: 4" SCH80 A53B ERW. All material rolled by Albina to various radii, arc lengths and configurations.

2 lens x 20 ft: 1¼" X 1¼" X 1/8" ANGLE A36. All material rolled leg out by Albina to various radii, arc lengths and configurations.

Photo Credit: @curt_pittman
