Curved Steel for the Philadelphia Museum of Art Skylights Project

We currently have a job in progress that involves bending tube steel and doing some very complex end coping on the material for some custom skylights at the Philadelphia Museum of Art. The coped ends are VERY complex. Every machine shop we contacted to cope these ends and slot these ends all declined. With all of our technical expertise, we figured out how to do the ends in-house. It is the most complex end details we have ever worked with. Albina is bending, trimming, slotting and miter cutting 150 pieces of TS 5″ X 3″ X .375″ WALL A500 GR B and TS 4″ X 3″ X .375″ WALL A500 GR B per drawings down to a 4’8″ radius. Our customer will do the remainder of the fabrication. Stay tuned for more pictures as we near completion of the job!

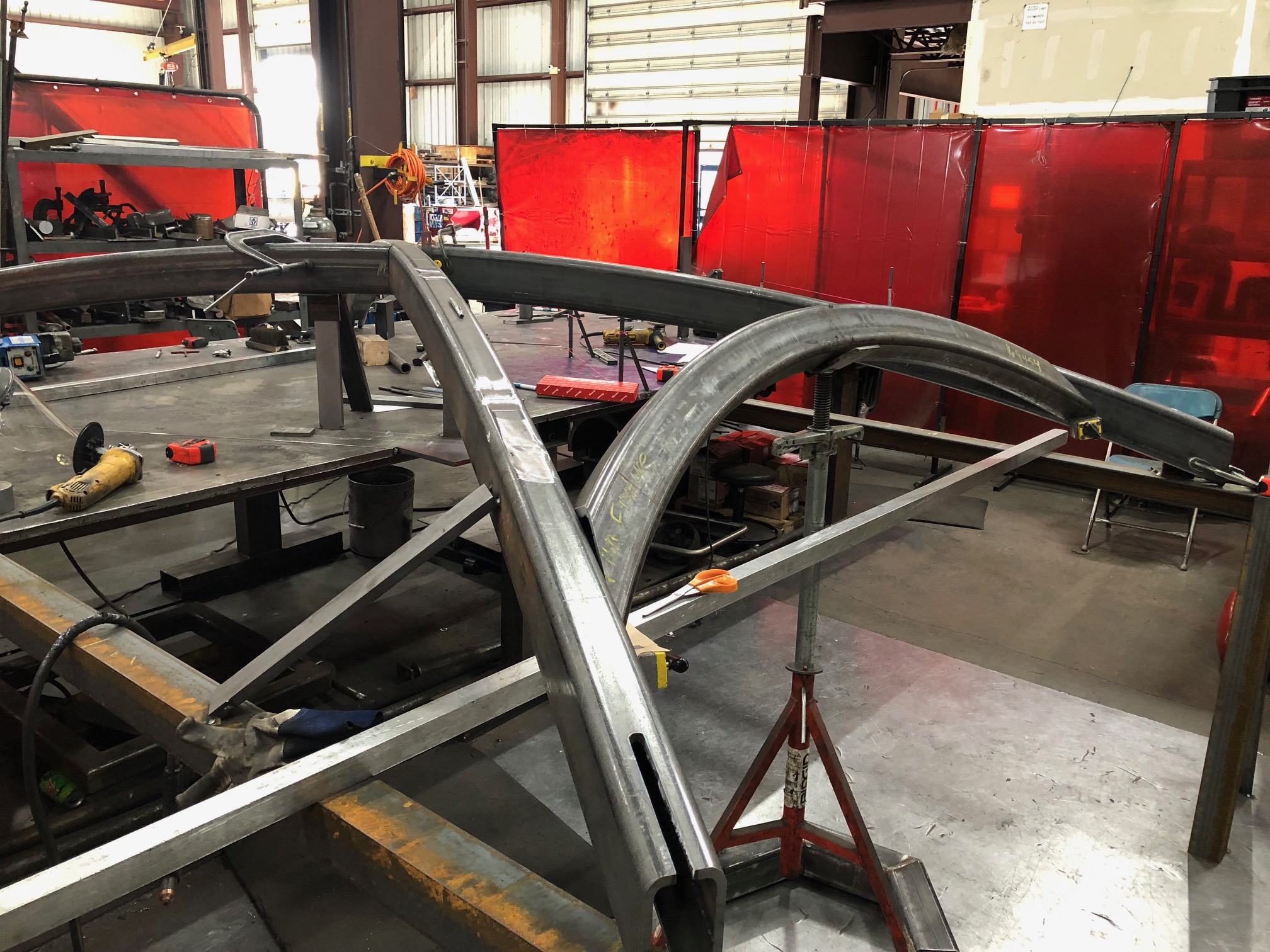

Curved Steel for Skylights at Philadelphia Museum of Art-2

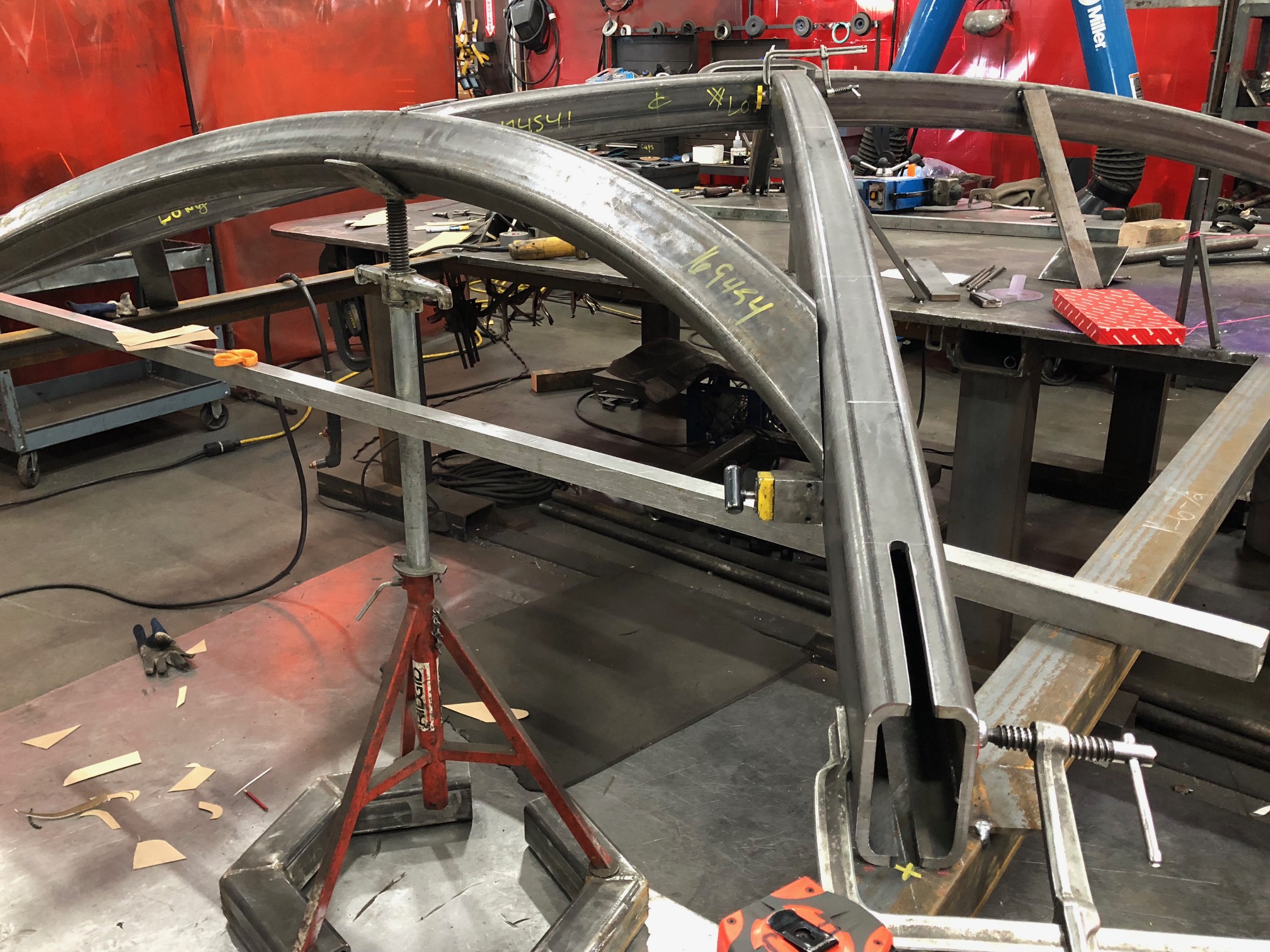

Curved Steel for Skylights at Philadelphia Museum of Art-3

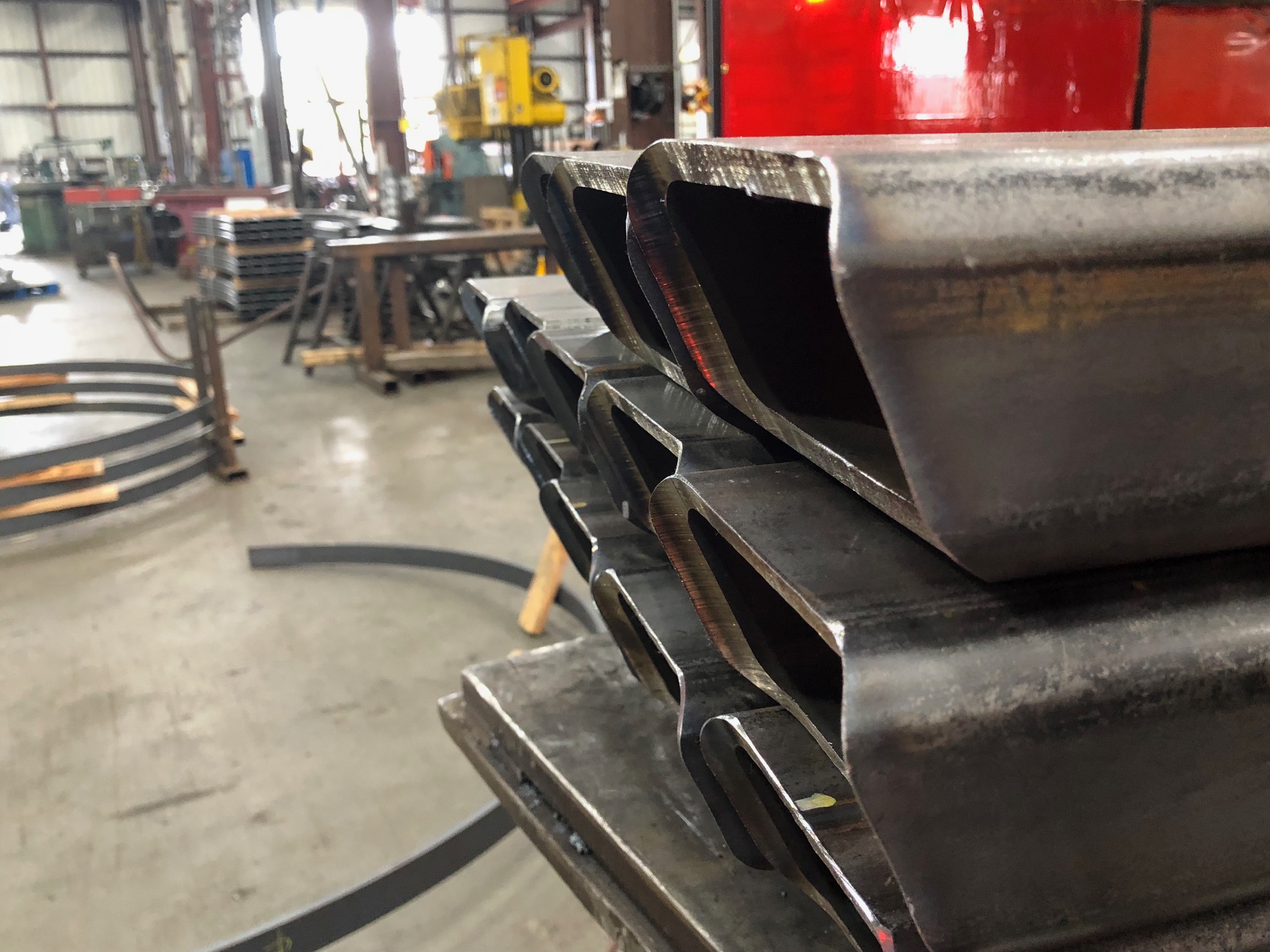

Curved Steel for Skylights at Philadelphia Museum of Art-1

Curved Steel for Skylights at Philadelphia Museum of Art-4
